Stainless Steel Free Running Screw Thread Coils

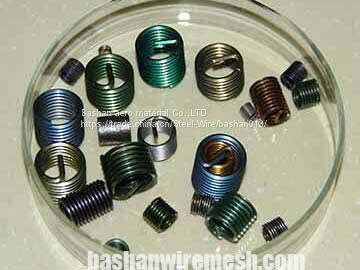

Stainless Steel Free Running Screw Thread Coils photo-1

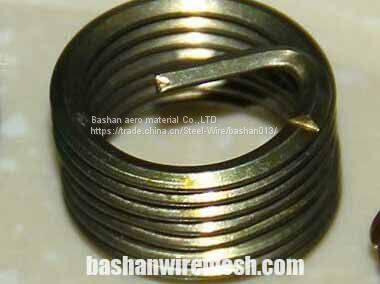

Stainless Steel Free Running Screw Thread Coils photo-2
Stainless Steel Free Running Screw Thread Coils photo-3
Stainless Steel Free Running Screw Thread Coils photo-4
US$ 0.05 - 0.06 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
M10x1.25
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing Qingdao
Delivery Detail:
7 days
Brand Name bashan
Place of Origin China
Model Number M10x1.25
 Description

 Stainless Steel Free Running screw thread coils

Stainless Steel Free Running screw thread coils
Model Number
M10x1.25
Color
original/red/yellow/green
Material/
stainless steel, alloy
Diameter
10.3
Weight/1000ps
1.75KG,3.05KG,4.36KG,5.66KG,7.00KG
Port
exw, tianjin,shanghai
Coating
Ag,Cr
Type
free runing  insert
Used
Building, Automobile Industry, Furniture, Sanitary, Electronics, Traffic.
Material
Grade
Temperature Under Used
Tensile Strength Under Room Temperature
Surface
Stainless Steel
0Cr18Ni9
425°C
short time
315°C
long time
>1400Mpa
No coated
Coat lubricant on the surface
Coat Cr
Coat Ag
1Cr18Ni9Ti
1Cr18Ni9
Alloy
Inconelx750

Nimonic90
750°C
short time
550°C
long time
>1400Mpa
No coated
Coat Ag

Specification

 Stainless Steel Free Running screw thread coils

Specification
d×p
Nominal length
L×d
W
Dz
d0
d
p
×d
L1
min
max
10
     1.25
1d
10.0
6.0
12.10
12.50
10.3
1.5d
15.0
9.7
2d
20.0
13.1
2.5d
25.0
16.9
3.0d
30.0
20.1 Stainless Steel Free Running screw thread coil

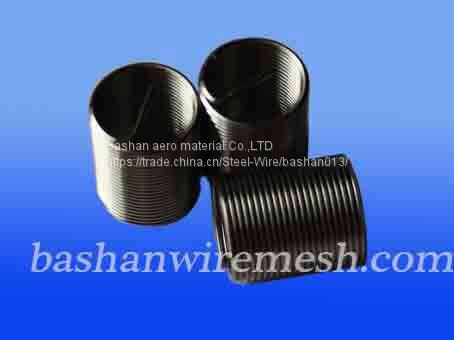

Product show

Having more than 50 years of experiences in this field, and with background of military technology.

 We can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard.

There are two forms: free-run type and screw-locking type.

 Installation Steps

 Stainless Steel Free Running screw thread coil

1.drilling                      2.tapping                     3.put thread in wrench                  4.installing

5.breaking                   6.finished                    7.putting bolt in

Produce progress

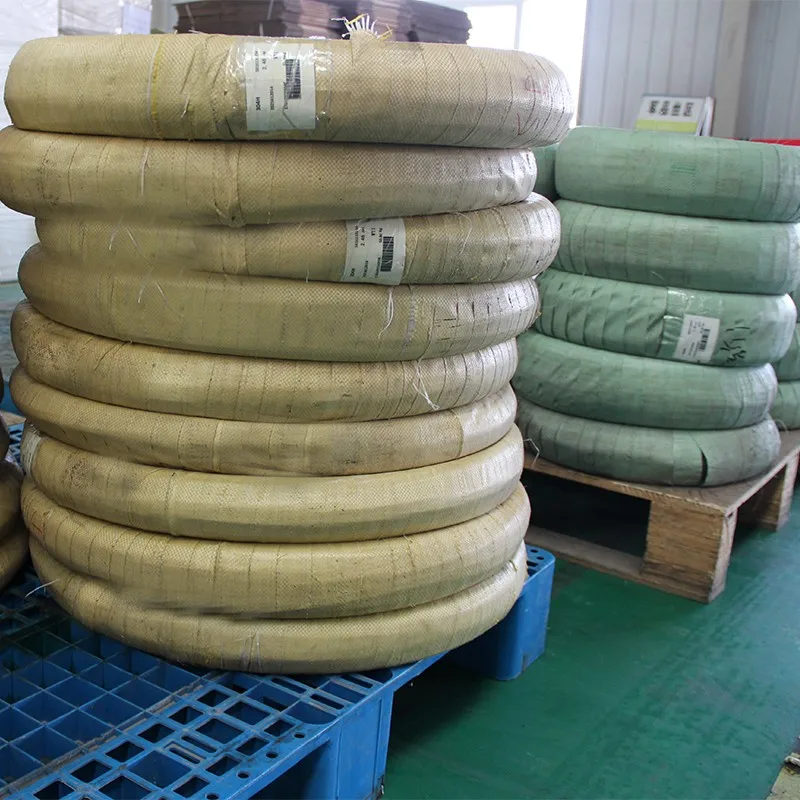

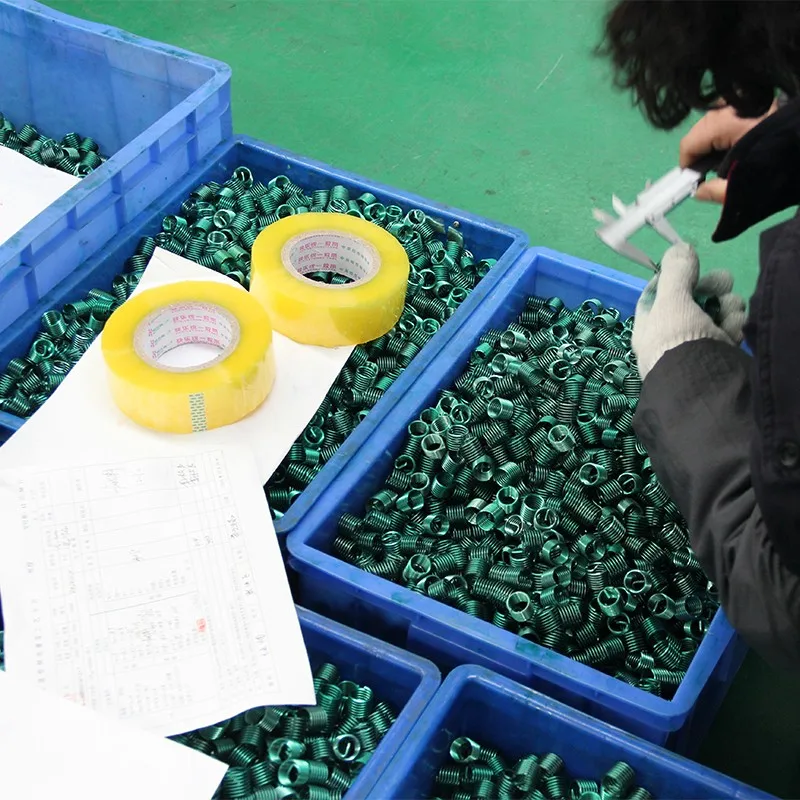

1.Rolling wire           2.Winding             3.clean             4.quality  control              5.packing

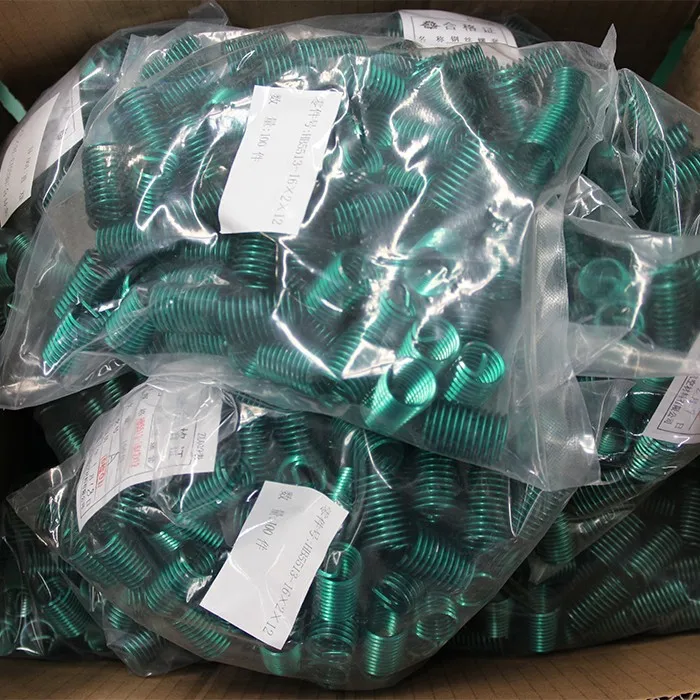

Packing Details

*   Inner: Plastic bag

     Out: Carton
*  Pallet / Wooden Crate.

Delivery
 Stainless Steel Free Running screw thread coil
International Market

 Stainless Steel Free Running screw thread coils


Company

Xinxiang Bashan Aero Material Co., Ltd.

In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
