200mm Woven Wire Mesh Lab Test Sieve

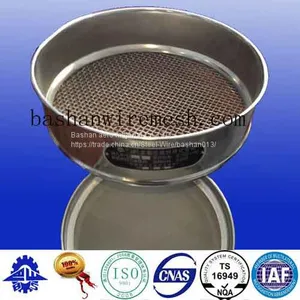

200mm Woven Wire Mesh Lab Test Sieve thumbnail-1
200mm Woven Wire Mesh Lab Test Sieve thumbnail-2

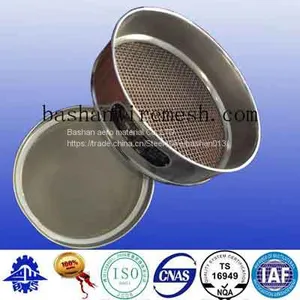

200mm Woven Wire Mesh Lab Test Sieve thumbnail-3
200mm Woven Wire Mesh Lab Test Sieve photo-1
200mm Woven Wire Mesh Lab Test Sieve photo-2
200mm Woven Wire Mesh Lab Test Sieve photo-3
US$ 10 - 14 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
200mm
Contact Supplier Request Quote Chat Now
Bashan Aero Material Co.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing Qingdao
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name bashan
Place of Origin China
Model Number 200mm

Product Detail


Model No.:200mm
Production Capacity:100000000
Delivery Date:within7days
Power:Electronic
Certificate:ISO9001
Type:Metal Square Wire Mesh
Aperture size:2360 - 20 micron
Function:Particle Size Analysis
Means of Transport:Ocean,Land,Air
Packing:inner pack:plasticeouter:ca...
Usage:Vibration Testing Machine
Brand Name:bashan
Standard:ISO3310
Weave Style:Plain Weave
Height:Full or Half /1" or 2"

Frame materials:Stainless steel or brass
Test Material:stainless steel 304

Sieve Description

Electric Lab Standard Laboratory Shaker SS Wire Mesh Test Sieve

Manufactured in conformance to ASTM E-11 / ISO3310
 * Available in Full and Half heights sizes.
* Manufactured in stainless/stainless construction.
* Depth to Cloth - Full: 2"; Half: 1".
* International Standard Size with metric opening cloth, made in compliance with ISO 3310-1,ISO3310-2,ISO3310-3/GB/T6003-2012/ ASTM E-11 Specifications.


Test sieve available in diameter12', 300x70mm,(200 x 50.8 mm, 200 x 25.4 mm, 203 x 50.8 mm (8"x 2"), 203 x 25.4 mm (8"x 1")), 100mm and 75mm with stainless steel frames in all kinds of stainless steel wire cloth and copper mesh, nickle-plated, suitable for precision testing and sorting of abrasive.


Model Number:200mm

Usage:Vibration test machine

Type:Woven Wire Mesh lab Sieves

Warranty:12 Months

Weave Style:Plain Weave

Test Material:stainless steel 304

Frame materials:Stainless steel or brass

Production standard:ASTM, JIS, DIN, BS, ISO 3310

Specification

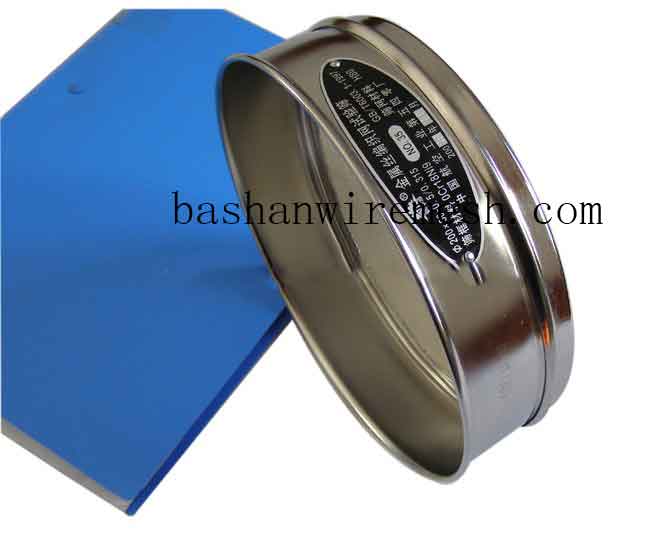

test-sieve6


Nominal Sieve Opening for 200mm Woven Wire Mesh lab test sieve

Sieve No

Aperture size

Wire diameter

Opening rate

%

Screen surface material

Tolerance

8#

2.36mm

1mm

49

brass

0.08mm

10#

2mm

0.9mm

48

brass

0.07mm

12#

1.7mm

0.8mm

46

brass

0.06mm

14#

1.4mm

0.71mm

44

brass

0.05mm

16#

1.18mm

0.63mm

44

brass

0.04mm

18#

1mm

0.56mm

44

brass

0.03mm

20#

0.85mm

0.50mm

40

brass

0.029mm

25#

0.71mm

0.45mm

37

brass

0.025mm

30#

0.60mm

0.40mm

36

brass

0.021mm

35#

0.50mm

0.315mm

38

brass

0.018mm

40#

0.425mm

0.28mm

36

brass

0.016mm

45#

0.355mm

0.244mm

38

brass

0.013mm

50#

0.30mm

0.20mm

36

brass

0.012mm

60#

0.25mm

0.16mm

37

brass

9.9μm

70#

0.212mm

0.14mm

36

brass

8.7μm

80#

0.18mm

0.125mm

35

brass

7.6μm

100#

0.15mm

0.10mm

36

brass

6.6μm

120#

125μm

90μm

34

stainless steel

5.8μm

140#

106μm

71μm

33

stainless steel

5.2μm

170#

90μm

63μm

35

stainless steel

4.6μm

200#

75μm

50μm

36

stainless steel

4.1μm

230#

63μm

45μm

34

stainless steel

3.7μm

270#

53μm

36μm

35

stainless steel

3.4μm

325#

45μm

32μm

34

stainless steel

3μm

Our company

our-company1

In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)


Packing Details

wire-packing3

*  Water-proof paper inside , outside with bubble wrap.

*  Carton box
*  Pallet / Wooden Crate.
*  Customized packing.

Processing & Delivery Time

banner4

* Common products in 2-4 days.

* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc. 4-10days.
* Big size package is shipped by sea, 10-30days.

MOQ

*  If have stock, any quantity is ok .
*  If no Stock, please contact the supplier to confirm it.
* Payment terms:  T/T, L/C , Paypal, West Union etc.
*  Trade term:  EXW/ FOB/ CIF.
