Hot Dual-band Hsxpa/hspa+ Simcom Sim5360 Sim5360e Wcdma Module
US$ 23 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
simcom
Model Number:
sim5360 sim5360e
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Gps Chip Price Wireless Simcom 4g Sim7100 Sim7100e LIte 4g Gsm Desktop Phone ModuleUS$ 12 - 12MOQ: 1 Piece -
Hot Sale Wholesale Gps Chip Price Wireless Simcom 4g Sim7100 Sim7100e Lte 4g Gsm Desktop Phone ModuleUS$ 12 - 69MOQ: 1 Piece
-
Wholesale High Speed Wireless Multi-band WCDMA FDD Simcom Lte 4g Module Sim7250 Low Cost Gprs ModuleUS$ 1 - 80MOQ: 1 Piece
-
Hot Selling Electronic Component China 450MHz Cdma 2000 1xRTT Wireless Simcom Sim2000s Gps Gsm Gprs Chip ModuleUS$ 21 - 25MOQ: 1 Piece
-
Newest Wholesale Cheap Price Simcom Sim800a Smt32 Gsm Gprs Module Dual-frequency GSM/GPRS Low Power Gsm ModuleUS$ 9.4 - 12.9MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
simcom
Model Number
sim5360 sim5360e

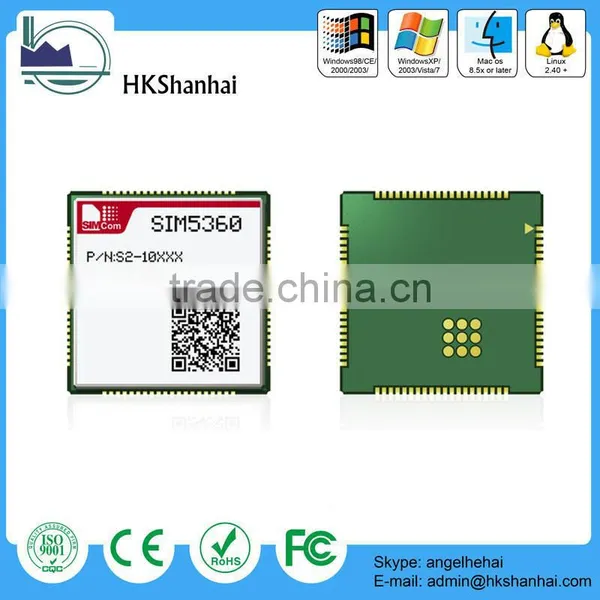

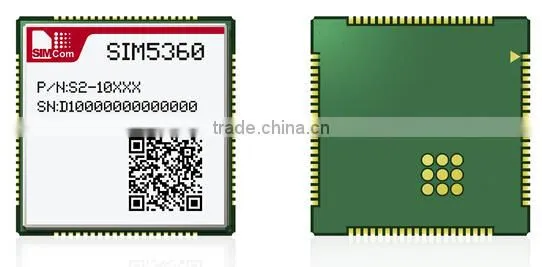

Hot dual-band hsxpa/hspa+ simcom sim5360 sim5360e wcdma module
Product Description
Overview
dual-band hspa+ module
Production Details
The SIM5360 series is Dual-Band HSPA+/WCDMA and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, aaI2C,Keypad, PCM, etc. With abundant application capability like BMP, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
Functions
|
General features
• SIM5360A:Dual-Band UMTS/HSPA+ 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360(J)E:Dual-Band UMTS/HSPA+ 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360J(D):Dual-Band UMTS/HSPA+ 800(850)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
Specifications for GPS
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass
Specifications for Data transfer
• HSPA+
- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
• WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
|
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• Embedded AT
• LUA Script Language
• MMS
• TCP/IP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• SDIO
• PCM *
Certifications
SIM5360A
• FCC
• ROHS
• REACH
SIM5360JE/JD
• Telec
• JATE
• ROHS
• REACH
SIM5360E
• CE
• GCF
• ROHS
• REACH
• CCC
• CTA
|
Hot dual-band hsxpa/hspa+ simcom sim5360 sim5360e wcdma module

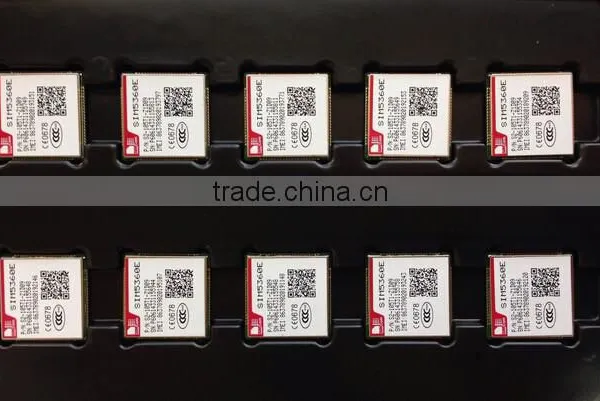

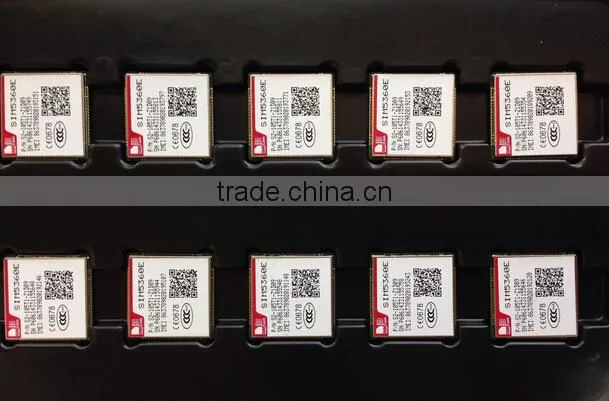

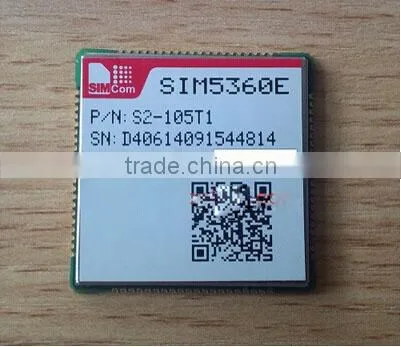

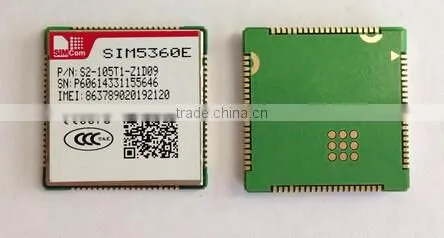

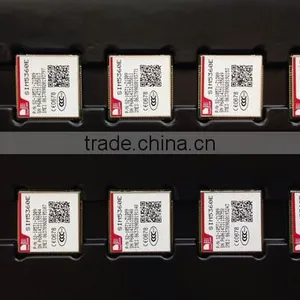

Photo Display
|
|
|
|
Hot dual-band hsxpa/hspa+ simcom sim5360 sim5360e wcdma module

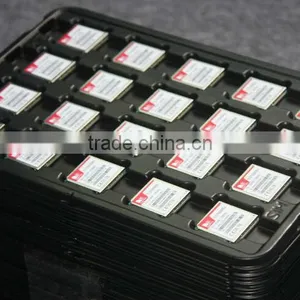

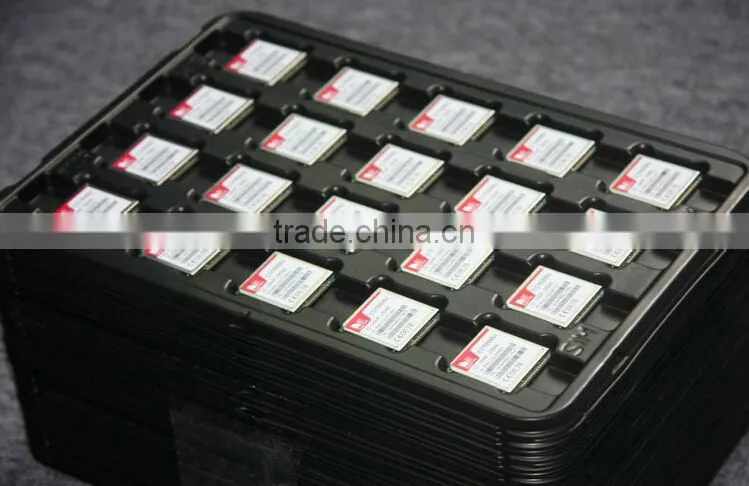

Packaging & Shipping
Packaging
Shipping
Our Services
1. Rapid response on any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality.
4. we supply 1 year warranty , and free technology support .
5. Good after-sales service of our company.
