newest wholesale cheap price simcom sim800a smt32 gsm gprs module dual-frequency GSM/GPRS low power gsm module

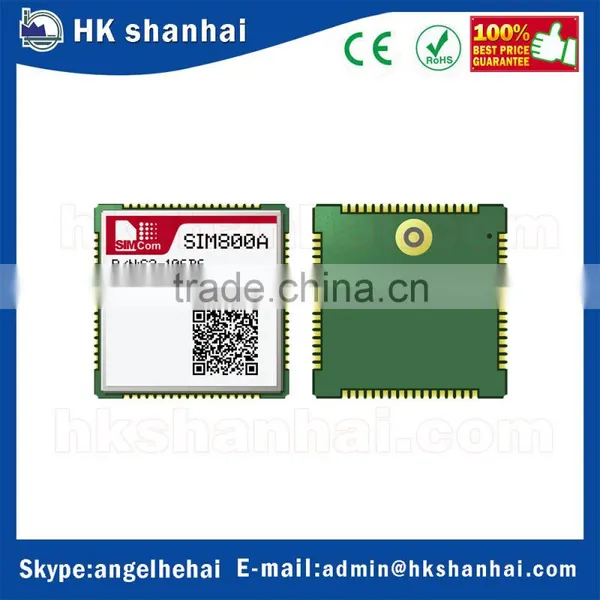

SIM800A is a complete Dual-band GSM/GPRS solution in a SMT type, which can be embedded in the customer
applications.
SIM800A supports Dual-band 900/1800MHz, it can transmit Voice, SMS and data information with low power
consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.
General features
•Dual-band 900/1800MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @900MHz)
–Class 1 (1 W @1800MHz)
•Dimensions: 24*24*3mm
•Weight: 3.1g
•Control via AT commands (3GPP TS 27.007, 27.005
and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~ 85℃
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•TTS_CN (optional)
•Bluetooth 3.0 (optional)
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•AMR
–Half rate (HR)
–Full rate (FR)
•Hands-free operation (Echo suppression)
Interfaces
68 SMT pins including
•Analog audio interface
•RTC backup
•USB interface
•Serial interface
•Interface to external SIM 3V/1.8V
•GPIO
•ADC
•PWM
•I2C
•GSM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command interface
Certifications
•ROHS
•REACH
SIM800
Technology: Quad-Band GSM/GPRS
Dimensions: 24*24*3mm
NormalTemp: -40°C to +85 °C
SIM800C
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
SIM800C-DS
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
OUR ADVANTAGES
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send " Now .
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
