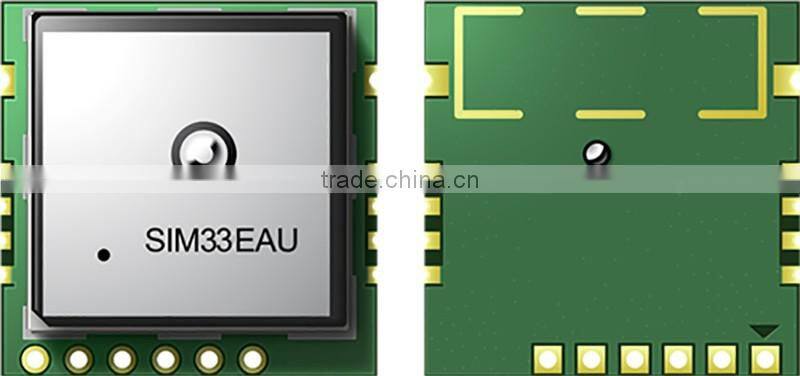

SIMCom presents a high performance GPS module accompany with GNSS antenna-SIM33EAU. This is a standalone GNSS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.
General features
• Dimensions: 22*22*7.5mm
• Weight: 8.5g
•Support GPS/GLONASS/Galileo/QZSS
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
• Serial interfaces
- UART
• Digital I/O
- TIMEMARK(PPS)
- 3D-FIX
• Protocols
- NMEA
- PMTK
Support evaluation products
• SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
• Power supply: +2.8V ~4.3V
• Backup power: +2.3V ~4.3V
• Power consumption2 3.3V (typical)
- Acquisition: 38mA
- Tracking: 32mA
- Standby: 520uA
- Backup: 14uA
1.Demonstrated with a good active antenna
2.All SV @ –130 dBm
3.50% 24 hr static, -130dBm
4.50%@ 30m/s
Performance data
• Receiver type
33 tracking / 99 acquisition- channel GPS receiver
GPS L1, C/A Code
• Max. update rate: 10Hz
• Sensitivity1
- Tracking: -165dBm
- Reacquisition: -160dBm
- Cold starts: -146dBm
• Time-To-First-Fix2
- Cold starts: 31s (typical)
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
• Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
• Operation temperature: -40℃~+85 ℃
Compatibility
• AT cellular command interface
Certifications
• ROHS/REACH/ GCF/CE
SIM800
Technology: Quad-Band GSM/GPRS
Dimensions: 24*24*3mm
NormalTemp: -40°C to +85 °C
SIM800C
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
SIM800C-DS
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
