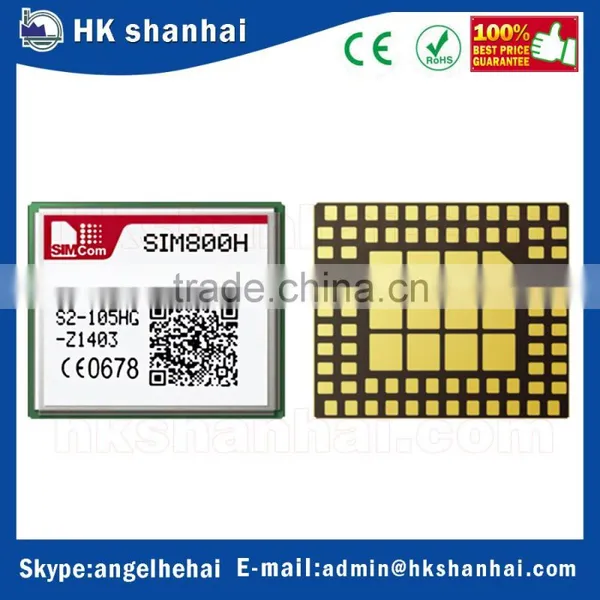

SIM800H is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer applications.
SIM800H support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
• Bluetooth: compliant with 3.0+EDR
• FM: 76~109MHz worldwide bands with 50KHz tuning step
• Dimensions: 15.8*17.8*2.4mm
• Weight: 1.35g
• Control via AT commands
(3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40℃~85℃
Interfaces

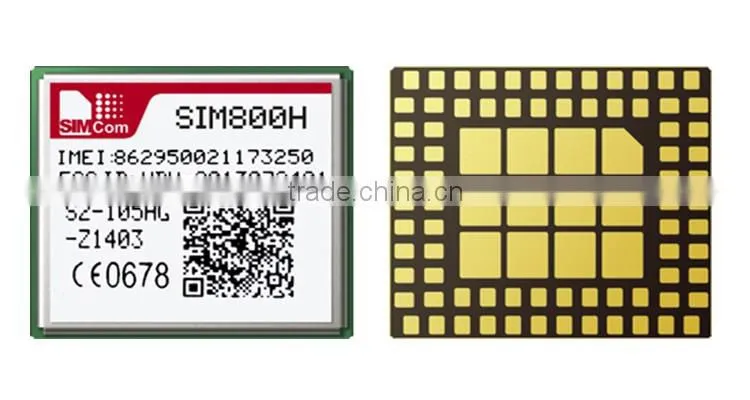

88 LGA pads including:
• Analog audio interface
• PCM interface
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• FM Antenna pad
• Bluetooth Antenna pad
Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD
• Non transparent mode
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection
• Audio Record
• TTS
• Embedded AT (optional)
Specifications for voice
• Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
• AMR
– Half rate (HR)
– Full rate (FR)
• Hands-free operation
（Echo suppression）
Compatibility
• AT cellular command interface
Certifications
• CE/GCF/FCC/ ROHS/REACH/ PTCRB/ CCC/ Anatel/ A-TICK/ CTA/TA
SIM800
SIM800C
SIM800H
OUR ADVANTAGES
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send " Now .
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
