shanhai low price Dual-Band GSM GPRS Module simcom 3g gsm module SIM5300E electronic components wholesale

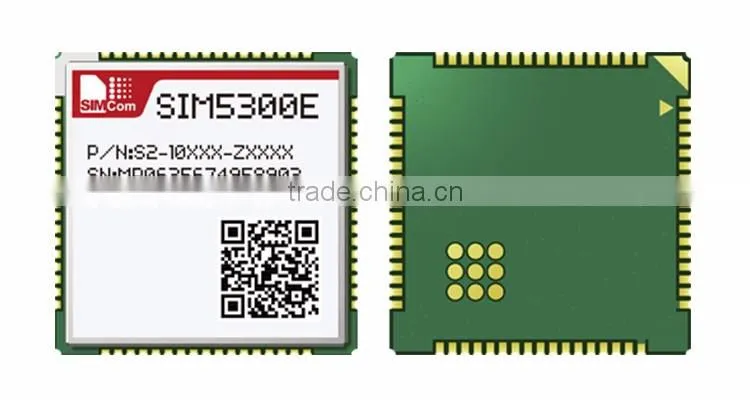

The SIM5300E is a Dual-Band HSPA/WCDMA and Dual-Band GSM/GPRS/EDGE module in a SMT type which supports HSPA up to 7.2Mbps for downlink and 5.76Mbps for uplink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, etc. With abundant application capability like TCP/UDP/PPP, the module provides much flexibility and ease of integration for customer’s application.
General features
• Dual-Band WCDMA/HSPA 900/2100MHz
• Dual-Band GSM/GPRS/EDGE 900/1800MHz
• GPRS multi-slot class 12
• EDGE downlink only
• Output power
- UMTS 900/2100:0.25W
- GSM900:2W
- DCS1800:1W
• Control Via AT Commands
• Supply voltage range:3.4V~ 4.4V
• Operation temperature:-40℃ to +85℃
• Dimension:24 X24X 2.4mm
• Weight:3.2g
Interfaces
• USB2.0
• UART
• SIM card
• I2C
• GPIO
• RTC
• ADC
Specifications for GPRS Data
• HSPA
- Max.7.2Mbps(DL), Max.5.76Mbps(UL)
• WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max.236.8Kbps(DL),
• GPRS
- Max.85.6Kbps(DL), Max.85.6Kbps(UL)
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• Text and PDU mode
Software features
• USB Driver for Microsoft WindowsXP/Vista/7/8/10
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• TCP/IP
• PPP
Certifications
• CE(TBD)
• GCF(TBD)
• ROHS(TBD)
• Reach(TBD)
SIM800
Technology: Quad-Band GSM/GPRS
Dimensions: 24*24*3mm
NormalTemp: -40°C to +85 °C
SIM800C
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
SIM800C-DS
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
