Hot selling electronic component china 450MHz cdma 2000 1xRTT wireless simcom sim2000s gps gsm gprs chip module

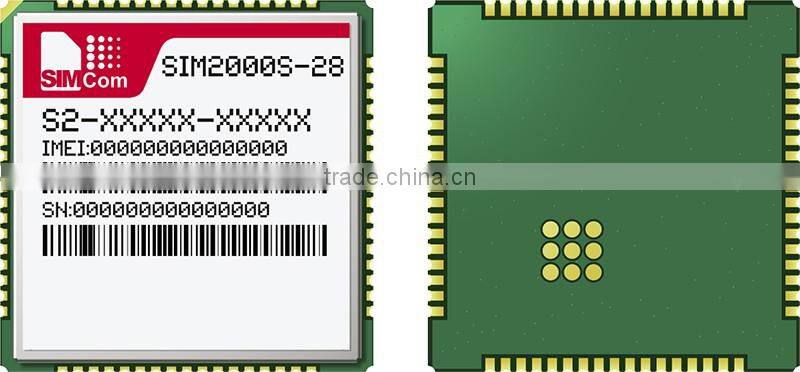

SIM2000S is a CDMA2000 1X solution in a SMT type which can be embedded in the customer applications.
SIM2000S support CDMA 450MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design.
General features
• Frequency band:450 MHz
• Dimensions: 24*24*3mm
• Weight: 3.4g
• Control via AT commands (3GPP2 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature: -40℃ ~85℃
Interfaces
68 SMT pads including:
• Analog audio interface
• Serial interface
• USB interface
• Interface to external UIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• Antenna pad
Specifications for Data
CDMA 2000 1X:
• Max Downlink: 153.6Kbps
• Max Uplink: 153.6Kbps
Specifications for SMS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software features
• Embedded TCP/UDP protocol
• FOTA
• FTP
Specifications for voice
• 8K EVRC
• 13 QCELP
• Echo Cancellation
Compatibility
• AT cellular command interface
Certifications(Plan)
• CE
• CCF

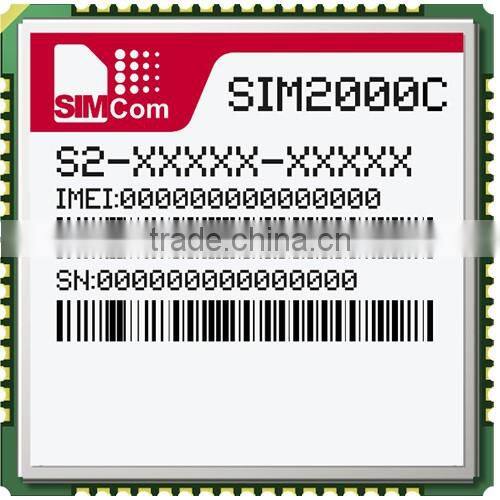

SIM2000c
Technology: Single-Band CDMA 1xRTT
Dimensions: 24*24*3.0mm
NormalTemp: -40°C to +85 °C

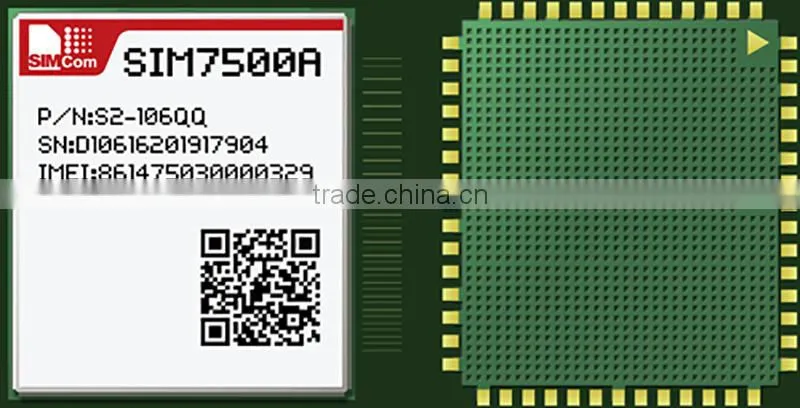

SIM7500A
Technology: Multi-BandFDD-LTE/GSM
Dimensions: 24*27*2.75mm
NormalTemp:-40℃ to +85℃

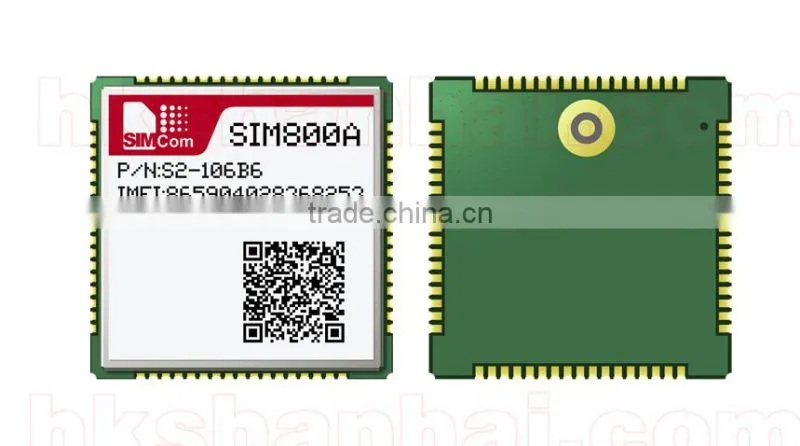

SIM800A
Technology:dual-frequencyGSM/GPRS
Dimensions: 24*24*3mm
NormalTemp:-40°C to +85 °C
SIM800
Technology: Quad-Band GSM/GPRS
Dimensions: 24*24*3mm
NormalTemp: -40°C to +85 °C
SIM800C
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
SIM800C-DS
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
OUR ADVANTAGES
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send " Now .
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
