wholesale high speed wireless multi-band WCDMA FDD simcom lte 4g module sim7250 low cost gprs module

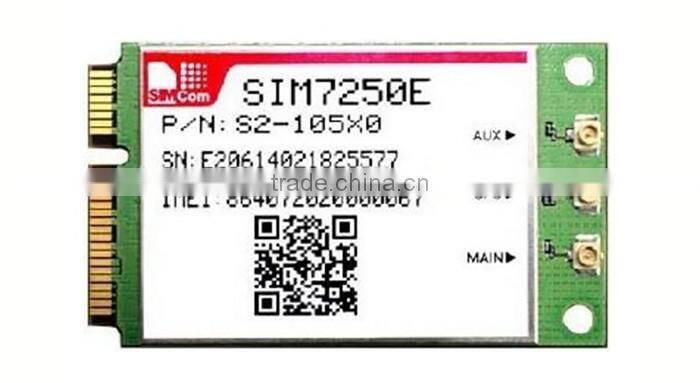

SIMCom presents an ultra compact and reliable wireless module SIM7250E which is based on Qualcomm MDM9225 multiple-mode LTE platform. SIM7250E is a complete multi-band LTE/HSPA+/HSPA/UMTS/EGDE/GPRS/GSM/GNSS PCIE module designed with very powerful processors integrating application core:ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 core, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed Download and upload.
General features
• Five-Band LTE-FDD B1/B3/B7/B8/B20
• Tri-Band UMTS/HSDPA/HSPA+ B1/B3/B8
• Dual-Band GSM/GPRS/EDGE B3/B8
• GPRS multi-slot class 33
• EDGE multi-slot class 33
• Output power
- UMTS 800/900/2100: 0.25W
- GSM900: 2W
- DCS1800: 1W
• Control Via AT Commands or Gobi API
• Supply voltage range: 3.3V
• Operation temperature: -40℃ to +80℃
• Dimension: 51*30*4.75mm
• Weight: TBD
• LTE FDD/Rel-9 Cat4/Rel-10 Cat4 including Carrier Aggregation
• UTMS,
• HSPA+ DC-HSPA+,Rel-10
• GSM GSM R99,GPRS,EDGE
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
• LTE
- Uplink up to 50Mbps,
- Downlink up to 150Mbps
• HSPA+
- Uplink up to 11 Mbps,
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• EDGE
- Uplink/Downlink up to 236Kbps
• GPRS
- Uplink/Downlink up to 85.6Kbps
• CSD
Other features
• USB Driver for Microsoft Windows2000/XP/Vista
• USB Driver for Win7/Win8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux 2.6/Android
• USB Driver for MAC
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
•FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• eCall Ready
• Jamming detection support
• Gobi SDK to the Win7/Win8/Linux
• Source code of the PC manager of the devicefor reference
Interfaces
• PCI Express Mini Card
• USB 2.0
Certifications
• ROHS (TBD)
• FCC(TBD)
• PTCRB(TBD)
SIM2000c
Technology: Single-Band CDMA 1xRTT
Dimensions: 24*24*3.0mm
NormalTemp: -40°C to +85 °C
SIM7500A
Technology: Multi-BandFDD-LTE/GSM
Dimensions: 24*27*2.75mm
NormalTemp:-40℃ to +85℃
SIM800A
Technology:dual-frequencyGSM/GPRS
Dimensions: 24*24*3mm
NormalTemp:-40°C to +85 °C
SIM800
Technology: Quad-Band GSM/GPRS
Dimensions: 24*24*3mm
NormalTemp: -40°C to +85 °C
SIM800C
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
SIM800C-DS
Technology: Quad-Band GSM/GPRS
Dimensions: 17.6*15.7*2.3mm
NormalTemp: -40°C to +85 °C
OUR ADVANTAGES
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send " Now .
Packing
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx , The shipping cost can prepaid in my side or Use your courier account to pay .
