3000-4000BPH Bottled Water Filling Machine

Name: 3000-4000BPH Bottled Water Filling Machine
Brand: huanyu
Availability: InStock

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Port shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type	Bottles, Barrel, Bags	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Pneumatic
Power	2.2kw	Place of Origin	Jiangsu, China
Brand Name	huanyu	Model Number	CGF16-12-6
Dimension(LWH)	2400x1560x2500mm	Weight	2500kg
Certification	CE,ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. bottled water filling machine
2.lubricating system,waterproof system
3.PLC control
4.SUS304

bottled water filling machine

Usage of bottled water filling machine:
The line is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.

Characteristics of bottled water filling machine:
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

Main Technical Specifications of bottled water filling machine

model	CGF 16-12-6	CGF 16-16-6	CGF 18-18-6	CGF 24-24-8	CGF 32-32-8
production(500/m/bottle/h)	3000-4000	4000-5000	5000-6000	8000-10000	10000-12000
filler valves	12	16	18	24	32
rinser grippers	16	16	18	24	32
capper header	6	6	6	8	10
suitable bottle shape	circular or square
bottle diameter(mm)	φ50-φ90
bottle height(mm)	150-310
Compressed air pressure(MPa)	0.3-0.7
washing medium	aseptic water
washing water's pressure(MPa)	0.25
Total output (KW)	2.2	2.2	3	4	6.2
oerall dimensions(mm)	2350x1610x2250	2350x1750x2250	2480x1960x2250	3010x2180x2400	4000x2200x2500
(weight kg)	2200	2500	2800	3500	6000

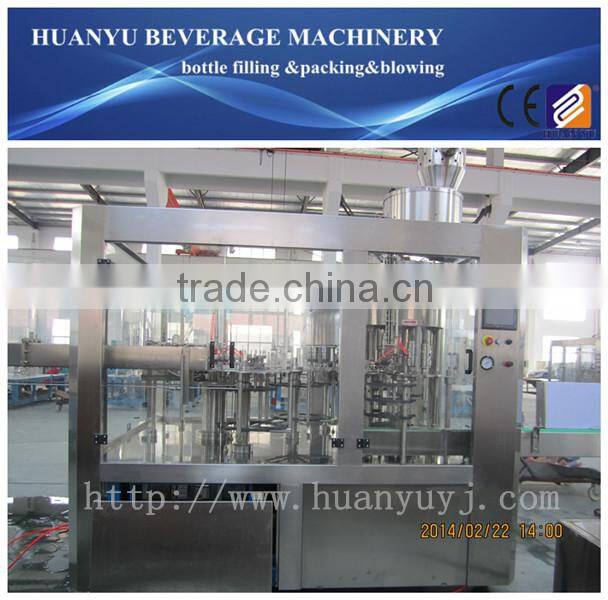

inner show of bottled water filling machine

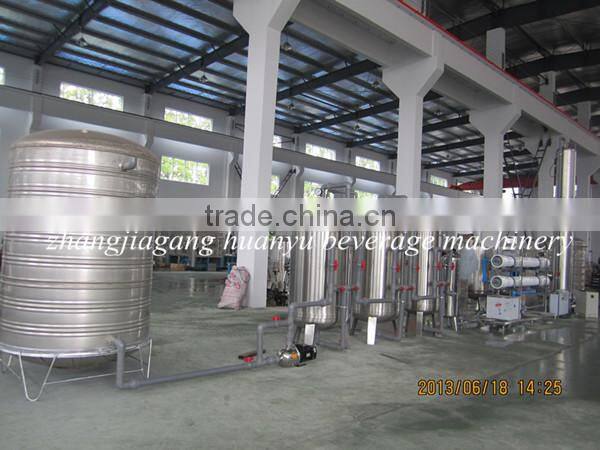

water treatment equipment

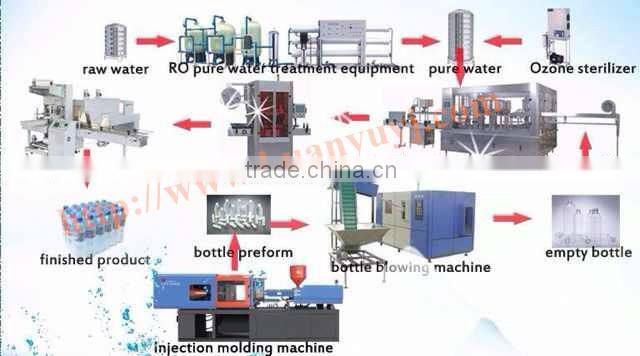

whole water production line

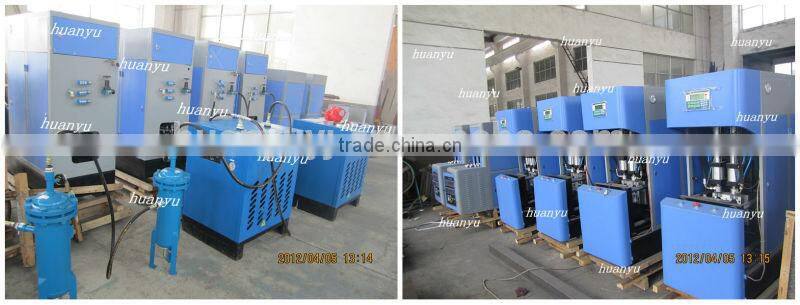

semi-automatic Bottle blowing machine

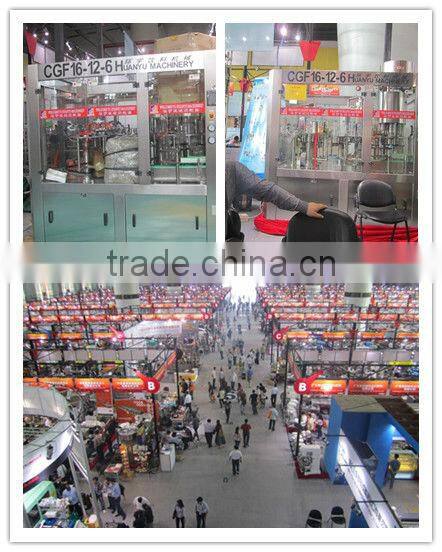

showed in canron fair

Zhangjiagang Huanyu Beverage Machinery Co.,Ltd is a professional Manufacturer of Beverage Filling Machine in China.

Main produce: Bottled Water filling machine,Juice/Tea drink filling machine,Carbonated drinks/Beer Filling machine,Pop can Filling machine,

Water treatment equipment, Bottle Blowing machine, Bottle Unscrambler ,Labeling&Packing machine etc.

Further details .Please feel free to contact me.
