Product Details
Condition: | New | Application: | Food, Beverage | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Power: | 2.2kw | Place of Origin: | Jiangsu, China | Brand Name: | HY |
Model Number: | CGF16-12-6 | Dimension(L*W*H): | 2400x1650x2500 | Weight: | 2500 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. mineral water bottle filling machines2.capacity:1000-30000bph
ponents all from famous brand
mineral water bottle filling machines
Product Description of mineral water bottle filling machines
This series of mineral water filling machine/water filling line are applied to the production of pure water, mineral water, with optional capacity from 1,000 to 30,000BPH
It integrates bottle washing, filling and capping in one machine. The mineral water filling machine/water filling line is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Product Feature of mineral water bottle filling machines
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality stainless steel.
Product Specification / Models
Model: CGF16-12-6
Production capacity: 3000-4000b/h (basis on 500ml bottle)
Filling precision: ±5mm(liquid level)
Polyester bottle specification: bottle diameter:φ50-φ100mm
bottle height: 150-320mm
Suitable cap type: plastic screw cap
Total power: 2.2kw
Overall dimension: 2400×1650×2500mm
Total weight: 2500kg
Other type
Model: | CGF16/12/6 | CGF16/16/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
Production(500/m/bottle/h): | 3000 | 5000 | 8000 | 10000 | 12000-14000 |
washing filling and capping heads | 16 12 6 | 16 16 6 | 18 18 6 | 24 24 8 | |
Bottle size | Circular or square bottleBottle diameter(mm): Φ50-φ90 Bottle height(mm): 150-310 | ||||
Compressed air pressure(MPa): | 0.3-0.7 | ||||
Washing medium: | Aseptic water Washing | ||||
waters pressure(MPa): | 0.25 | ||||
Total output (KW): | 3.13 | 3.84 | 3.84 | 4.1 | 5.6 |
Oerall dimensions(mm): | 2500x1500x2500 | 2500x1800x2500 | 3200x2200x2800 | 3400x2600x2800 | 3600x2800x3000 |
Weight (kg): | 2500 | 3000 | 3500 | 4500 | 5000 |
inner picture
Other products related to the whole line
adhesive labeling machine

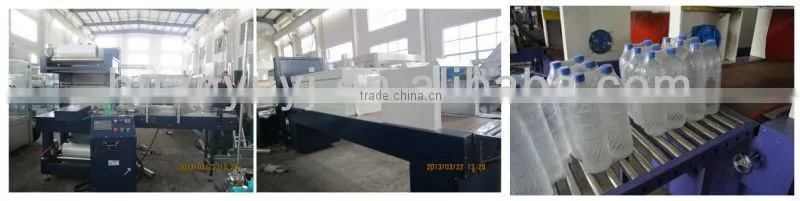

shrink film wrapping machine
showed in 112 canton fair
