Material: |
Stainless Steel |
Color: |
Silver |
Insulation: |
Polyurethane Foam |
Thickness: |
Inner 3mm/external 2mm |
Surface: |
Polished |
Type: |
Vertical |
Condition: |
New |
Heating: |
Steam Or Electric Or Direct-fire |
Voltage: |
380V Or 220v Customized |
Warranty: |
12 Months |

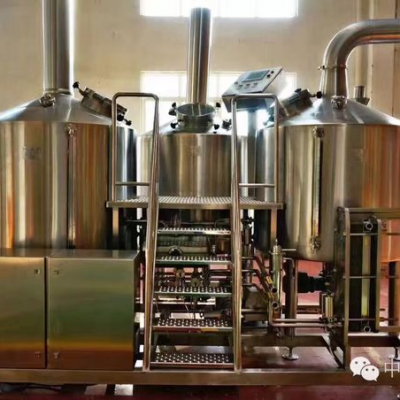

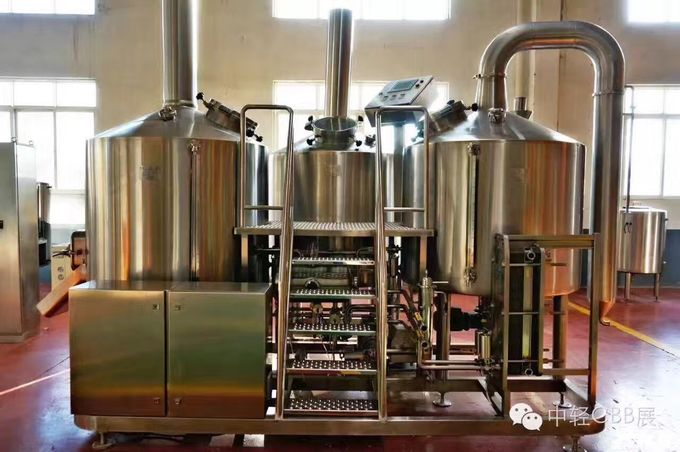

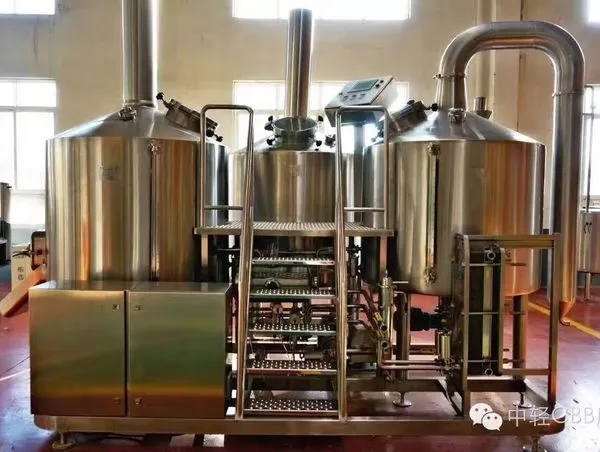

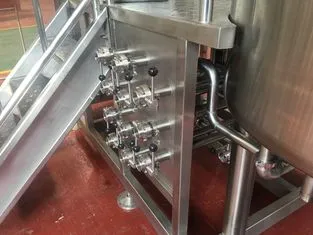

10Bbl Large Scale Brewing Equipment With Fermentation Tank Steam Heating
10bbl complete brewery whole plant
steam heating
mash tun+lauter tun+whirlpool tank+brewkettle
with plate heat exchanger, all pumps
separate control cabinet
fermentation tank
bright beer tank
cooling system
Grist case: 300kg/800L
1. Single wall
2. tank thickness: 3mm;
3. put on the mash tun or put on the floor both ok, according to your room height. If height enough can directly put it on the top of mash tun place, if room height is lower, can design as option 2, meantime adding another set auger.
Flex auger: 30 feet
1. Stainless steel 304
2. With the hoppers and motor
3. Fittings and valves
4. Capacity: 2M3/h
5. With auger system
Mash tun: 1000L
1. Dimension:φ1460×2583mm
2. Total volume: 1600L,effective volume:1000L；
3. Thickness of insulating layer: 80mm;
4. Inner Body Thickness: 4mm. Tank cladding thickness 2mm;
5. 2 pieces CIP rotary spray ball
6. Mechanical mixer , with variable speed control motor (bottom mixer)
7. With large glass manhole
8. Brush finished;
9. With Liquid meter
10. With heating jacket
11. Condensate water pipe
12. Four legs with brace and adjustable bolt;
13. Necessary fittings and valves.
14. With mash hydrator
15. With sight light
16. With water hydrator
17. Condensed water pipe
18. With decoration chimney
19. With material outlet pipe
