Home > Products > Wine Filling Machine > Wine Filling Plant,Wine Bottling Plant,Wine Packing Machine

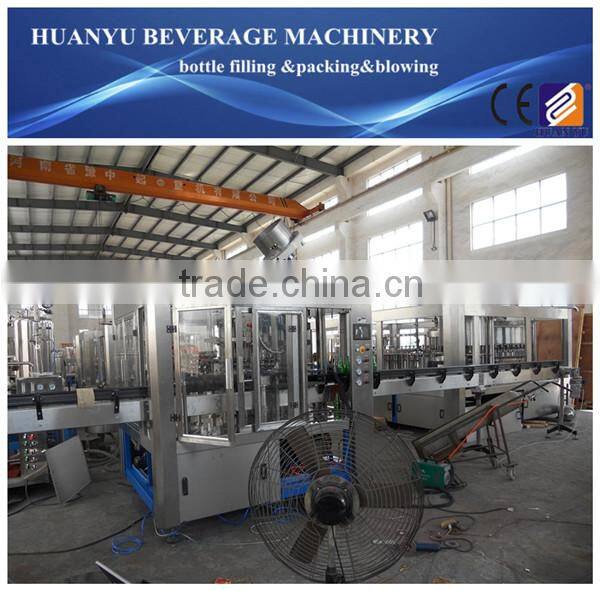

Wine Filling Plant,Wine Bottling Plant,Wine Packing Machine
- 5 Set / Sets per Month
- Shanghai
- T/T
-
Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
-
PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
-
Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
-
Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
-
Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
-
high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
| Condition: | New | Application: | Food, Beverage | Packaging Type: | Bottles |
| Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V/50HZ | Power: | 2Kw | Place of Origin: | Jiangsu, China |
| Brand Name: | Huanyu | Model Number: | DCGD18-12-6 | Dimension(L*W*H): | 2460x1720x2650mm |
| Weight: | 3000kg | Certification: | CE/SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Wine Filling Plant,Wine Bottling Plant,Wine Packing Machine2.0.25-0.75L PET/Glass Bottle
4.Filling:1000-10000BPH
5.CE
Wine Filling Plant,Wine Bottling Plant,Wine Packing Machine
Products Introduction:
This DCGB Wash-filling-capping 3-in-1unit:Vodka Machinery is used to produce alcoholic beverage machinery and other non-gas beverage machinery in glass bottle ,The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (KW) | Overall dimension (mm) |
DCGD 18-12-6 | 18 | 12 | 6 | 1000-2000 | 2.2KW | 2460x1720x2650 |
DCGB18-18-6 | 18 | 18 | 6 | 2000-4000 | 4KW | 3500x2500x2650 |
DCGB24-24-8 | 24 | 24 | 8 | 5000-7000 | 7.5KW | 4600x1800x2650 |
DCGB32-32-10 | 32 | 32 | 10 | 8000-10000 | 9.5KW | 5200x4500x3400 |

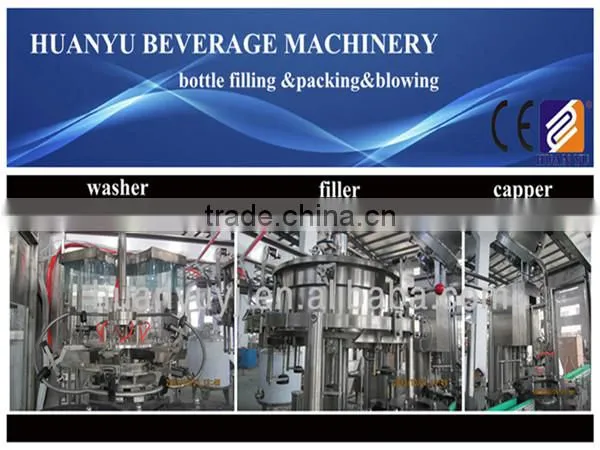

3-in-1 Wine Filling Machine
Zhangjiagang Huanyu Beverage Machinery Co.,Ltd is a professional Manufacturer of Beverage Filling Machinein China.
Main produce: Bottled Water filling machine,Juice/Tea drink filling machine,Carbonated drinks/Beer Filling machine,Pop can Filling machine,
Water treatment equipment, Bottle Blowing machine, Bottle Unscrambler ,Labeling/packing machine and so on.
More detailed information .Please feel free to contact us.
Name | Derek Liang |
Mobile phone | +86-15962348757 |
Office Tel | +86-512-58536922 |
Skype | derekmachinery |
522756388 |
