Voltage: |
220V Or 380V Or Customized |
Condition: |
New |
Material: |
SUS304 |
Type: |
Filling Machine |
Condition:: |
New |
Application:: |
Beer Or Beverage |
Automatic Grade:: |
Automatic |
Driven Type:: |
Electric 380V 50Hz 3 Phase, According To Customer Request |
Material:: |
SUS304 |

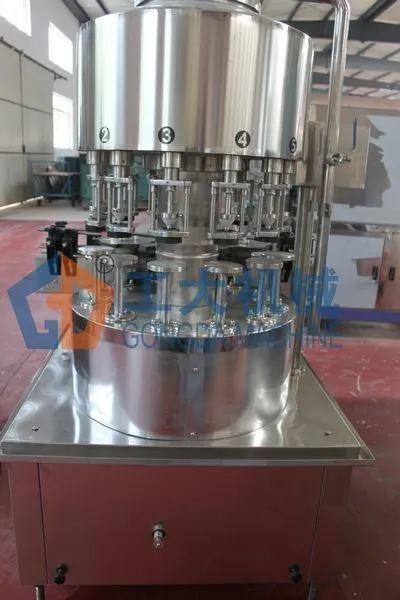

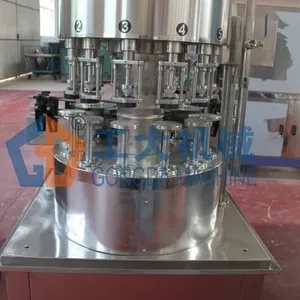

Grape Vinager Glass Bottle Filling Machine Electric 3 Phase 2000Bph 380V 50Hz
The automatic normal pressure fixed level filler is kind of mechanical negative filling. The empty bottles conveying from the conveyor are sent to the star wheel, and gradually goes to the main machine. In the meantime, the bottles are lifted till the bottle mouth completely contacts the filling nozzle as the silica gel pad with bottle mouth. After that, the filling nozzle started annually to fill products into bottles. During the filling process, the vortex pump will do Leak-proof vacuum adjusting to the storage tank. Meanwhile, vacuum tube in the filling nozzle will form a leak proof vacuum environment. In this situation, liquid product will speed up flowing by being filled into bottles faster. When the liquid level reached the vacuum tube bottom, the tube is sealed by liquid to finish the filling process. The liquid level at this stage is the same with that after filling. If you want to lower down the filling level, the silica gel pad needs to be adjusted upward. Whereas the pad should go downward. After filling, bottles goes down to level of the assembly line with the movement of bottle lifter then to the assembly line through the bottle star wheel for next step.
Quick Details
Type:Filling Machine
Application:Beverage
Packaging Type:Bottles
Packaging Material:Glass
Place of Origin:Shandong, China (Mainland)
Brand Name:GONGDA
Model Number:GD-GZ
Processing:Filling Machine
Processing Types:wine
Supply Ability
Supply Ability:10 Set/Sets per Month
Packaging & Delivery
Packaging DetailsIron frame
PorQingdao
Lead Time :60 days
Specifications
We are the best producer in China
It includes bottle rinsing,filling,capping,drying,labeler,etc.
It is completely automatic.
1. It is mainly used in filling of foaming liquids,such as wine, red wine etc.
2. Principal Features
The production lines include automatic bottle washing machines, Negative pressure filling machines, corking machine machine and conveyor and other products ect.Level positioning accuracy, better than the industry standard, non-drip, seal tight and reliable. Broken bottles or none bottles not filling, not spilling liquid, clean and hygiene. Automation adapt the error of the height of bottles,frequency conversion speed regulator,sort start,soft-braking,non-rigid impact,stability and reliability working.
