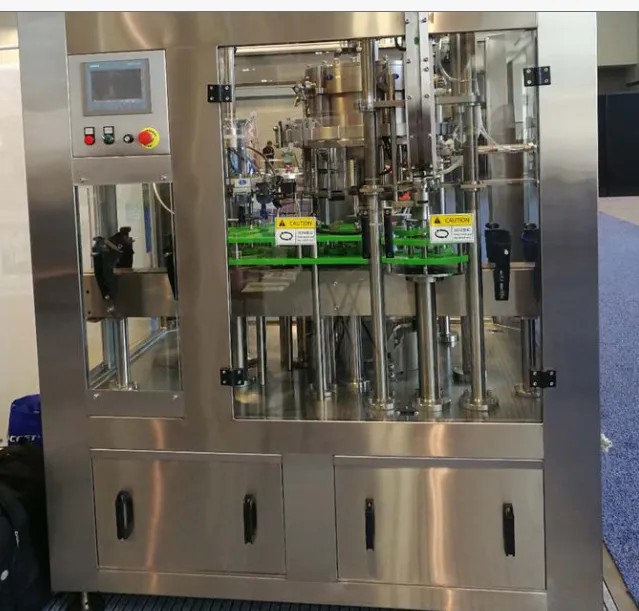

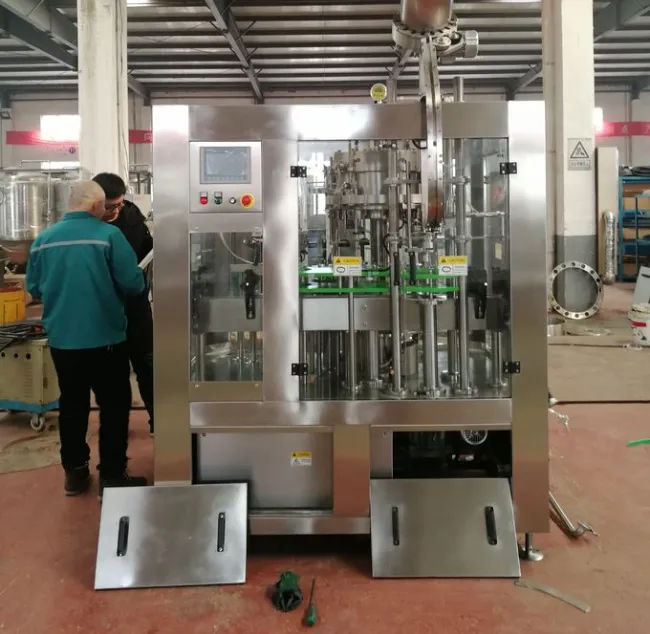

Automatic Bottle Filling Machine Sus304 3 In 1 For Beer / Carbonated Drink
One:Introduction:
Newly designed and produced by our Zhongde Group Company
Machine Name :6-6-1 rinsing, filling, capping 3-in-1 machine
Used for filling beer and carbonated drink
Filling beer in glass bottle
Adopt isobaric filling principle
Filling stable , filling level stable
One time CO2 preparation and one time vacuumed
Widely used in craft breweries
rinser filler capper 3 in 1 monoblock | |
Model |
GDCGFB-6/6/1 |
Rinsing heads |
6(diameter:φ595) |
Filling heads |
6(diameter:φ510) |
Capping heads |
1(diameter:φ170) |
Capacity |
500-800 BPH |
Applicable bottle |
Bottle height 200～350mm DiameterΦ52～Φ84mm |
Aseptic air consumption |
0.4m3/min(0.4～0.6Mpa); blowing: 0.6m3/h |
Main motor |
0.37 KW |
Hopper motor |
0 .18KW |
Vacuum motor |
0.75 KW |
Overall dimension |
1520×1125×2350mm(L×W×H) |
Weight |
1300 Kg |
Tag:
monoblock filling machine, glass bottle packing machine
