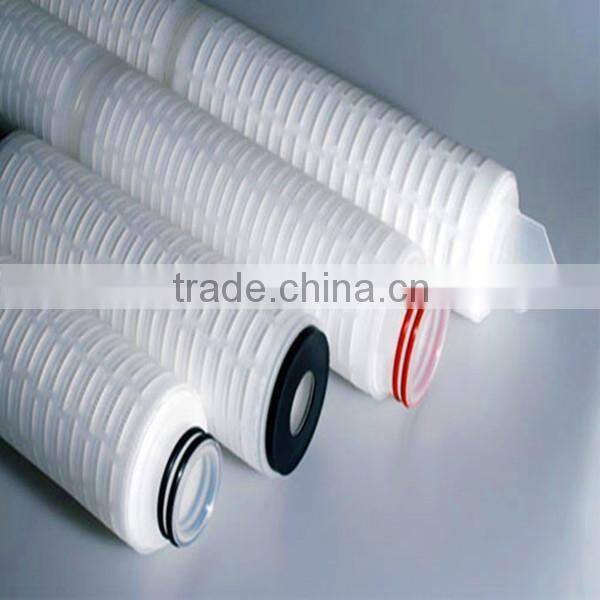

PES 0.2/0.45um Folding Filter Cartridge,liquid Filtration

 PES 0.2/0.45um folding filter cartridge,liquid filtration

The filtration media of PES micropore filter cartridge is imported hydrophily polyethersulfone membrane.

All products have passed 100% integrity testing and can achieve to 99.99% retention rate of bacterium.

PES PLEATED CARTRIDGE grade are custom configured to increase the surface area and give maximum throughputs for general purpose use. Every operation including assembly, testing, cleaning, drying and packaging is done in a clean room.

Specifications and technical parameters

• Filter medium: imported hydrophily polyether sulfone membrane
• Support layer: PP
• Filter cage: PP
• Pore size: 0.1,0.2,0.45,0.65,1µm
• Length: 10",20",30",40",50''
• Sealing material: Silastic, NBR, EPDM, Viton
• Sealing method: thermal bonding
• Effective filtration area: ≥0.6 m²/10"
• Diameter: 69.0 mm

Maximum Operating Parameters

• Max. operating temperature: 85°C,0.05 MPa
• Max. bear temperature: 140°C,0.28 MPa
• Max. positive pressure: 0.42 MPa(25°C)
• Max. back pressure: 0.21 MPa(25°C)
• Sterilizing temperature: 121°C   30 min
• Others: special requirement of diameter and end caps can be customized

Typical Applications

• Pharmacy industry: final filtration of injecta, eye drops,non-high temperature sterilization product, biologicals, vaccine, serum
• Food industry: wines, mineral water, drinking water, beverage
• Electronic industry: final filtration of high purity water and chemical raw materials
