Save Electricity 50 EPS/EPP Foam Compressor Hydraulic Cold Pressing for Home Appliance/logistics Packaging Recycling
US$ 2936.00
≥1 Set
Key Specifications
Get Latest Price
place of origin:
Henan, China
brand name:
Panqi
model number:
v400
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatic Foam Plastic Cold Press Foam Cold Press XPS/EPS for Recycling EquipmentUS$ 2196.00MOQ: 1 Set -
Panqi High Strength Compression Ratio EPS Foam Cold Press Machine for Recycling Box Packaging Electronic Product Waste FoamUS$ 2196 - 3850MOQ: 1 Set
-
Factory Price EPS Polystyrene Foam Cold Pressing Machine EPE Plastic Cold Press Compactor Foam Crushing Recycling MachineUS$ 2196 - 3850MOQ: 1 Set
-
Styrofoam Concrete Block Cold Press Making Machine Foam Eps Recycling Compactor Compressing Machine Eps Foam Cold PressUS$ 2196 - 3850MOQ: 1 Set
-
Foam Cold Press Machine Plastic Granulator Machine Manufacturing EPS Foam Cold Press MachineUS$ 2196 - 3850MOQ: 1 Set
place of origin
Henan, China
brand name
Panqi
model number
v400
type
Waste foam recycling
warranty
1 Year
material
PP or PE
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor, Engine
weight (kg)
500
Power(W)
22
product overview:
The foam cold press is an environmentally friendly equipment specially used to process waste foam plastics (such as EPS, EPE, EPP, etc.). It greatly compresses the foam volume through cold pressing technology, making it easier to transport and recycle.
Performance and Characteristics:
1.Environmental protection and energy saving: no heating process, low energy consumption, no harmful gas emissions.
2.Efficient volume reduction: the foam density after compression can reach 300-600kg/m³, greatly reducing transportation costs.
3.Strong adaptability: can handle EPS (polystyrene), EPE (pearl cotton), XPS and other foams.
4.Automatic operation: Some models are equipped with PLC control system to achieve automatic feeding, compression and discharging.
Product model
Model |
Output(Kg/h) |
Specification(mm) |
power(Kw) |
Power Input |
Vertical300 |
100-150 |
3200*1000*1500 |
15 |
380V |
Vertical350 |
150-200 |
3700*1000*1500 |
18.5 |
380V |
Vertical400 |
200-250 |
4200*1000*1500 |
22 |
380V |
Horizontal300 |
150-200 |
3800*1300*800 |
15 |
380V |
Horizontal400 |
300-400 |
4200*1500*1000 |
22 |
380V |
There are many product specifications and models
The foam cold press has a wide variety of product specifications. Different specifications are mainly reflected in core parameters such as processing capacity, power, body size, compression ratio, and feeding method to adapt to the needs of different scenarios

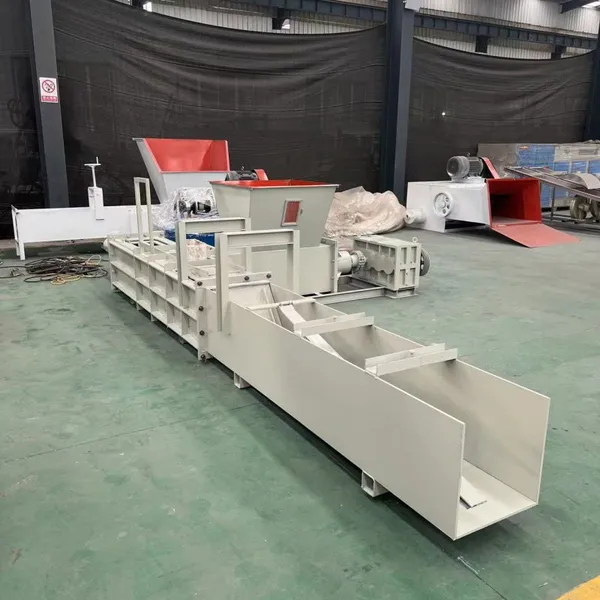

1. Horizontal: large processing capacity focuses on "high efficiency and batch processing", strong continuous operation stability, suitable for large recycling plants, logistics warehouses and other centralized processing scenarios, and can be connected to the back-end transportation/storage system.
2. Vertical: medium processing capacity focuses on "space saving, flexibility and convenience", suitable for small and medium-sized recycling stations and stores, mainly intermittent operations, and more manual intervention.
3. The mobile vehicle-mounted type has a small processing capacity , which is limited by the vehicle power and is suitable for decentralized recycling (such as communities and exhibition sites). It is compressed as it is collected to avoid foam occupying transportation space.
Foam cold pressing machine structure composition
1. Power system: The motor (or hydraulic device) provides power to drive the compression components.
2. Compression system: The screw propeller (commonly used for horizontal) or the vertical pressure rod (commonly used for vertical) squeezes the foam through mechanical pressure to achieve volume reduction.
3. Feeding device: Top (vertical) or side (horizontal) feeding port, some are equipped with crushers to pre-crush large foam blocks.
4. Discharge port: discharge high-density compressed blocks, mostly in the shape of columns or blocks.
5. Frame and shell: support the main structure, protect the internal components, and some models have moving wheels (small machines).
6. Control system: adjust parameters such as speed and pressure to achieve automatic or manual operation.
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to
visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are thickening.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 10 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1)TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2)To solve the problems with videos/pictures.
(3)One year warranty for spare parts change.
