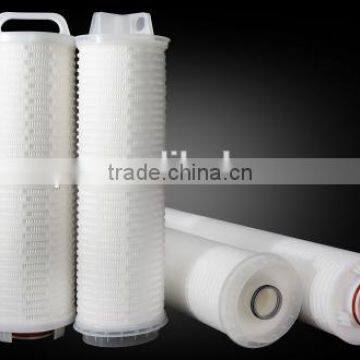

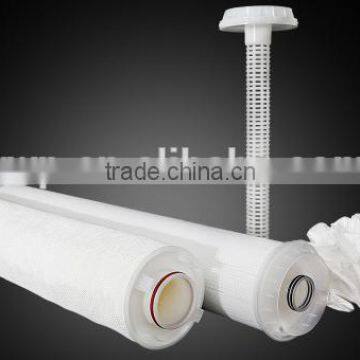

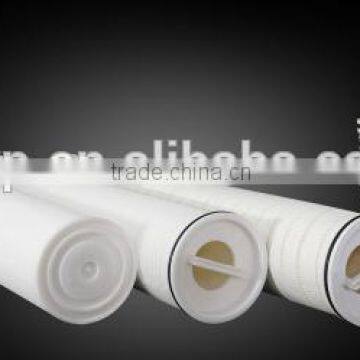

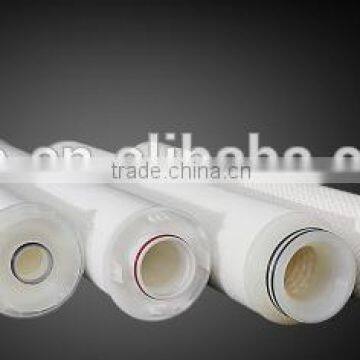

3 Micron 5 Micron PP Pleated Filter Cartridge for Waste Water Treatment Plants
US$ 2 - 4
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HUAMO/OEM
Model Number:
PP pleated
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
pp Beer Filter Cartridge for Beer Brewing FiltrationUS$ 1 - 3MOQ: 20 Pieces -
Best Price &high Quality Micropore pp Pleated Cartridge Filter for Wine or Juice ManufactureUS$ 6 - 12MOQ: 10 Pieces
-
0.1 Micron 10 Inch pp Pleated Cartridge With Beat Price &high QualityUS$ 2 - 6MOQ: 10 Pieces
-
10 Inch 0.2Micron Pes Filter Cartridge With Good PriceUS$ 15 - 30MOQ: 10 Pieces
-
5 Micron PP Pleated 10 Inch Catridge Water Filter/pp Membrane Pleated Filter CartridgeUS$ 1 - 3MOQ: 100 Pieces
Place of Origin
Anhui, China
Brand Name
HUAMO/OEM
Model Number
PP pleated
3 micron 5 micron PP pleated filter cartridge for Waste water treatment plants
Specifications:
| Materials Of Construction | Filter Media: | Polypropylene | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 25, 50 um | |||||
| Inner core: | Polypropylene | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 28mm(1.12'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating Conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature: | 80℃ (172℉) at P≤1.0 bar (14psi) | |||||

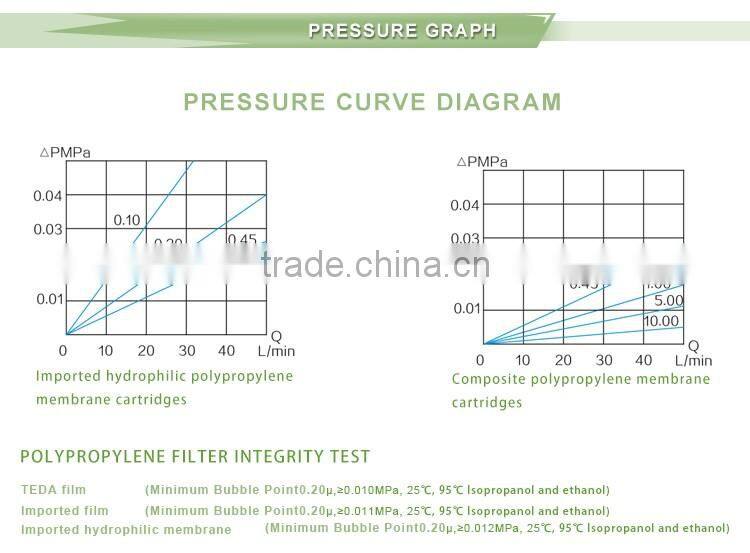

| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-13 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours; | |||||
| Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi) -- Recommended. | ||||||
Characteristics
Low differential pressure.
Low-cost.
High flow rates.
Long service life.
Ultrasonic welding and without adhesive.
100% integrity test for filter cartridge.
Widely filter precision and selectivity, available for various situations.
Broad chemical compatibility, and good chemical stability, acid-proof, alkali-proof, ethanol-proof, ketone-proof, DMF-proof, phenol-proof and other chemicals.
Certificate:
Packing:
