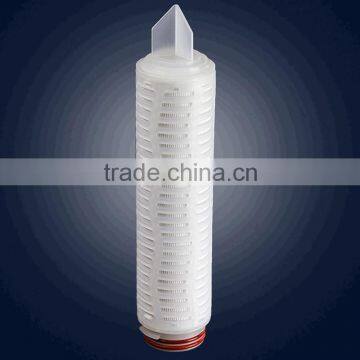

Hydrophobic PTFE Gas Filter Cartridge for Venting Sterilizing Filtration
US$ 35 - 45
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HUAMO/OEM
Model Number:
Polytetrafluoroethylene (PTFE)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5um All Fluoropolymer Filter Cartridge PVDF for Chemicals FiltrationUS$ 9 - 55MOQ: 10 Pieces -
3 Micron 5 Micron PP Pleated Filter Cartridge for Waste Water Treatment PlantsUS$ 2 - 4MOQ: 10 Pieces
-
pp Beer Filter Cartridge for Beer Brewing FiltrationUS$ 1 - 3MOQ: 20 Pieces
-
Best Price &high Quality Micropore pp Pleated Cartridge Filter for Wine or Juice ManufactureUS$ 6 - 12MOQ: 10 Pieces
-
0.1 Micron 10 Inch pp Pleated Cartridge With Beat Price &high QualityUS$ 2 - 6MOQ: 10 Pieces
Place of Origin
Anhui, China
Brand Name
HUAMO/OEM
Model Number
Polytetrafluoroethylene (PTFE)
Hydrophobic PTFE gas filter cartridge for Venting sterilizing filtration
Specifications:
| Materials Of Construction | Filter Media: | Double-layer Polytetrafluoroethylene (PTFE) | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 25, 50 um | |||||
| Inner core: | Polypropylene | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 28mm(1.12'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating Conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature: | 80℃ (172℉) at P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-13 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours; | |||||
| Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi) -- Recommended. | ||||||
Hydrophobic PTFE gas filter cartridge
1) High flow rates and low pressure drop
2) High strength, long service life and cost-effective
3) Oxidation-resistant materials of construction for gas filters
4) Have a particulate removal rating of 0.01 μm in gases and a microbial removal rating of 0.22 μm in liquids
5) 100% integrity testable prior to release
Hydrophobic PTFE gas filter cartridge
1) Sterile venting of tanks
2) Autoclave vacuum break lines
3) Fermentation air applications
4) Sterile process gases
5) CIP at ambient temperature
