Replacement filter 0.1 Micron Hydrophobic PTFE membrane filter cartridge
US$ 10 - 22
/ Piece
10 Pieces(Min. Order)
- Shanghai
- T/T
You May Like
-
PTFE filter cartridge / gas separation membrane for ventilation
-
20 Inch 0.22Micron PTFE Membrane Pleated Air Filter /Pall Gas Cartridge Replacement
-
hydrophobic PTFE gas filter cartridge for Venting sterilizing filtration
-
5um All Fluoropolymer Filter Cartridge PVDF for Chemicals Filtration
-
3 micron 5 micron PP pleated filter cartridge for Waste water treatment plants
-
pp beer filter cartridge for beer brewing filtration
Product Details
| Place of Origin | Anhui, China | Brand Name | HUAMO/OEM | |
| Model Number | Polytetrafluoroethylene (PTFE) |
Product Description

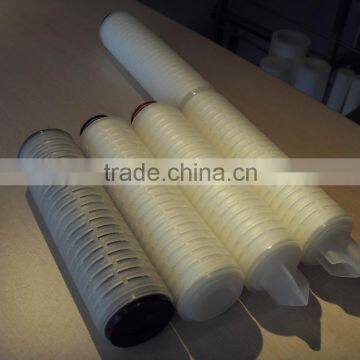

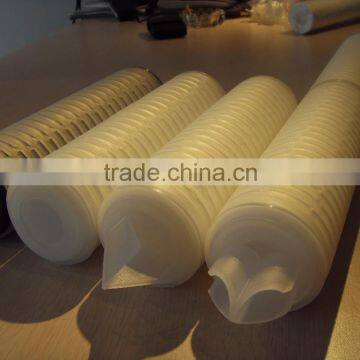

Replacement filter 0.1 Micron Hydrophobic PTFE membrane filter cartridge
Specifications:
| Materials Of Construction | Filter Media: | Double-layer Polytetrafluoroethylene (PTFE) | ||||
| Support Layers: | Polypropylene | |||||
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 25, 50 um | |||||
| Inner core: | Polypropylene | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc | |||||
| Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
| Inner Diameter | 28mm(1.12'') | |||||
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
| Filtration Area(m2) | 0.65 m2 per 10'' | |||||
| Operating Conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature: | 80℃ (172℉) at P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 1-13 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours; | |||||
| Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi) -- Recommended. | ||||||
Hydrophobic PTFE gas filter cartridge
1) High flow rates and low pressure drop
2) High strength, long service life and cost-effective
3) Oxidation-resistant materials of construction for gas filters
4) Have a particulate removal rating of 0.01 μm in gases and a microbial removal rating of 0.22 μm in liquids
5) 100% integrity testable prior to release
Hydrophobic PTFE gas filter cartridge
1) Sterile venting of tanks
2) Autoclave vacuum break lines
3) Fermentation air applications
4) Sterile process gases
5) CIP at ambient temperature
Certificate:
Packing:
