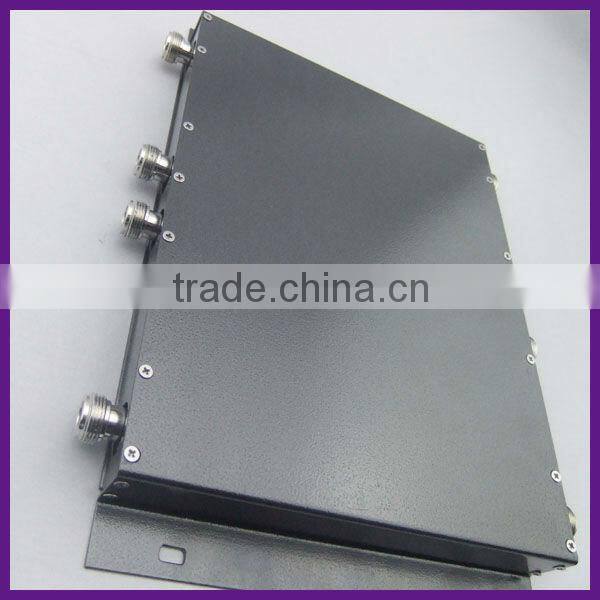

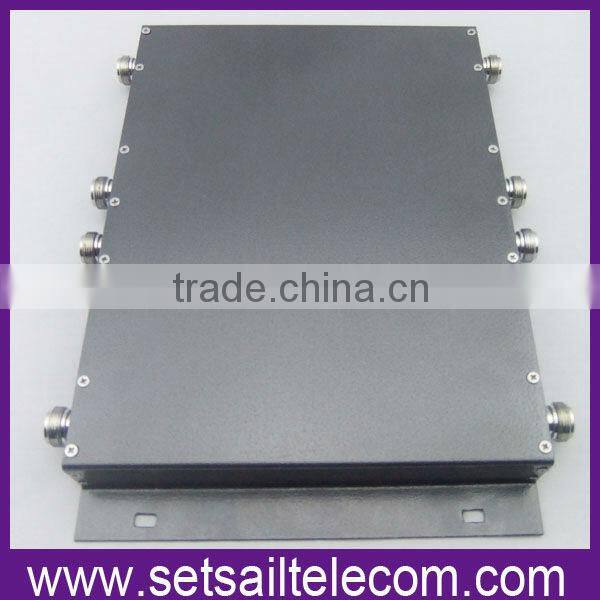

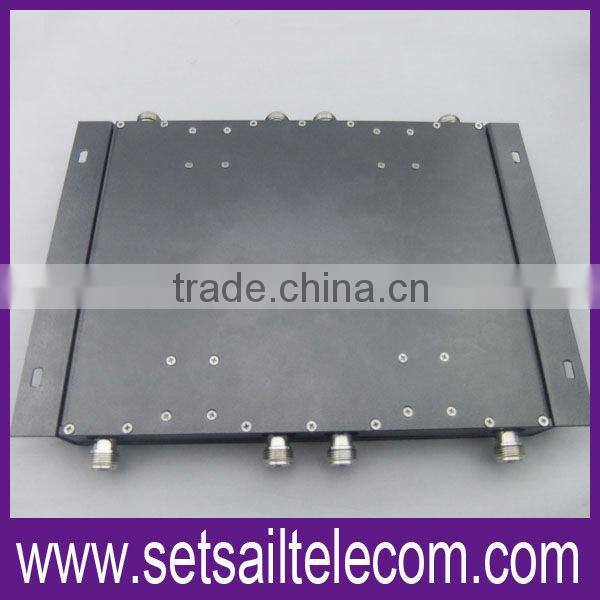

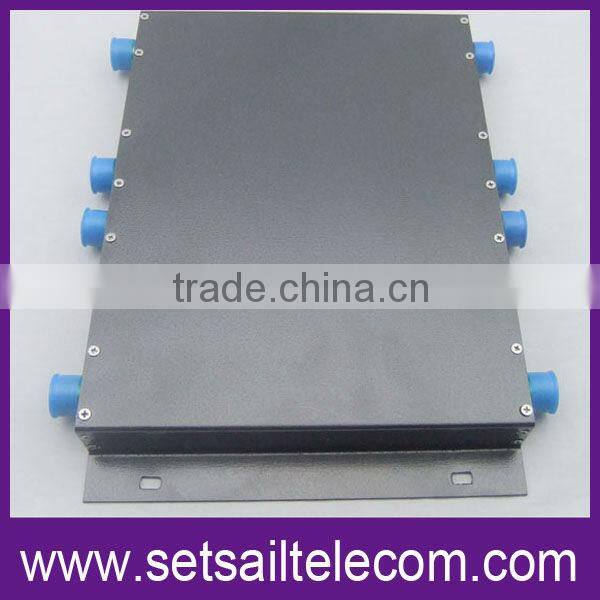

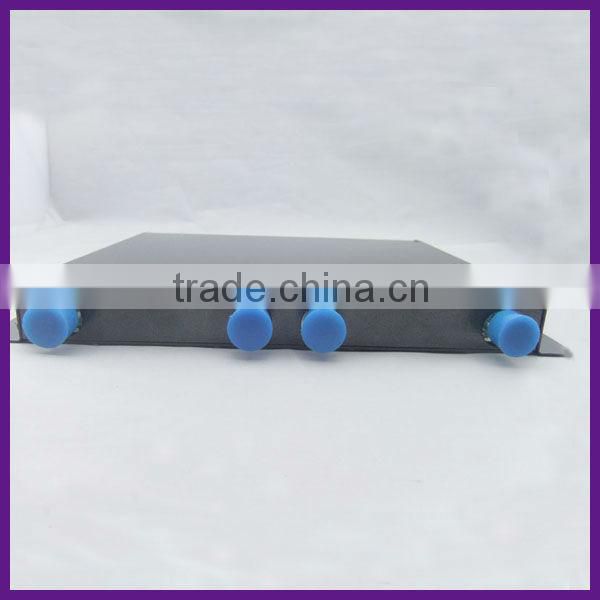

4 in 4 out N-F 0.8-2.5GHZ RF Combiner

Standard Export Carton for N-F 4 in 4 out 0.8-2.5GHZ RF Combiner

Specifications

1. Manufacturer of 4 in 4 out RF N-F 0.8-2.5GHZ RF Combiner
2. 800-2500 MHz
3. OEM Services
4. Two years warranty

Applications: 800-2700MHz, RF 4 way Hybrid Combiner (Hybrid 4X4 Combiner, N-female)



1.  RF Combiner/Hybrid Combiner is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. Power Divider is widely used in the IBS and BTS projects. All over the world, SETSAIL has sold most of the Power Splitter/Divider to ZTE and Huawei's oversea IBS and BTS contruction, especiall in Middle East and South American.  Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 800-2700MHz, 4 way Hybrid Combiner is around 2,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.



2. 800-2700MHz(700-2700MHz), RF Combiner/Hybrid Combiner is widely used in below fileds:



A. Mobile Communication Network Optimization and In-door distribution system.

B. Cluster communication, satellite communication, shortwave communication and hopping radio.

C. Radar, electronic navigation and electronic confrontation.

D. Aerospace equipment systems.



3.  800-2700MHz(700-2700MHz), RF Hybrid Combiner/Combiner is just one of SETSAIL's RF Combiner Products Line. SETSAIL is capable of manufacturing and providing 800-2500MHz, 800-2700MHz, 700-2700MHz, 670-2700MHz, 350-2700MHz, 800-3000MHz, 350-520MHz, 350-1000MHz, 180-185MHz, 700-3500MHz RF Power Splitters. The connectors can be N-type, DIN-type, BNC-type, TNC-type and so on.



 Technical Specifications:



800-2700MHz RF 4 in 4 out N-F 700-2700MHZ Combiner  (N-female Connector, 4 connectors on each two sides)

Model	YF-RC-0825-04-N	YF-RC-0827-04-N	YF-RC-0727-04-N
Product Name	800-2500/2700MHz, 698-2700MHz, 150W, N-female, RF 4 way Combiner
Frequency(MHz)	800-2500	800-2700	698-2700
Insertion Loss(dB)	1.0	1.0	1.1
Isolation(dB)	20	20	20
Coupling(dB)	6	6	6
VSWR	1.30:1	1.30:1	1.30:1
Power Capacity(W)	150
Impedance(ohm)	50

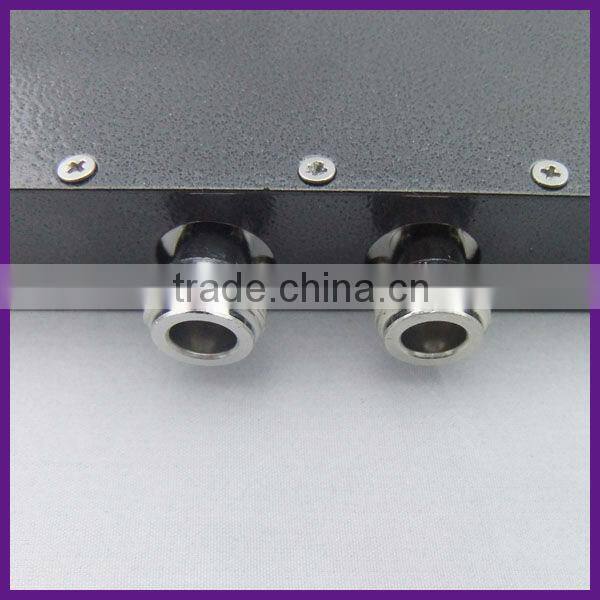

RF Connector	N-female
Operating Temperature(deg)	-35~+70
Material	Aluminum
Color	Black-plated
Relative Humidity	5%-95%
Dimensions(mm)	278.2*210
Weight(kg)	2.13kg



Note: Specifications can be changed according with customers' requirements.
