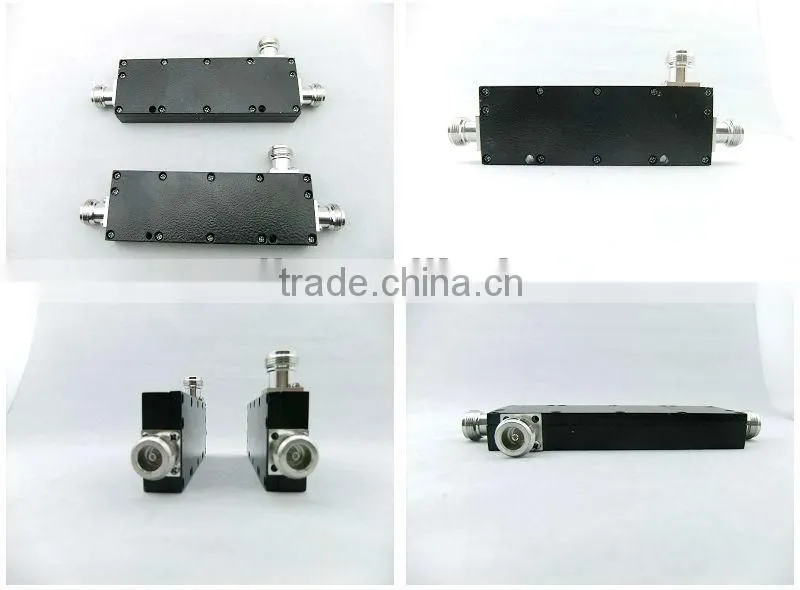

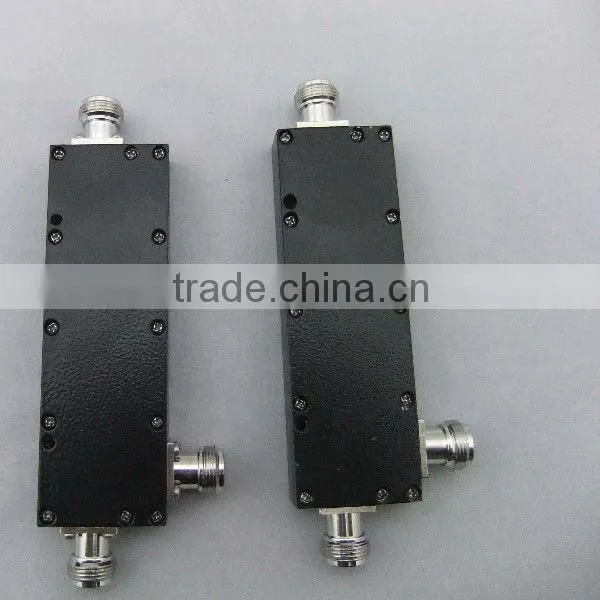

N-Connector RF Directional Coupler(0.7-2.7GHz)

Name: N-Connector RF Directional Coupler(0.7-2.7GHz)
Brand: Setsail
SKU: 132977853
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Setsail

Model Number:

YFTX-RC-0727-NF

Hefei Setsail Telecom Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Setsail

Model Number YFTX-RC-0727-NF

Specifications

1.Low Insertion loss for 0.7-2.7GHz Dierectional coupler
2. Directional coupler good VSWR
3.OEM of RF Directional coupler ok

0.7-2.7GHz 6/10/15/20/30dB Cavity Directional Coupler

Technical Specifications

0.7-2.7GHz 6/10/15/20/30dB RF Cavity Directional Coupler

Model	YFTX-RC-0727-06-NF	YFTX-RC-0727-10-NF	YFTX-RC-0727-15-NF	YFTX-RC-0727-20-NF	YFTX-RC-0727-30-NF
Frequency(MHz)	0.7-2.7GHz directional coupler
Product Name	6/10/15/20/30dB RF Cavity Directional Coupler
Coupling(dB)	6±0.9	10±1.1	15±1.1	20±1.3	30±1.6
Insertion Loss(dB)	1.7	0.9	0.6	0.5	0.4
VSWR	1.25:1
Power Capacity(W)	200
Directivity(dB)	20
RF Connector	N-female or SMA-female
Impedance(ohm)	50
Relative Humidity	5%-95%
Color	Black-plated
Temperature(deg)	-35~+125
Application	Indoor
Weight(kg)	0.23
