Help CenterTwo Band Diplexer/combiner CDMA&DCS&3G/WLAN
Related Products
-
GSM900/DCS1800/UMTS2100MHz Three Band Combiner (Manufacturer)NegotiableMOQ: 1 Piece -
GSM900/DCS1800/UMTS2100MHz Tri Band Combiner (Manufacturer)NegotiableMOQ: 1 Piece
-
DCS/WCDMA RF Dualband Combiner (1710-1880/1920-2170MHz)US$ 1 - 100MOQ: 1 Piece
-
GSM900/DCS1800/UMTS2100 Triplexer CombinerUS$ 1 - 200MOQ: 1 Piece
-
RF GSM&DCS/3G Dual-band CombinerNegotiableMOQ: 5 Pieces
Specifications
diplexer/combiner1,Manufacturer of 2 way combiner/diplexer with 10years.
2,specialized engineers and professional workers.
Technical Specifications of diplexer/combiner
Model |
YF-RFCOM-2-02N-F |
|
CH1:C&G&D& |
CH2:WLAN |
|
Frequency(MHz) |
800-2200 |
2400-2500 |
Insertion Loss(dB) |
≤0.4dB |
≤0.6dB |
Passband Ripple(dB) |
≤0.3dB |
≤0.34dB |
Outband Rejection(dB) |
≥80@CH1 |
≥80@CH2 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC/@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-F |
|
NOTE: All the specifications for combiner/diplexer can be changed as customer's
requirments.

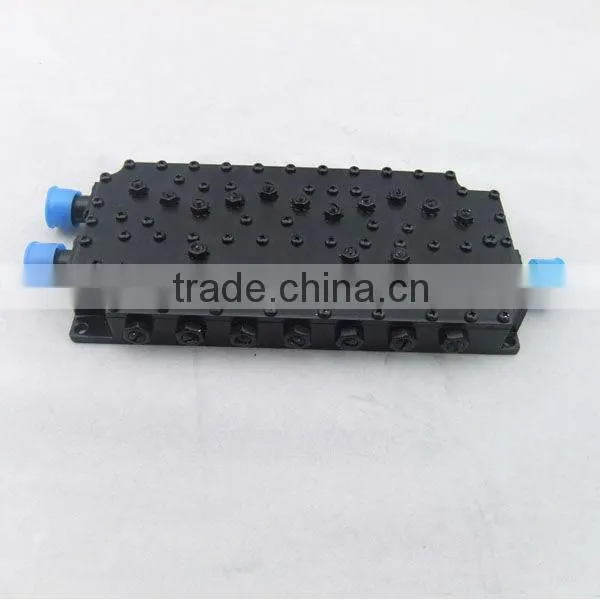

Detail Views:
Introduction and Applications:
The combiner in communication system combine signal into one set of indoor distribution system.which
is widely used in the following fields:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Packing Details:
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard
exporting carton. the products will be protected very well with paper cardboard and foam.
