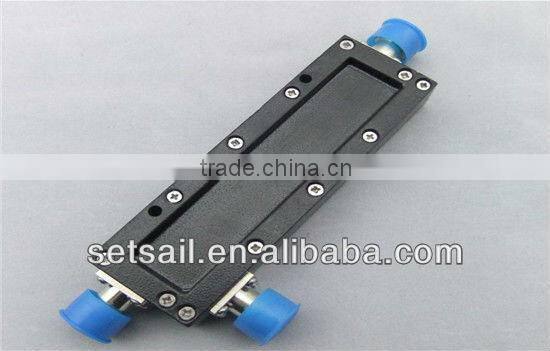

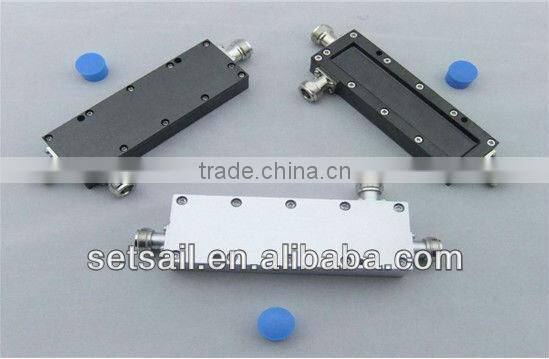

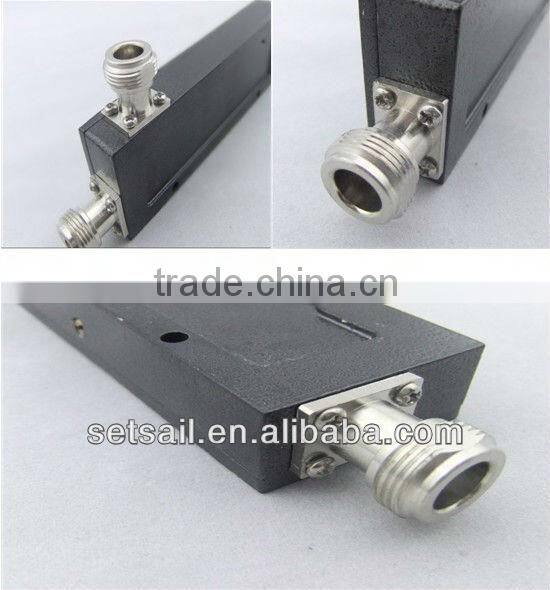

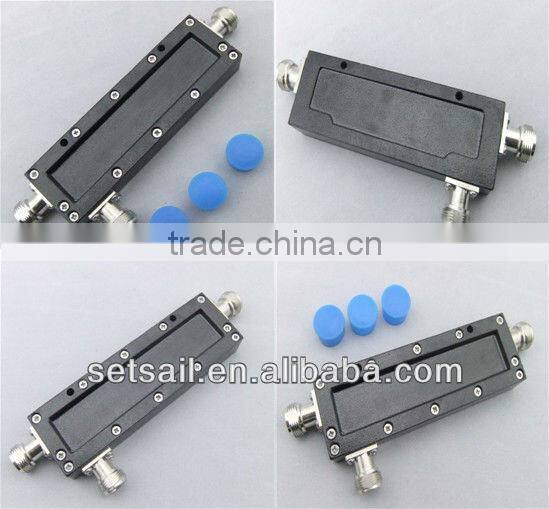

698-2700MHz, RF Cavity Directional Coupler (IBS Telecommunication)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YF-DC-0727-XX-NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
700-2700MHz, RF Cavity Directional Coupler (IBS Telecommunication)NegotiableMOQ: 10 Pieces -
800-2700MHz, RF IBS Directional Coupler(Silvery White)NegotiableMOQ: 10 Pieces
-
800-2500MHz, RF IBS/BTS Directional Coupler(Silvery White)NegotiableMOQ: 1 Piece
-
698-2700MHz, IBS RF Directional Coupler(Silvery White)NegotiableMOQ: 10 Pieces
-
670-2700MHz, IBS RF Directional CouplerNegotiableMOQ: 10 Pieces
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YF-DC-0727-XX-NF
Specifications
1. We are Manufacturer of RF Hybrid Coupler2. OEM Service is available
3. 200pcs in stock
4. Hybrid Coupler Best Price
Applications:
800-2700MHz, 5/6/7/8/9/10/15/20/30/40/50dB, N-female, 200W, RF Cavity Directional Coupler
Used in IBS and BTS projects
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Directional Coupler: 800-2500MHz
Technical Specifications:
| Model Number | YF-DC-0727-06-NF | YF-DC-0727-10-NF | YF-DC-0727-15-NF | YF-DC-0727-20-NF | YF-DC-0727-30-NF |
| Frequency | 800-2500 | 800-2500 | 800-2500 | 800-2500 | 800-2500 |
| Insertion Loss | 1.7 | 0.8 | 0.5 | 0.4 | 0.3 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| Directivity | 20 | 20 | 20 | 20 | 20 |
| Power | 200 | 200 | 200 | 200 | 200 |
| Impedance | 50 | 50 | 50 | 50 | 50 |
| Coupling | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 |
| RF Connector | N-female | N-female | N-female | N-female | N-female |
| Relative Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
| Color | Black | Black | Black | Black | Black |
| Temperature | -35~+125 | -35~+125 | -35~+125 | -35~+125 | -35~+125 |
| Weight | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
| Apllication | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
Note: Specifications can be changed according with customers' requirements.
