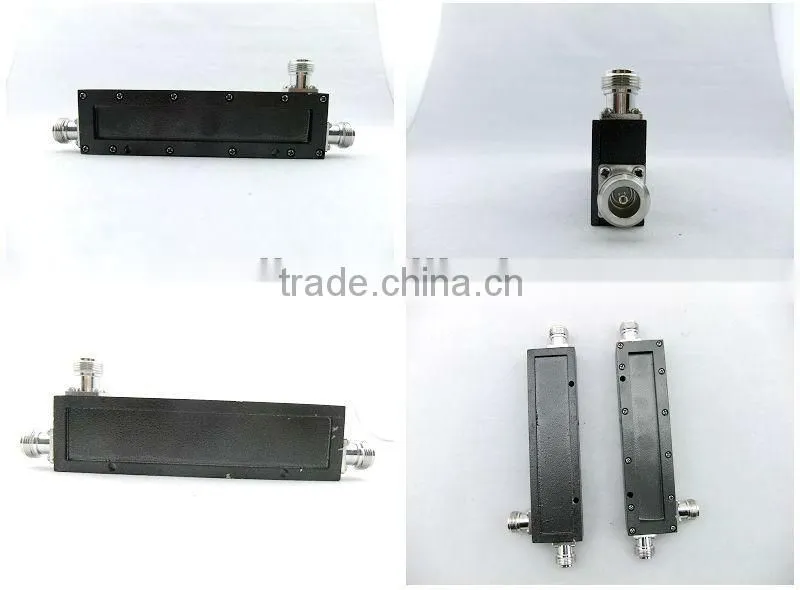

N-Connector RF Directional Coupler(350-520MHz)

Name: N-Connector RF Directional Coupler(350-520MHz)
Brand: Setsail
SKU: 132977843
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Setsail

Model Number:

YFTX-RC-3552-NF

Hefei Setsail Telecom Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Setsail

Model Number YFTX-RC-3552-NF

Specifications

1.Low Insertion loss for RF Dierectional coupler
2.RF Directional coupler good VSWR
3.OEM of RF Directional coupler is ok.

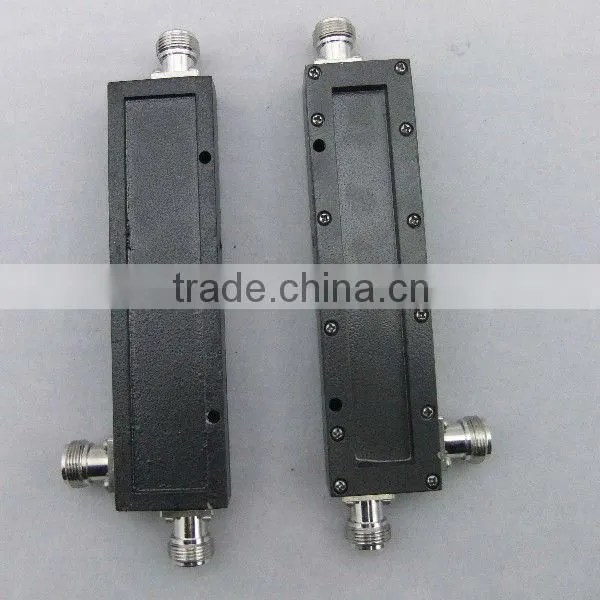

350-520MHz 6/10/15/20/30dB Cavity Directional Coupler

Technical Specifications

350-520MHz 6/10/15/20/30dB RF Cavity Directional Coupler

Technical Specifications

350-520MHz 6/10/15/20/30dB RF Cavity Directional Coupler

Model	YFTX-RC-3552-06-NF	YFTX-RC-3552-10-NF	YFTX-RC-3552-15-NF	YFTX-RC-3552-20-NF	YFTX-RC-3552-30-NF
Frequency(MHz)	350-520MHz
Product Name	350-520MHz 6/10/15/20/30dB RF Cavity Directional Coupler
Coupling(dB)	6±0.6	10±0.8	15±0.9	20±1.0	30±1.0
Insertion Loss(dB)	1.65	0.6	0.3	0.3	0.3
VSWR	1.25:1
Power Capacity(W)	200
Directivity(dB)	20
RF Connector	N-female or SMA-female
Impedance(ohm)	50
Relative Humidity	5%-95%
Color	Black-plated
Temperature(deg)	-35~+125
Application	Indoor
Dimensions(mm)	143.353719
Weight(kg)	0.20
