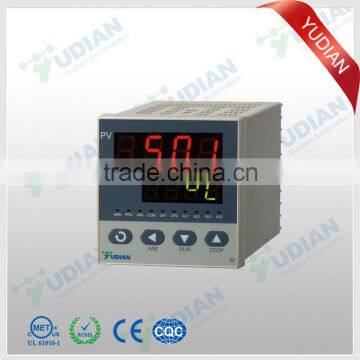

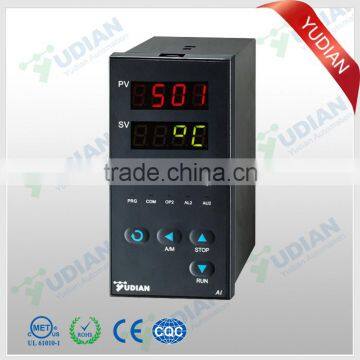

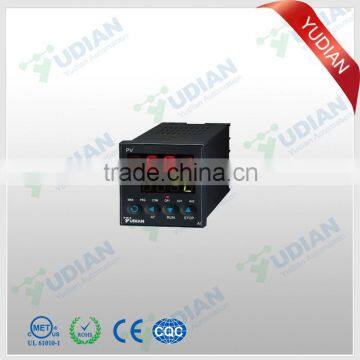

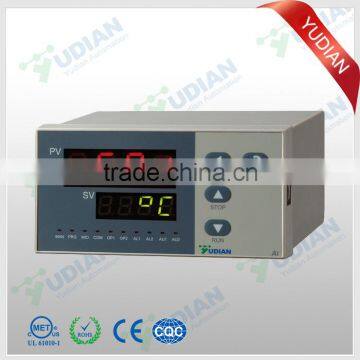

YUDIAN AI-501 Indicating/Alarming Instrument

Name: YUDIAN AI-501 Indicating/Alarming Instrument
Brand: Yudian
SKU: 132850315
Availability: InStock

Xiamen Yudian Automation Technology Co., Ltd.

5Yrs

US$ 80 - 80 MOQ: 1 Piece

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Yudian

Model Number:

AI-501

Payment & Shipping

Payment Methods:

Port of Shipment:

XiaMen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Yudian

Model Number AI-501

Usage Industrial

Theory Temperature Transmitter

Accuracy 0.3%FS±0.1°C

Temperature Range 0-9999°C

AI-501 intelligent digital temperature pressure indicator

Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc

Main features:

High measurement accuracy: 0.3%FS ±1°C

Programmable and modular input

Dual display windows, easy to set parameters and alarms points.

Universal input power- 85~264VAC, or 11~26VAC/VDC

Alarms can be outputted to different relays or share one.

RS485 communication interface

Retransmission function

CE, RoHS, ISO9001 approved

Specification:

Control mode	On-off control mode AI PID Control with Auto Tuning(AT)
Measurement accuracy	0.3%FS ±1°C
Resolution	0.1°C
Input	Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26
	RTD: Pt100, Cu50
	Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV
	Linear Current: 0~20mA, 4~20mA
	Linear resistor: 0~80ohm, 0~400ohm
	-9990~3000 defined by user
Input range	K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C)
Output (modularized)	Relay output (NO+NC): 250VAC/2A or 30VDC/1A
Output (modularized)	Linear current : can transmitter process value
General specifications	Voltage: support AC85-265V, 50/60Hz or DC24V.
	Power consumption: ≤5W
	Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
	Operating Ambient : temperature -10~60°C; humidity ≤90%RH
