Yudian AI-508 K Type Input Relay Output Cold Temperature Switch

Yudian AI-508 K type input relay output cold temperature switch

___________________________________________________________________________

   I. Technical Specification:

1. Input type : K,T, E, J, N, PT100

2. output type: Relay, SSR voltage output.

3. Accuracy : 0.3%FS±2°C

4. Resolution : 1℃

5. Control mode: On-off control or PID control

6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.

7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC

8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%

___________________________________________________________________________

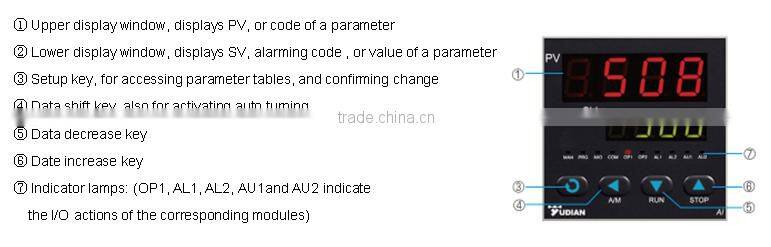

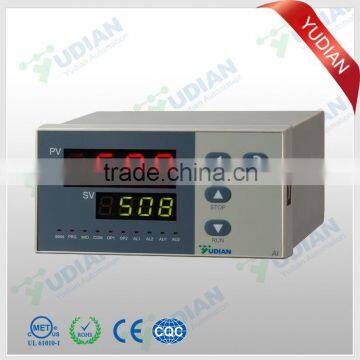

   II. Front panel and Operation:

___________________________________________________________________________

   III. Model Code:

The type of AI-508 is made up of 4 parts:

                                           AI-508     A    G   L0

                                               1         2     3     4

Part 1:

      AI-508 digital temperature controller, accurancy  0.3%FS±2°C

Part 2: Dimension

      A: 96*96mm

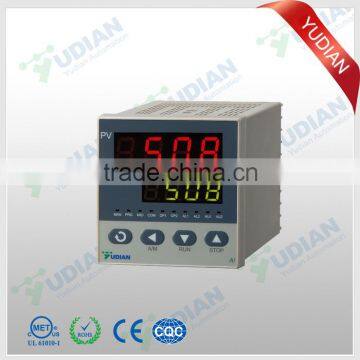

      D: 72*72mm

      D2: 48*48mm

      E: 48*96mm

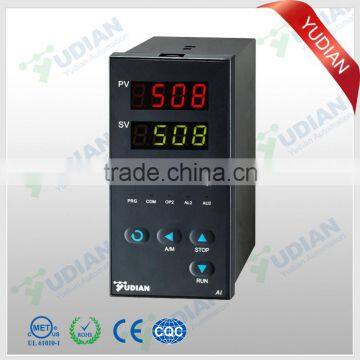

      F: 96*48mm

 Part  3:Output Type

     G: SSR voltage output, capacity  30mA/5VDC

     L: Relay contract output, capacity 2A/250VAC

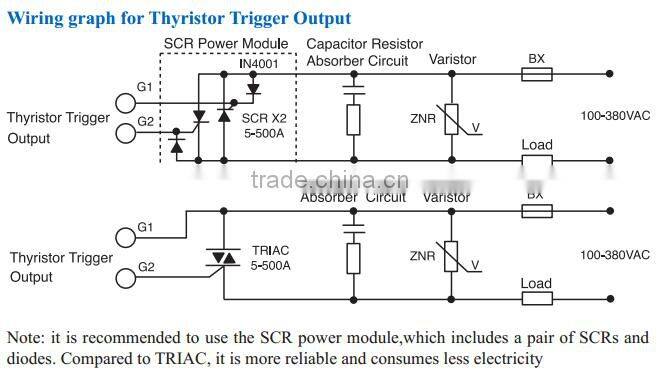

     K1:Single zero crossing trigger output (100-380VAC, can trigger thyristor 5-500A)

     K3: Triple zero crossing trigger output (100-380VAC)

 Part 4:  Alarm

     N: No alarm.

     L0:  1 alarm

     L3:  2 alarm

___________________________________________________________________________

   IV. AI-508 digital temperature controller Installation and wiring:

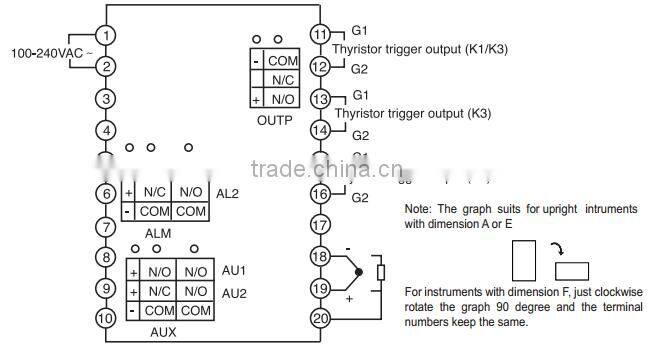

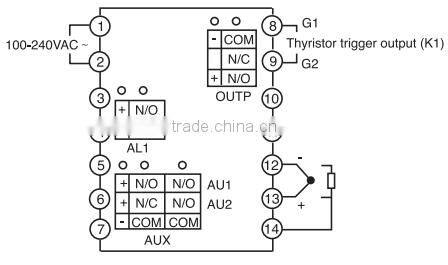

                                   ( Wiring graph for A,E,F size )

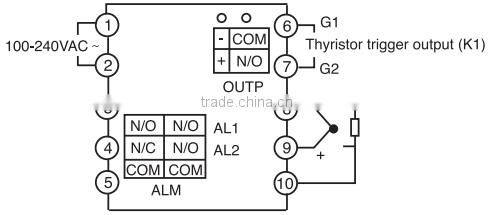

                                   ( Wiring graph for D size )

                                  ( Wiring graph for D2 size )
