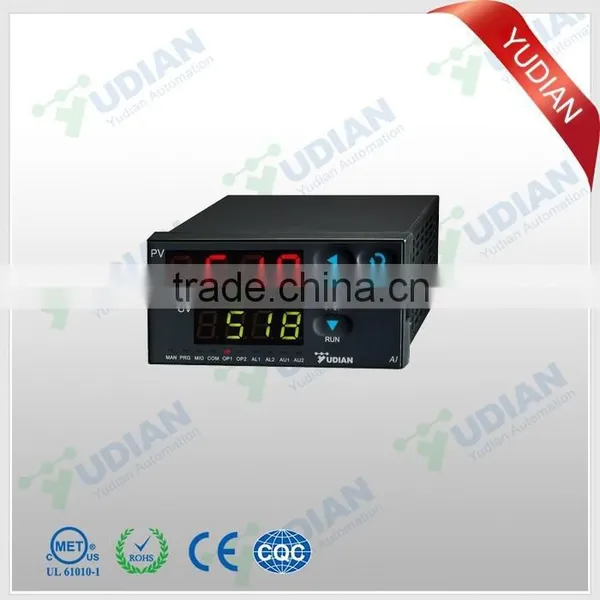

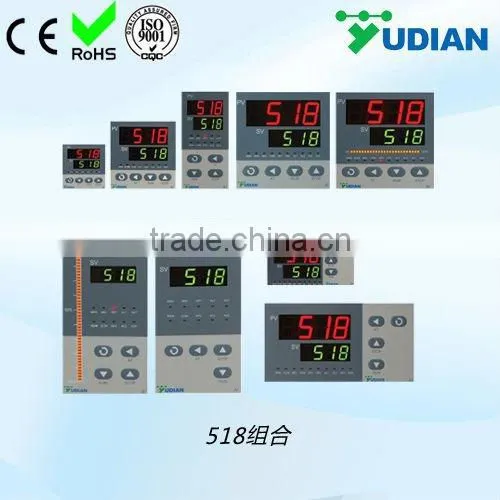

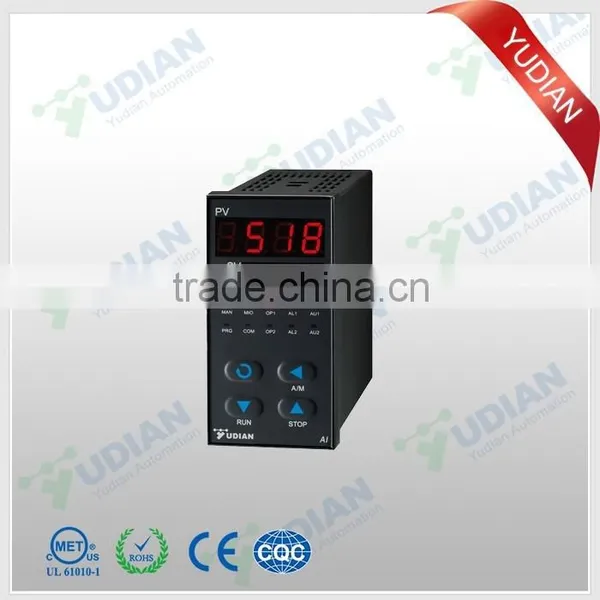

Digital Industrial Process Digital Temperature Controller YUDIAN AI-518

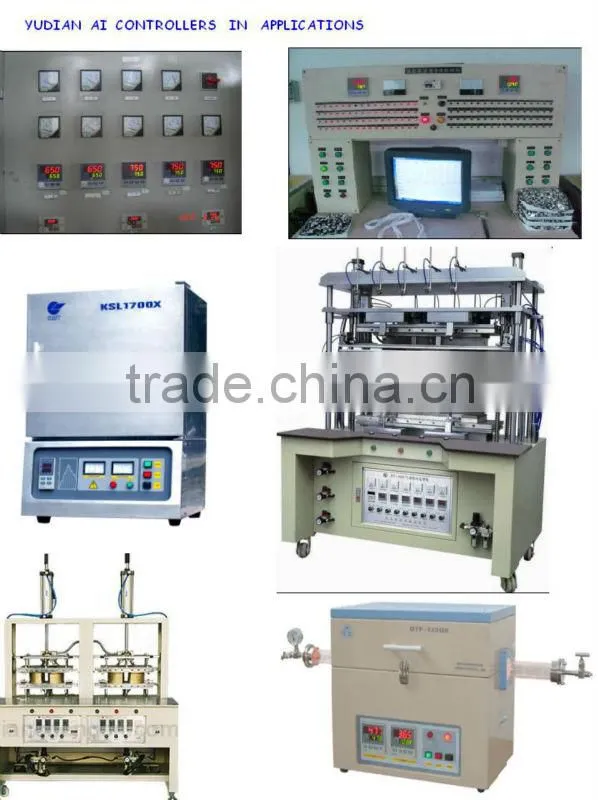

Ideal for accurate controls of temperature, pressure, flow, level, humidity etc
Aslo, we can supply OEM service for you, changing to your assigned logo and color.
1. Main features:
AI-518 High measurement accuracy: 0.25%FS ± 0.1°C
PID, auto tuning, ON/OFF
Universal programmable input
Universal input power- 85-264VAC, or 11-26VAC/VDC
Highly versatile Output, multiple modules available
Wide variety of alarm mode selectable
CE, RoHS, ISO9001 approved
2. Specification:
Control mode |
On-off control mode |
|
Measurement accuracy |
0.25%FS ± 0.1°C |
Resolution |
0.01°C |
Response time |
≤0.3s ( when digital filter parameter dL=0) |
Input |
Thermocouple: K, S, R, T, E, J, N,WRe3~WRe25,WRe5~WRe26 etc |
Resistance temperature detector: Pt100, Cu50 | |
Linear voltage:0~5V,1~5V,0~1V,0~100Mv, 0~20mV, 0~500Mv etc | |
Linear Current:0~10Ma,0~20mA,4~20mA | |
Input range |
Thermocouple: K(-100~1300°C), S(0~1700°C), R(0~1700°C), T(-200~+390°C), E(0~1000°C), J(0~1200°C),B(600~1800°C), N(0~1300°C) |
Resistance temperature detector:Pt100(-200~+800°C) , Cu50(-50~+150°C) | |
|
Output (modularized) |
Relay output (NO+NC): 250VAC/2A or 30VDC/1A |
TRIAC Switch Output | |
TRIAC zero Crossing trigger output | |
SSR Voltage output: 12VDC/30mA (used to drive SSR) | |
|
Linear current output: 0~20mA, 4~20mA (The output voltage of X module ≥10.5V; and that of X3 module ≥10.5V.) | |
General specifications |
Voltage: support AC85-265V,50/60Hz or DC24V. |
Power consumption: ≤3W | |
|
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5. | |
Operating Ambient : temperature -10~60°C; humidity ≤90%RH |

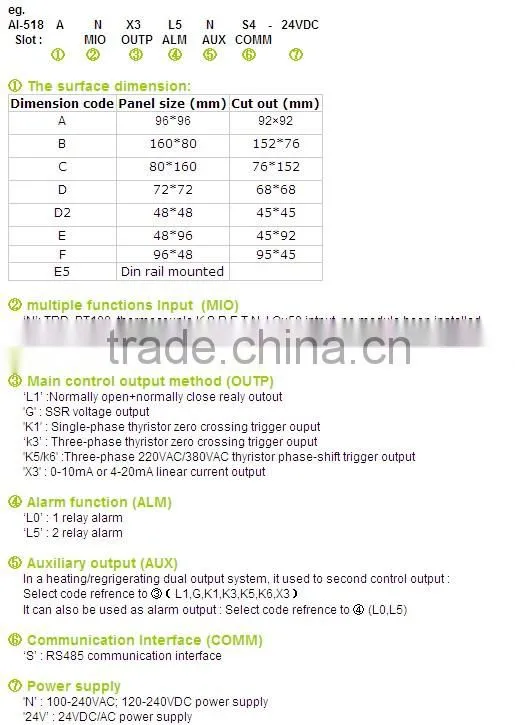

3 .Ordering Code Instruction:
1) Factory with 25 years experience.
2) Quick delivery ( within 3~5 working days).
3) Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4) We provide after sales service and technical assistance as per the customers
requirement and needs.
1. How long will you give me the reply?
we will contact you in 24 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the temperature controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
Temperature controller| temperature regulator| temperature displayer|
