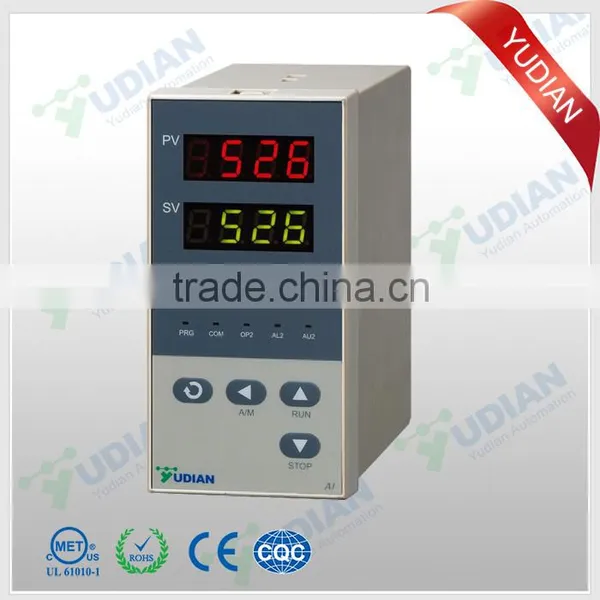

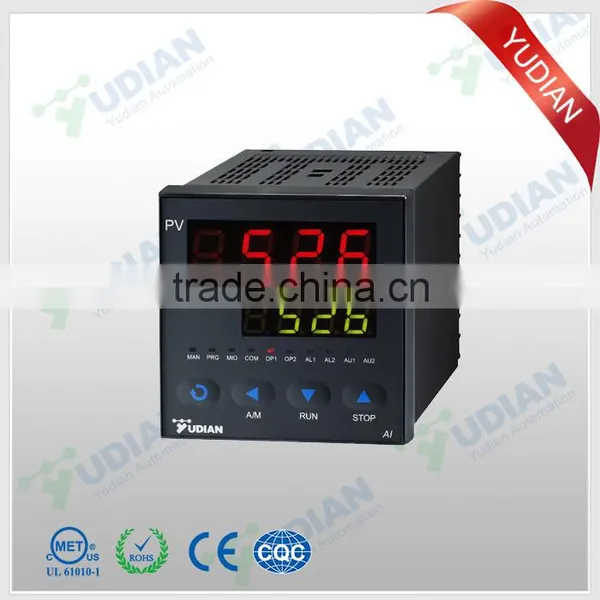

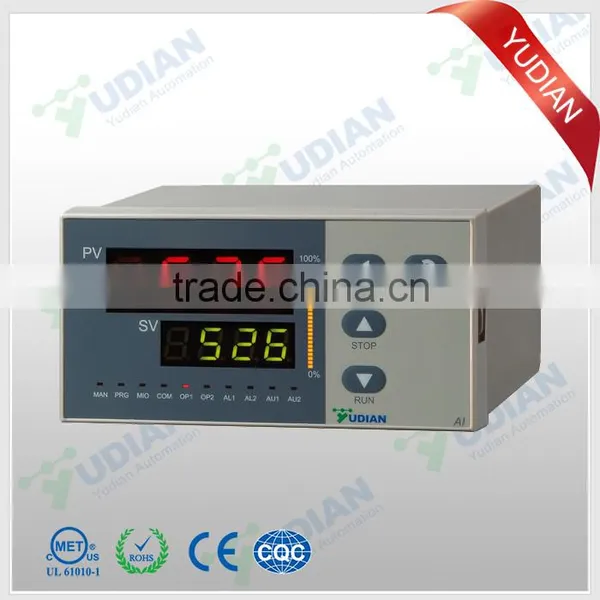

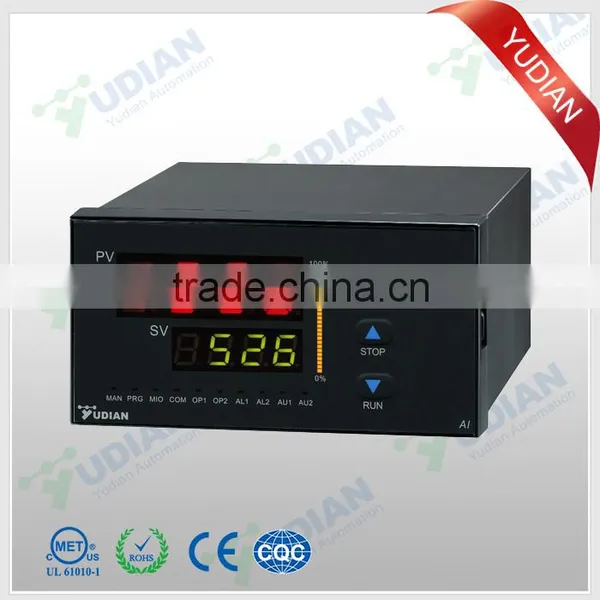

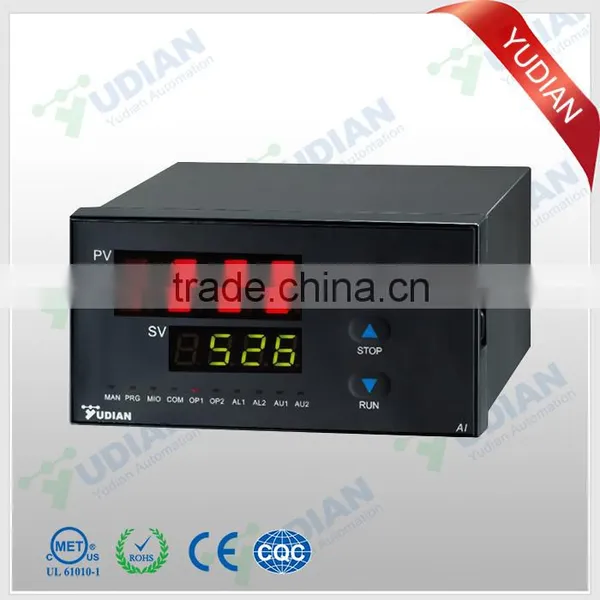

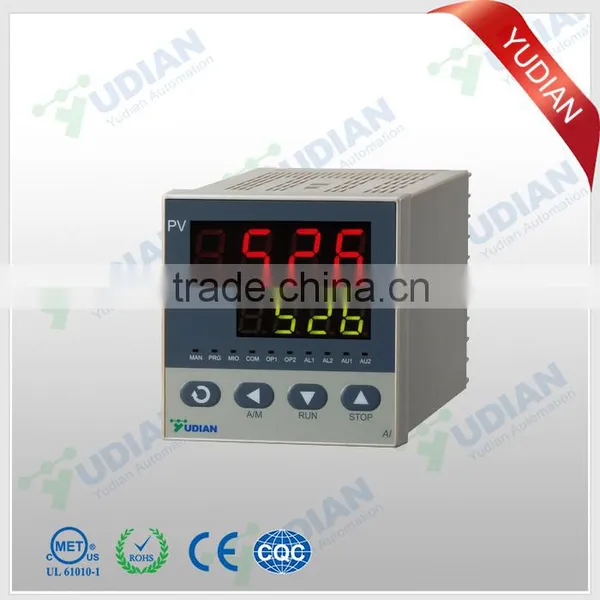

YUDIAN AI-526 PT100 input SSR output Industrial Temperature Controller
Yudian AI-526 PID temperature controller Technical Specification:
1. Input type : K, S, R, E, J, N, Pt100, 4-20mA, 0-5V,0-10V
2. output type: Relay, SSR voltage output
4-20mA current analog output
TRIAC no contact normally open discrete output
Thyristor zero crossing trigger output
Three-phase Thyristor zero crossing trigger output
3. Accuracy : 0.25%FS±1°C
4. Resolution : 1℃ or 0.1 ℃
5. Control mode: On-off control or PID control
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC
8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%

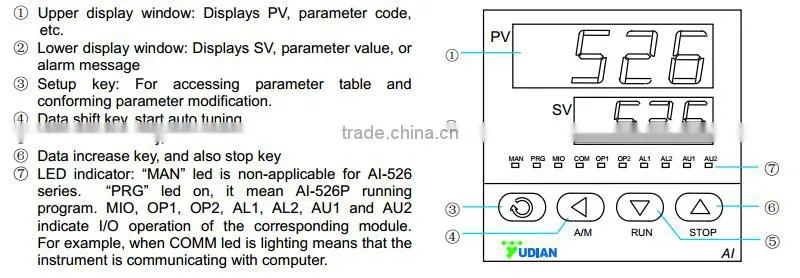

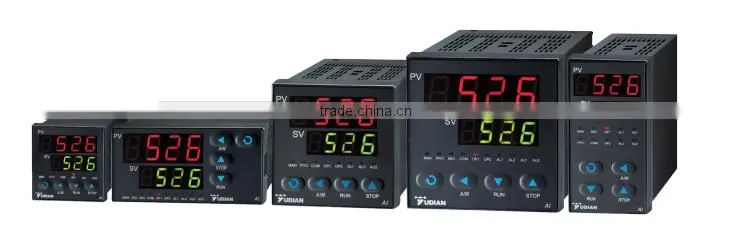

Front panel and Operation:

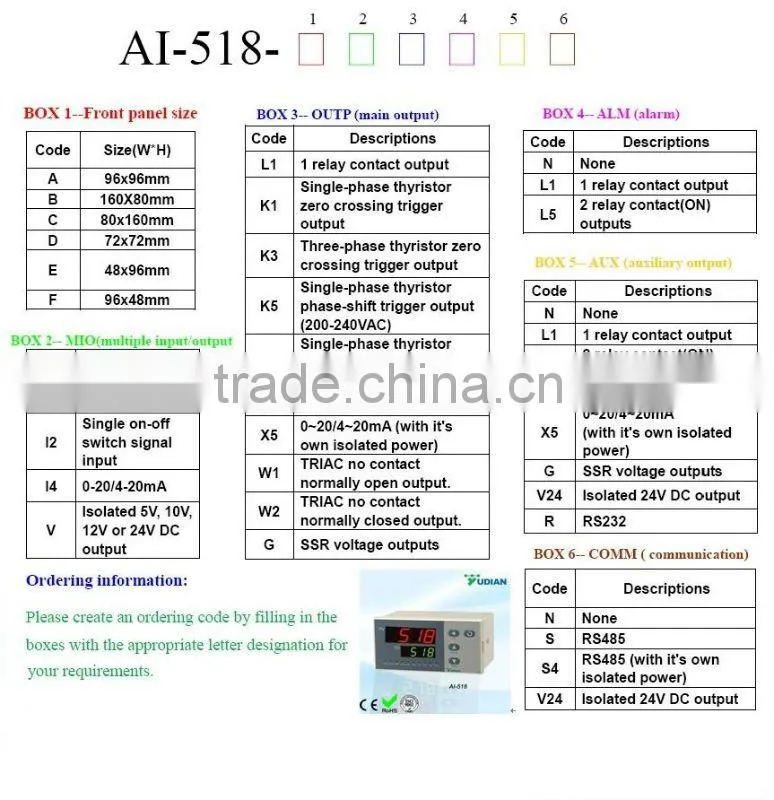

Yudian AI-526/518 PID temperature controller model code:

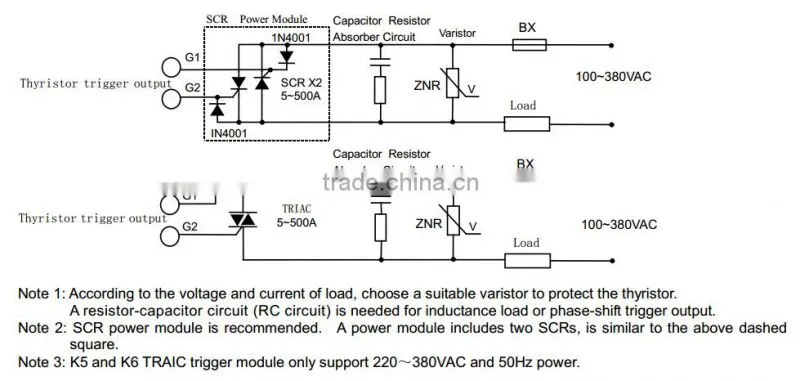

Yudian AI-526 PID temperature controller Installation and wiring:
You will get:
1) A piece of temperature controller;
2) A paper of user manual;
3) One-year/ 3-year warranty card and Quality Approval card;
4) A lable of units;
5) A pair of installaton brackets;
6) Nice package carton box with Yudian logo.
Why choose Yudian?
1) Factory with 25 years experience.
2) Quick delivery ( within 3~5 working days).
3) Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4) We provide after sales service and technical assistance as per the customers requirement and needs.
Yudian Certifications (CE,CQC,UL,ISO9001,RoHS)
