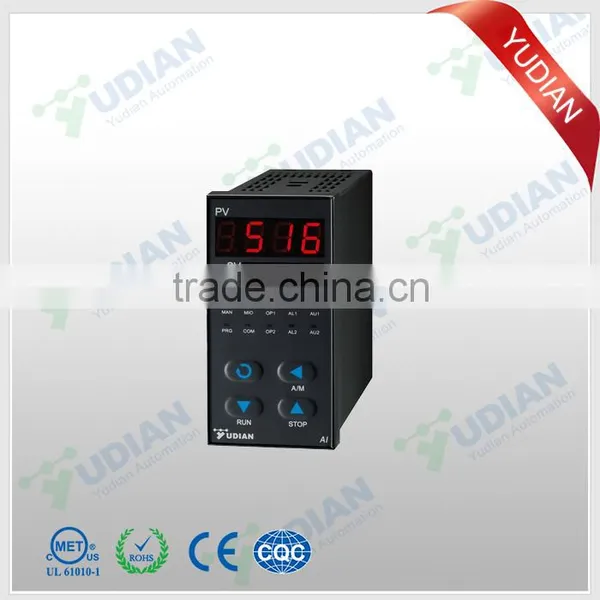

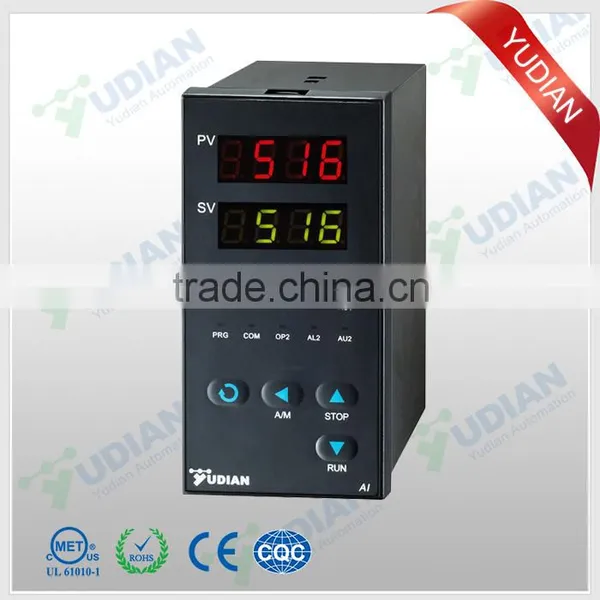

Yudian AI-516 industrial automation digital temperature pid controller
Yudian AI-516 analog output PID temperature controller Technical Specification:
___________________________________________________________________________
I. Technical Specification:
1. Input type : Thermocouple: K,T, E, J, N
Resistance temperature detector: Pt100
2. Instrument Input range :
K, E, J, N :0~+999°C; Pt100: 0~+800°C
3. Measurement accuracy : 0.3%FS±1°C
4. Temperature display resolution : 1 or 0.1 or 0.01
5. Control mode:
On-off control mode , or PID control with the function of parameter auto tuning.
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.
8. Power consumption: ≤2W.
9. Ambient temperature: -10~+60°C, Humidity: 0~90RH%
___________________________________________________________________________
II. Front panel and Operation:
___________________________________________________________________________
III. Model Code:
The ordering code of AI-516/AI-516P (V8.2) series instrument is made up of 9 parts. For example:
AI-516 A N X3 L5 N S4
1 2 3 4 5 6 7
Part 1: AI-516 PID controller
Part 2: Dimension
Part 3: Input Type
N: no module inseted, support K,T, E, J, N, PT100
I4: support 0-20mA/4-20mA analog input
Part 4: Main Output Type
L1: RELAY output
G: SSR output
X3: 4-20mA output
K1/K3: single/ triple zero crossing trigger output

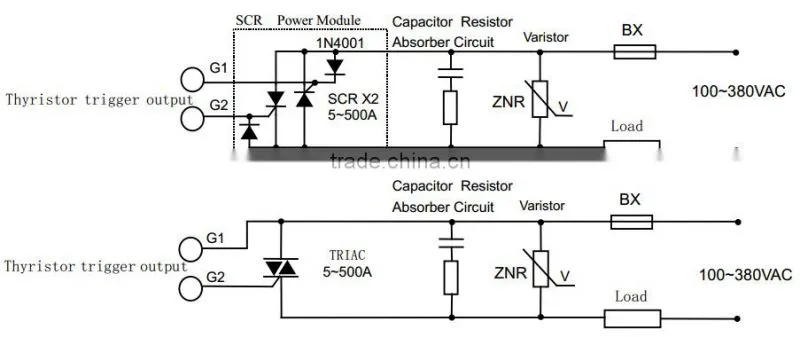

K5/K6: single phase- shifting trigger output 220VAC / 380VAC
Part 5: Alarm
N: no alarm
L0: 1 alarm
L3: 2 alarm
Part 6: Auxillary alarm/ Tansmitter output
N: no alarm
L0: 1 alarm
L3: 2 alarm
X3: 4-20mA transmitter output
Part 7: COMM
S: RS485 communication
___________________________________________________________________________
IV. AI-508 digital temperature controller Installation and wiring:

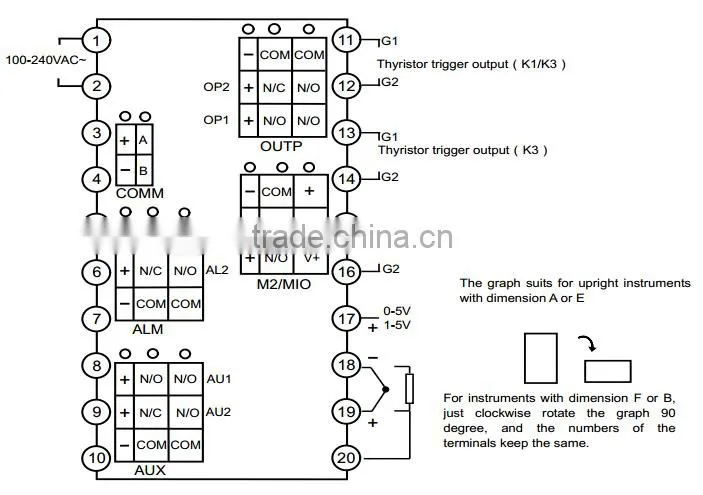

( Wiring graph for A,E,F size )

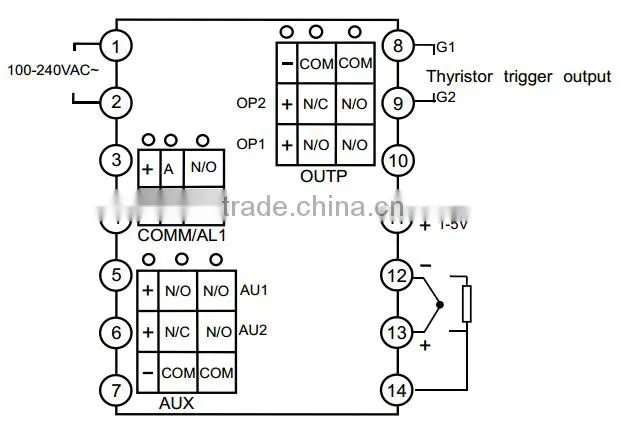

( Wiring graph for D size )

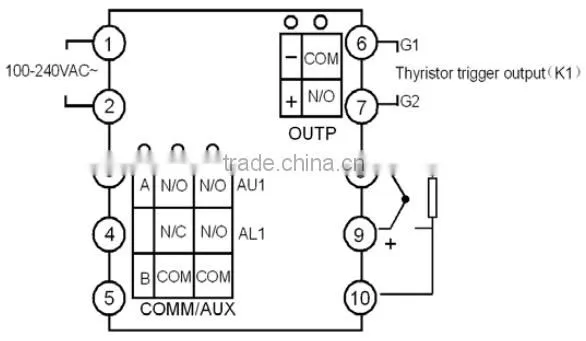

( Wiring graph for D2 size )
___________________________________________________________________________
1) Factory with 25 years ' experience.
2) Quick delivery ( within 3~5 working days).
3) Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4) We provide after sales service and technical assistance as per the customers
requirement and needs.
1:How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2:Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3:How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5:If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
