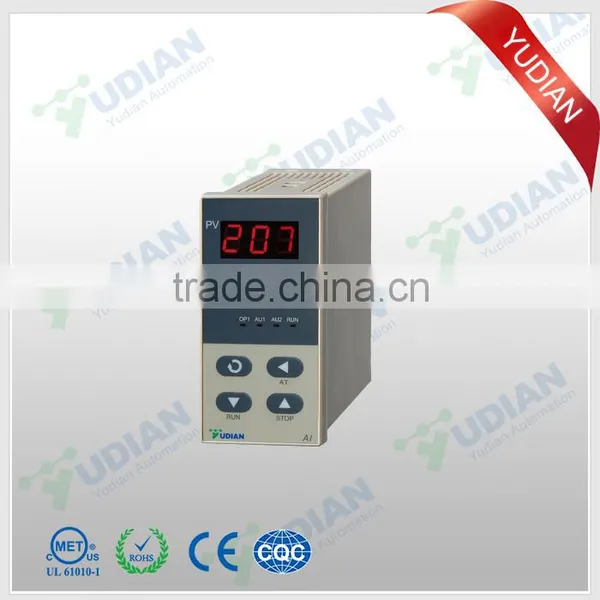

Yudian AI-207 economical temperature controller
Yudian AI-207 economic PID temperature controller
___________________________________________________________________________
I. Technical Specification:
1. Input type : K,T, E, J, N, PT100
2. output type: Relay, SSR voltage output.
3. Accuracy : 0.5%FS±2°C
4. Resolution : 1℃
5. Control mode: On-off control or PID control
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC
8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%
___________________________________________________________________________

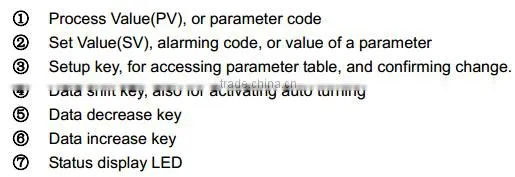

II. Front panel and Operation:
___________________________________________________________________________
III. Model Code:
The type of AI-207 is made up of 4 parts:
AI-207 A1 G L0
1 2 3 4
Part 1:
AI-207 Type PID economic temperature controller, accurancy 0.5%FS±2°C
Part 2: Dimension
Part 3:Output Type
L: Relay output, capacity 2A/250VAC
G: SSR voltage output, capacity 30mA/5VDC
Part 4: Alarm
N: No alarm.
L0: 1 alarm
L3: 2 alarm
___________________________________________________________________________
IV. AI-207 digital temperature controller Installation and wiring:
___________________________________________________________________________
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples of temperature controller?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the temperature controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
