Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine

Dongguan Jingyan Instrument Technology Co., Ltd.
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine thumbnail-1
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine thumbnail-2
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine thumbnail-3
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine thumbnail-4
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine thumbnail-5
Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine photo-1

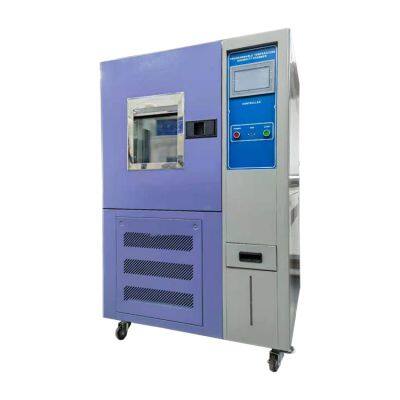

Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine photo-2

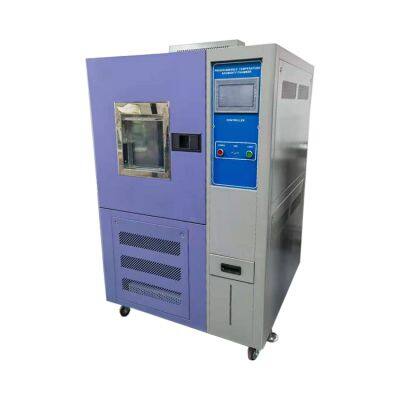

Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine photo-3

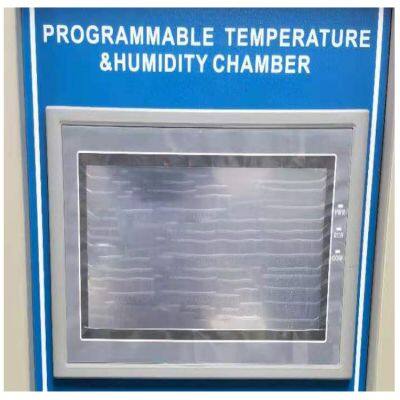

Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine photo-4

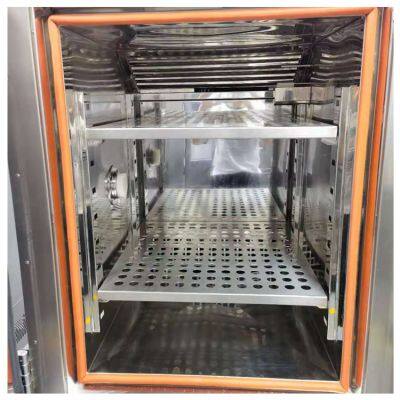

Used Temperature And Humidity Test Chamber High And Low Temperature Test Chamber Climate Aging Testing Machine photo-5
US$ 3500 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JINGYAN
Place of Origin:
China
Model Number:
JY-80LB
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JINGYAN
Place of Origin China
Model Number JY-80LB
Power Electronic
Usage Other, Environmental tester



-1_01.jpg-1_02.jpgApplication:
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Model
JY-80L/JY-80LB/JY-80LC
JY-150L/JY-150LB/JY-150LC
JY-225L/JY-225LB/JY-225LC
JY-408L/JY-408LB/JY-408LC
JY-800L/JY-800LB/JY-800LC
Inner Size
W×H×D(cm)
40×50×40
50×60×50
50×75×60
60×85×80
100×100×80
Outside Size
W×H×D(cm)
93×155×95
100×148×106
117×166×91
140×176×101
170×186×111
Volume (V)
80 L
150L
225L
408L
800L
Temp and Hum Range
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
RH20%-98%



Function
Fluctuation
±0.5°C ±2.5%RH
Deviation
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller
Analytical
Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way
Centrifugal fan-broadband type forced air circulation
Refrigeration Way
Single stage compression refrigeration
Refrigerator
French Tecumseh
Refrigerants
R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way
Air-cooled or water-cooled
Water Supplying Way
Automatic cycling water supply

Safety device
Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system
