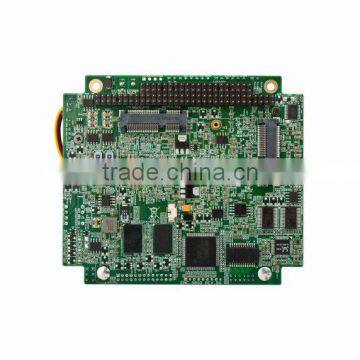

AMD APU T40e PC/104 Embedded Motherboard ENC-5850 Single Board Computer

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHENZHEN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Other, industrial area
Chipset Manufacturer	AMD	Form Factor	Other, PC104
Memory Type	DDR3	Graphics Card Type	Integrated
Hard Drive Interface	IDE, SATA	FSB / HT	800/1066/1333 MHz
Brand Name	YACOO	Model Number	ENC-5850
Place of Origin	Guangdong, China

Product Description

Processor System	CPU	AMD® G-Series APU Duo T40R - 1.0GHz/T40E - 1.0GHz
	CPU Socket	Onboard
	FSB	800/1066/1333 MHz
	Chipset	AMD® eBrazos + Hudson-M1
	BIOS	AMI EFI BIOS
System Memory	Tech Architecture	Dual Channel DDR3 800/1066/1333MHz FSB
	Max.Capacity	Up to 2GB
	Socket	Onboard
Display	Graphic Controller	AMD® Radeon^TM HD6 Series Support DirectX® 11
	LVDS	Support Dual channel 18/24bit
		Resolution: up to 1920 * 1080 (Support 1080P)
	VGA	1 * Onboard VGA pin header
		Resolution: up to 2560 * 1600
	HDMI	N/A
		N/A
	Display Port	N/A
		N/A
	Dual Display	CRT+LVDS
Ethernet	Controller	LAN1: Realtek RTL8111E GbE LAN
		LAN2: N/A
Audio	Controller	Realtek ALC662 HD audio codec (right&left channel+MIC)
Super I/O	Controller	SMSC3114
H/W Monitor	Watchdog Timer	Programmable 1 ~ 255 sec./min,; Support System Reset
	Smart Fan	1 * 3 Pin DC CPU Fan line control
TPM	Controller	N/A
I/O Interface	USB	4 * USB 2.0/1.1 Compatible
	Serial Port	4 * (3 * RS-232, 1 * RS-232 / RS-422 / RS-485)
	Parallel Port	1
	PS/2	1
	GPIO	4-bit GPI and 4-bit GPO
	IEEE 1394	N/A
Expansion Slot	PCIeX16	N/A
	PCIeX4	N/A
	PCIeX1	N/A
	PCI104	1 * PC / 104 ;16 bit ISA Bus Socket
	Mini-PCIe	N/A
	USIM	N/A
Storage	SATA	1 * SATAⅡ, 1 *C-FAST
	SSD	N/A
	IDE	N/A
	eSATA	N/A
	Compact Flash	N/A
Power Source	Power Supply	DC-in 5V/12V
Power Source	Power Consumption	Typical Consumption:12W
Environment	Operating Temperature	20°C ~ 80°C
	Storage Temperature	-20°C ~ 85°C
	Operating Humidity	0% ~ 90% relative humidity,non-condensing
	Storage Humidity	0% ~ 90% relative humidity,non-condensing
Form Factor	Dimensions	PC104(100mm * 96mm)
Form Factor	Weight	N/A
Regulatory Compliance		FCC, CE, VCCI, RoHS compliant
