Intel Cedar Trail N2600/2800 COM Module CMS-560 Computer on Module

Shenzhen Yacoo Technology Co., Ltd.
Intel Cedar Trail N2600/2800 COM Module CMS-560 Computer on Module thumbnail-1
Intel Cedar Trail N2600/2800 COM Module CMS-560 Computer on Module thumbnail-2
Intel Cedar Trail N2600/2800 COM Module CMS-560 Computer on Module photo-1

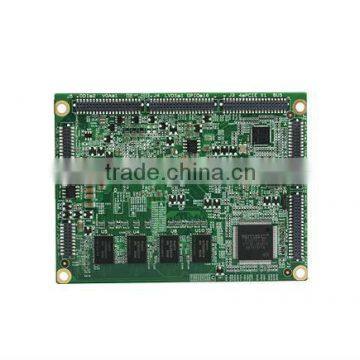

Intel Cedar Trail N2600/2800 COM Module CMS-560 Computer on Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, industrial area
Chipset Manufacturer:
Intel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, industrial area
Chipset Manufacturer Intel
Form Factor Other, 100mm*75mm
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface IDE, SATA
FSB / HT 800/1066Mhz
Brand Name YACOO
Model Number CMS-560
Processor CPU             Intel® Atom™Cedar Trail Processor N2600/2800
SystemCPU SocketOnboard
 FSB800/1066Mhz
 Chipset         Intel® G82NM10
 BIOS           System BIOS:SPI BIOS
System Tech Architecture   Onboard 1GB/2GB DDR3(Optional)
MemoryMax.Capacity   Up to 2GB
 SocketN/A
DisplayGraphic Controller     Intel®Graphics Media Accelerator 3600/3650
 DPMax.Resolution: Up to 1600 * 1200(Optional)
  N/A
 LVDS                   Support single channel 18 bit LVDS
              Max.Resolution:Up to 1366*768
 DVI                     Max.Resolution: Up to 1920 * 1200 (Optional)
  N/A
 HDMIMax.Resolution: Up to 1920 * 1200 (Optional)
  N/A
 VGA1*Onboard standard DB-15 VGA Port
  Max.Resolution: Up to 1920 * 1200
 Dual Display   LVDS + DP,LVDS + VGA, LVDS + HDMI, LVDS + DVI (Optional)
EthernetController     1*Intel® 82574 GbE/Realtek RTL8111E (Optional)

AudioController     Realtek ALC662/883/887 5.1/7.1 HD audio codec

Super I/OController     smsc3114
H/W MonitorWatchdog Timer Timer 1 ~ 255 sec./min.; Support System Reset
 Smart Fan     Supported
TPMController     Supported
I/O Interface   USB           8 * USB 2.0/1.1 Compatible
 Serial Port         2 * RS-232 (3-line TTL),1*RS232 (9-line TTL)
 Parallel Port       Supported
 PS/21 * PS/2
 GPIO20*GPIO
 IEEE 1394Supported
Expansion BUS1 * SM Bus,1 * LPCBus,1 * I2C Bus
SlotPCIeX4N/A
 PCIeX14 * PCIe
 PC104Supported
 PCISupported
 Mini-PCIeSupported
StorageSATA           2 * SATA
 IDE             Supported
 SSDSupported
 eSATA           Supported
 Compact Flash   N/A
Power   Power SupplyDC-in +5V @ 6A
 Power ConsumptionMax.PW: 7W; Standby PW:0.92W
EnvironmentOperating Temp.-20°C ~ 70°C
 Storage Temp.-40°C ~ 85°C
 Operating Humidity0% ~ 90% relative humidity,non-condensing
 Storage Humidity0% ~ 90% relative humidity,non-condensing
Form Factor Dimensions             100mm*75mm
 Weight0.060Kg
Regulatory ComplianceFCC, CE, RoHS compliant
