Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > 3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891

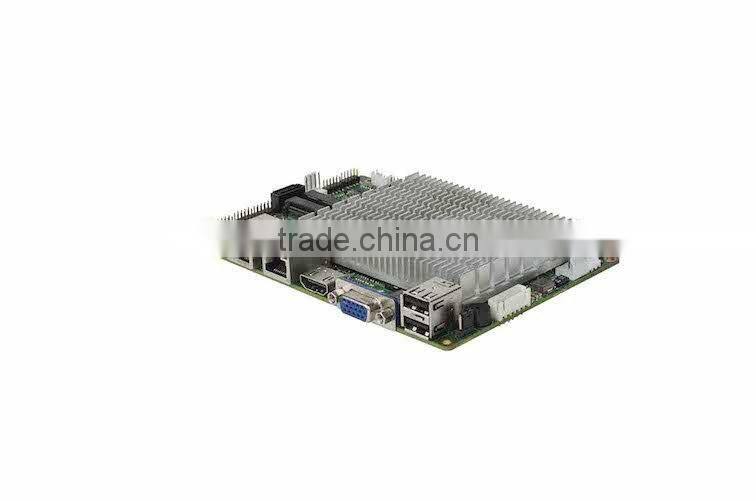

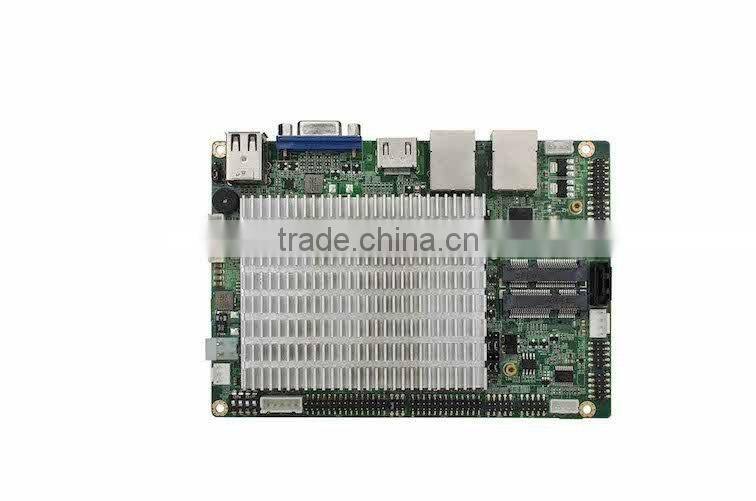

3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891

3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891 thumbnail-1
3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891 thumbnail-2
3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891 photo-1
3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
Yacoo
Contact Supplier Request Quote Chat Now
Shenzhen Yacoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name Yacoo
Model Number ENC-5891
Processor CPU Intel® Atom™Cedar Trail processor N2600 / 2800
CPU Package Onboard
FSB 800 / 1066Mhz
Chipset G82NM10
BIOS 16M BIT SPI BIOS
Memory Architecture DDRIII 800 MT/s and 1066 MT/s
Capacity Onboard 2GB
Socket N/A
Display Graphic Controller Intel®integrated Graphics media accelerator 3600
LVDS Support single channel 18bit output
  Max. Resolution: 1366 * 768
  Support dual channel 24bit output
  Max. Resolution: 1920 * 1200
VGA 1 * DB15 standatd VGA connector
  Max. Resolution:1920 * 1200
HDMI Support HDMI 1.3A type, 19 pin
  Max. Resolution:1920 * 1200
Display Port N/A
  N/A
Dual Display LVDS + VGA,LVDS + HDMI or HDMI + VGA
LAN Controller LAN1: LAN 1: Intel 82583V GbE Lan
    LAN2: LAN 1: Intel 82583V GbE Lan
Audio Controller Realtek ALC662 audio programming decoder(right&left channel + Mic)
Max. amplifier output: 2W
Super I/O Controller WINBOND 83627DHG
H/W Monitor Watch Dog Timer Timer 1 - 255 sec./min., support system reset
Fan Fanless
TPM Controller N/A
I/O USB 6 * USB 2.0 / 1.1 compatible
Serial Port COM1 for RS232, COM2 RS232/RS485 Jumper Optional
Parallel Port 1 * Parallel port
PS/2 N/A
GPIO 12 Bit
SMBUS 1 * SMBus 2.0
Expansion PCIeX16 N/A
PCIeX4 N/A
PCIeX1 N/A
PCI N/A
Mini-PCIe 1 * half size Mini-PCIe, 1 * full size Mini-PCIe, support 3G or WIFI
USIM 1* standard SIM socket
Storage SATA 1 * SATAII, The max. transfer rate: 3Gb/s
M-SATA 1 * half size Mini-PCIe, support SSD
IDE N/A
eSATA N/A
CF Card N/A
Power Power Type DC 12V @ 3A
  Power Consumption Typical Power:10W
Environment Operating Temp. -20°C ~ 70°C
Storage Temp. -40°C ~ 85°C
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Storage Humidity 0% ~ 90% relative humidity, non-condensing
Form Factor Dimensions 3 . 5 ” 145mm x 102mm
  Weight
Regulatory Compliance FCC, CE, RoHS compliant

3.5 inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-58913.5 inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-58913.5 inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891
