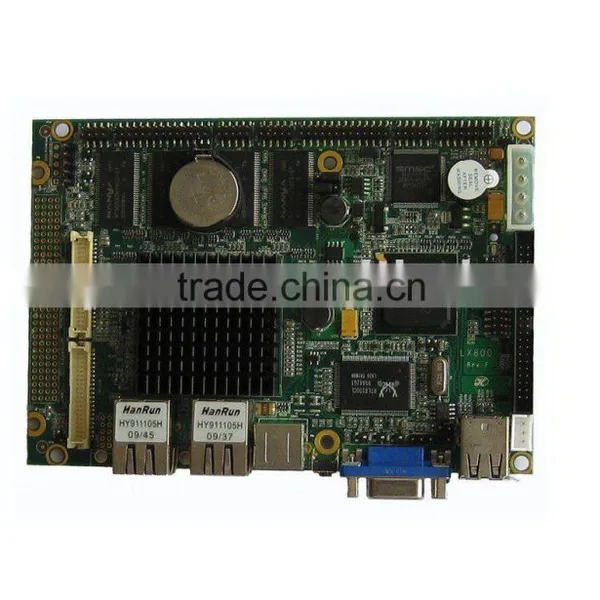

Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > 3.5inch Embedded Single Board Computers ENC-LX800
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
YACOO
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AMD LX800 Embedded Single Board Computers ENC-5800NegotiableMOQ: 1 Piece -
PC104 Single Board Computers ENC-5800NegotiableMOQ: 1 Piece
-
PC104 Embedded Motherboards ENC-5800NegotiableMOQ: 1 Piece
-
AMD LX800 PC104 Single Board Computers ENC-5800 Industrial MotherboardNegotiableMOQ: 1 Piece
-
3.5" Single Board Computer ENC-5835 Embedded MotherboardNegotiableMOQ: 2 Pieces
Products Status
Stock
Type
Embedded Industrial Motherboard
Brand Name
YACOO
Model Number
ENC-LX800
Place of Origin
Guangdong, China
| Specification | |
| Processor | AMD Geode 3 LX800-500MHz CPU,supports 333MHz FSB |
| Chipset | AMD LX800 chipset, built-in 500MHz CPU and display,CS5536B south bridge |
| Memory | Onboard 256MB DDR1 memory |
| USB | 4xUSB 2.0 ports |
| Display | AMD LX800 chipset with built-in 2D graphic, the video can share system memory up to32MB; Resolution is up to 1600x1200@75Hz,and support CRT, TTL/LVDS 18/24BIT LCD,16:9/16:10 wide screen display |
| LAN | RTL8100CL 10/100Mbps self-adapted network card, RJ45 interface with LED |
| extended Bus | 32 Bit PC104+ Bus slot |
| Audio | Reltek ALC655 AC 97’compatible audio card |
| Supper I/O | 6xCOM (COM1-4 are 9 wire standard serial port, COM5-6 are two wire serial port). 1xLPT,3in 3 out GPIO interface, 10 Pin Audio interface, support MIC, Line-out |
| Storage | 1x44PIN IDE, 1xCF card slot(backside) |
| BIOS | AWARD 4Mbit Flash BIOS,Option Boot LOGO |
| Power Supply | +5V 1.4A |
