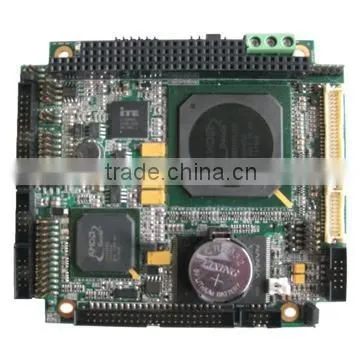

LX800 PC104 Embedded Motherboard ENC-5800

Name: LX800 PC104 Embedded Motherboard ENC-5800
Brand: YACOO
SKU: 131716197

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, industrial fields patient monitor

Chipset Manufacturer:

AMD

Shenzhen Yacoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, industrial fields patient monitor

Chipset Manufacturer AMD

Form Factor Other, PC104 formfactor 96mm*110mm

Memory Type DDR

Graphics Card Type Integrated

Hard Drive Interface IDE, Other, IDE, CF card

FSB / HT 333MHZ

Brand Name YACOO

Model Number ENC-5800

Place of Origin Guangdong, China

Specification
Processor	AMD Geode 3 LX800-500MHz CPU,FSB 333MHz
Chipset	AMD LX800 chipset,built-in 500MHz CPU and Graphics,CS5536B south bridge
Memory	Onboard 256MB DDR1 memory
USB	4xUSB 2.0 ports
Display	AMD LX800 chipset with built-in 2D graphic, the onboard video can share system memory up to 32MB; Resolution is up to 1600x1200@75Hz, and it supports CRT, TTL/LVDS 18/24BIT LCD,16:9/16:10 wide screen display
LAN	RTL8100CL 10/100Mbps self-adopted network card, RJ45 interface with LED indicator
Extended Bus	16 Bit ISA Bus,PC/104 slot
Audio	Reltek ALC655 AC 97’compatible audio card
SupperI/O	SMSC 3116 Supper I/O chip 4xRS232(COM2 can be chosen as RS232/422/485) 1 x LPT, 1 composite KB/MS socket, 8Pin 3 in 3 out GPIO interface, 10Pin Audio port, support MIC, Line-out

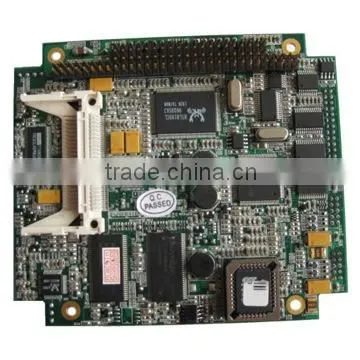

Storage	1x44PIN IDE, 1xCF card slot(backside)
BIOS	AWARD 4Mbit Flash BIOS,Option Boot LOGO
Power Supply	+5V 1.4A/+12V 0.6A
