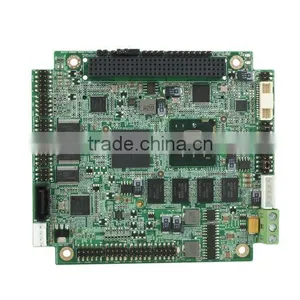

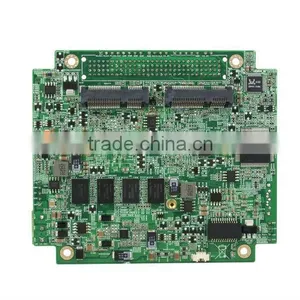

Intel Atom N2600 -1.6GHz (Dual Core) PC104+ Embedded Motherboard ENC-5860

Name: Intel Atom N2600 -1.6GHz (Dual Core) PC104+ Embedded Motherboard ENC-5860
Brand: Yacoo
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Application:	Other	Chipset Manufacturer:	Intel
Socket Type:	Other	Form Factor:	Other	Memory Type:	DDR3
Graphics Card Type:	Integrated	Hard Drive Interface:	SATA	Brand Name:	Yacoo
Model Number:	ENC-5860

Product Description

Processor	CPU	Intel^® Atom^™ N2600 -1.6GHz (Dual Core)
	CPU Package	Onboard
	FSB	DMI x 2 5Gb/s
	Chipset	G82NM10
	BIOS	System BIOS: SPI BIOS
Memory	Tech Architecture	Single Channel DDR3 1066 MT/s
	Capacity	Onboard 2GB DDR3
	Socket	N/A
Display	Graphic Controller	Intel® GMA3600 Graphic Media accelerator
	Dual LVDS	Support dual channel 24bit output, Max. resolution:1920 x 1200
	VGA	VGA Pinheader, max. resolution: 1920 x 1200 @ 60Hz
	Dual Display	LVDS + VGA Synchronous or asynchronous display
LAN	Controller	LAN1: Intel® 82583V Gigabit Network
Audio	Controller	Realtek HD ALC662 audio decoder(right&left channel + Mic)
Super I/O	Controller	SMSC3114
H/W Monitor	Watch Dog Timer	0-255 sec., provide watch dog routine
H/W Monitor	Cooler	Aluminium fanless heat-sink
TPM	Controller	N/A
I/O	USB	4*USB2.0 / 1.1 (Compatible), Max. support +5V@1A
	Serial Port	4* (3 RS-232, 1RS-485,support auto data flow control)
	Serial Port	ESD protection: Air discharge: ±15kV, Contact discharge: ±8kV
	Parallel Port	N/A
	PS/2	N/A
	GPIO	8 bits GPIO, provide routine, freely define I/O,3.3V@24mA level
Expansion Bus	PCI	PC/104 PLUS socket, Max. support 2*PCI devices
	Mini-PCIe	1*Mini-PCIe socket, support PCIe & USB devices
	SMBUS	1
Storage	SATA	1*Standard SATAII, Max. transfer rate: 3Gb/s
Storage	M-SATA	1* Mini-PCIe M-SATA Scoket, support SANDISK protocal, Max. transfer rate: 3Gb/s
Power Supply	Power Type	AT/ATX mode(optional),DC+12V input, support reverse power protection.
Power Supply	Power Consumption	Typical Power: 8W
Working Environment	Operating Temp.	0°C ~ 60°C
	Storage Temp.	-20°C ~ 80°C
	Working Humidity	0% ~ 90% relative humidity, non-condensing
	Storage Humidity	0% ~ 90% relative humidity, non-condensing
Formfactor	Dimensions	115mm x 96mm
Formfactor	Weight	0.12kg
Certificate		FCC, CE, RoHS
