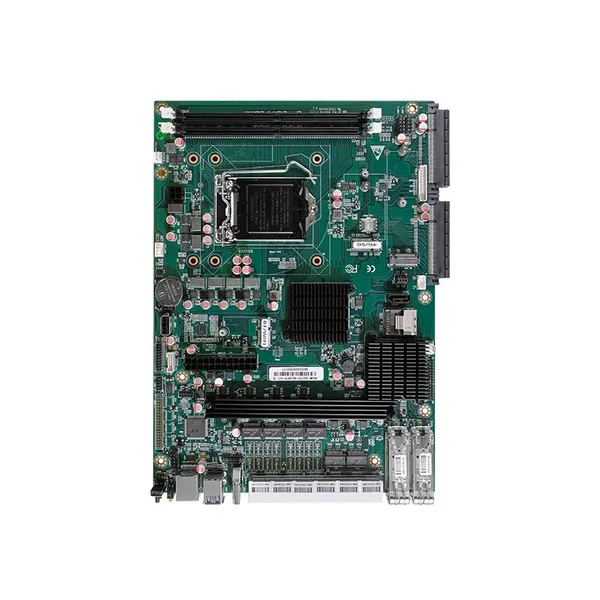

Help CenterNetwork Security Management Motherbord Q270 Intel 8th/9th Gen LGA1151 CPU NSM Board With 6 RJ45 2SFP+, 2*PCIe x8 Expansion
Related Products
-
Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion MainboardUS$ 99 - 159MOQ: 500 Pieces -
Industrial Network PC Motherboard Intel 4th Gen Core I7/i5/i3 CPU SBC With 8*RJ45 2.5GBe 2*SFP+ 10GigabyteNegotiableMOQ: 10 Pieces
-
Network Appliance J6413 4 Cores CPU 6 RJ45 2.5Gbe LAN 2 SFP 1U Rack Mount Firewall PC for CybersecurityUS$ 225 - 248MOQ: 10 Sets
-
1U Rack Mount Network Hardware Computer Intel Celeron J6412 4-Core CPU 6 RJ45 2.5Gbe LAN Firewall/Router/VPN PfSense PCUS$ 205 - 228MOQ: 10 Sets
-
1U Rack Mount Network Hardware Computer Intel Atom D525 1.8GHz CPU 6 RJ45 Gbe LAN Firewall/Router/VPN PfSense PCUS$ 100 - 150MOQ: 10 Sets
Specification
●Intel 6th/7th/8th/9th Gen Core i7/i5/i3, Pentium, Celeron LGA1151 processors
●2* DDR4 memory，Max.128G
●6*intel I226 2.5Gbe RJ45+2*Intel 82599 10Gbe SFP+（option）
●2* PCIE x8（option）
●1*M.2, supports NVME/SATA SSD
●1*SATA3.0，1*SAS(expand 4*SATA)
●1*M.2, supports 4G/5G module
●1*M.2, supports WIFI/BT
●Supports 2 segment Bypass（option）
Specification
CPU |
Intel® 6/7/8/9/10th Generation Core™ i3/i5/i7, Pentium®, Celeron® CPU, FCLGA1151 |
Chipset |
Intel® Q270/C422, TDP 6W |
Display |
1*HDMI+1*VGA(onboard interface) |
RAM |
2*DDR4 LO-DIMM, Max.128GB |
Ethernet |
6*Intel I226V 2.5Gbe RJ45+2*82599 10Gbe SFP+，supports WOL/PXE; 2*PCIe x8 expansion，2 segment Bypass(optional) |
Bypass |
2x segment, LAN1/2 & 3/4 |
Storage |
1*SATA3.0+1*SAS(4*SATA)+1*M.2 NVME/SATA |
Expansion |
1*M.2, supports 4G/5G module + 1*SIM card slot |
1*M.2, supports WIFI6 module | |
Front I/O |
1*Power ON/Reset |
1*PWR/HDD LED Light | |
1*Console(Cisco standard) | |
1*USB3.0 | |
1*HDMI | |
1*RJ45(1X6) | |
2*SFP | |
Inner I/O |
1*HDMI,1*VGA_H |
1*GPIO,16bit; 1*TPM2.0 interface | |
1*AUTO_ON,1*CLR_CMOS,1*J bypass | |
1*LAN_LED | |
1*F_Panel,1*PS/2 | |
2*F_USB2.0+1*USB2.0 | |
BIOS |
AMI UEFI 256M |
Watchdog |
0~255，programmable. Timeout interrupt or system reset |
Power Supply |
4PIN(12VDC) + 24PIN ATX，supports S0、S4、S5；Supports AC power-on auto boot function |
OS |
windows10/11/Linux/RTOS/Ubantu/FreeBSD/CentOS etc. |
HeatSink |
1*CPU_FAN ,2*SYS_FAN, supports 4Pin smart fan |
OTM |
-10℃～60℃ |
STM |
-20℃～70℃ |
Humidity |
（40）℃ （95）%RH non-condensing |
Dimension |
288*207mm |
