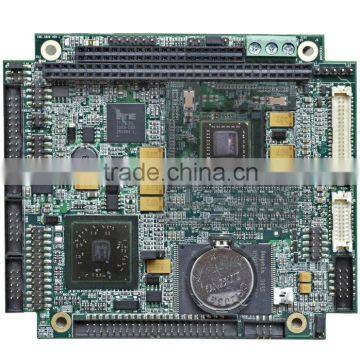

Help CenterAMD Embedded Computer Module ENC-5850
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.5inch X86 Intel Atom N455/D525 Embedded Motherboard ENC-5855 Single Board ComputersNegotiableMOQ: 1 Piece -
Intel Atom N2600 -1.6GHz (Dual Core) PC104+ Embedded Motherboard ENC-5860NegotiableMOQ: 1 Piece
-
3.5 Inch Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891NegotiableMOQ: 1 Piece
-
3.5" Intel Atom Cedar Trail N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891NegotiableMOQ: 1 Piece
-
3.5 Inches Intel Atom N2600/2800 CPU Fanless Embedded Industrial Motherboard ENC-5891NegotiableMOQ: 1 Piece
| Specification | ||
| Processor System | CPU | AMD® G-Series APU Duo T40R - 1.0GHz/T40E - 1.0GHz |
| CPU Socket | Onboard | |
| FSB | 800/1066/1333 MHz | |
| Chipset | AMD® eBrazos + Hudson-M1 | |
| BIOS | AMI EFI BIOS | |
| System Memory | Tech Architecture | Dual Channel DDR3 800/1066/1333MHz FSB |
| Max.Capacity | Up to 2GB | |
| Socket | Onboard | |
| Display | Graphic Controller | AMD® RadeonTM HD6 Series Support DirectX® 11 |
| LVDS | Support Dual channel 18/24bit | |
| Resolution: up to 1920 * 1080 (Support 1080P) | ||
| VGA | 1 * Onboard VGA pin header | |
| Resolution: up to 2560 * 1600 | ||
| HDMI | N/A | |
| N/A | ||
| Display Port | N/A | |
| N/A | ||
| Dual Display | CRT+LVDS | |
| Ethernet | Controller | LAN1: Realtek RTL8111E GbE LAN |
| LAN2: N/A | ||
| Audio | Controller | Realtek ALC662 HD audio codec (right&left channel+MIC) |
| Super I/O | Controller | SMSC3114 |
| H/W Monitor | Watchdog Timer | Programmable 1 ~ 255 sec./min,; Support System Reset |
| Smart Fan | 1 * 3 Pin DC CPU Fan line control | |
| TPM | Controller | N/A |
| I/O Interface | USB | 4 * USB 2.0/1.1 Compatible |
| Serial Port | 4 * (3 * RS-232, 1 * RS-232 / RS-422 / RS-485) | |
| Parallel Port | 1 | |
| PS/2 | 1 | |
| GPIO | 4-bit GPI and 4-bit GPO | |
| IEEE 1394 | N/A | |
| Expansion Slot | PCIeX16 | N/A |
| PCIeX4 | N/A | |
| PCIeX1 | N/A | |
| PCI104 | 1 * PC / 104 ;16 bit ISA Bus Socket | |
| Mini-PCIe | N/A | |
| USIM | N/A | |
| Storage | SATA | 1 * SATAⅡ, 1 *C-FAST |
| SSD | N/A | |
| IDE | N/A | |
| eSATA | N/A | |
| Compact Flash | N/A | |
| Power Source | Power Supply | DC-in 5V/12V |
| Power Consumption | Typical Consumption:12W | |
| Environment | Operating Temperature | 20°C ~ 80°C |
| Storage Temperature | -20°C ~ 85°C | |
| Operating Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity,non-condensing | |
| Form Factor | Dimensions | PC104(100mm * 96mm) |
| Weight | N/A | |
| Regulatory Compliance | FCC, CE, VCCI, RoHS compliant | |
