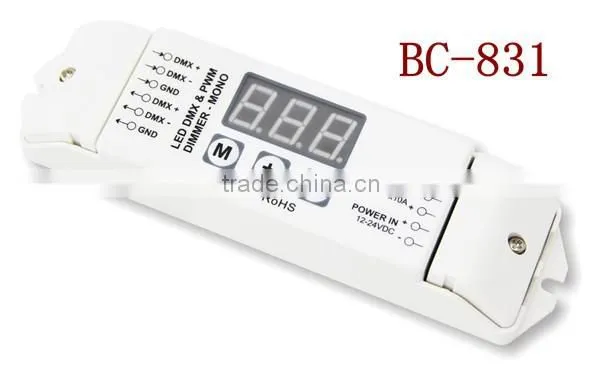

DC12V-24V 1CH dmx to pwm decoder
BC-831 DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. one channel ,max10A each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.
Specification :
|
Model
|
BC-831 |
|
Input voltage
|
DC12V-DC24V |
|
Max load current
|
1CH×10A |
|
Max Output Power
|
120W(12V)/240W(24V) |
|
Grey Scale
|
4096 levels×1 |
|
Input Signal
|
DMX512/1990 |
|
Output Signal
|
Constant Voltage PWM |
|
Decode Channel
|
1CH |
|
DMX512 socket
|
Terminal Block |
|
Dimension
|
L176×W46×H30(mm) |
|
Weight (G.W)
|
168g |
Feature :
1. Automatically adapt input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code..
3. 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.30 changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.
Wiring diagram :

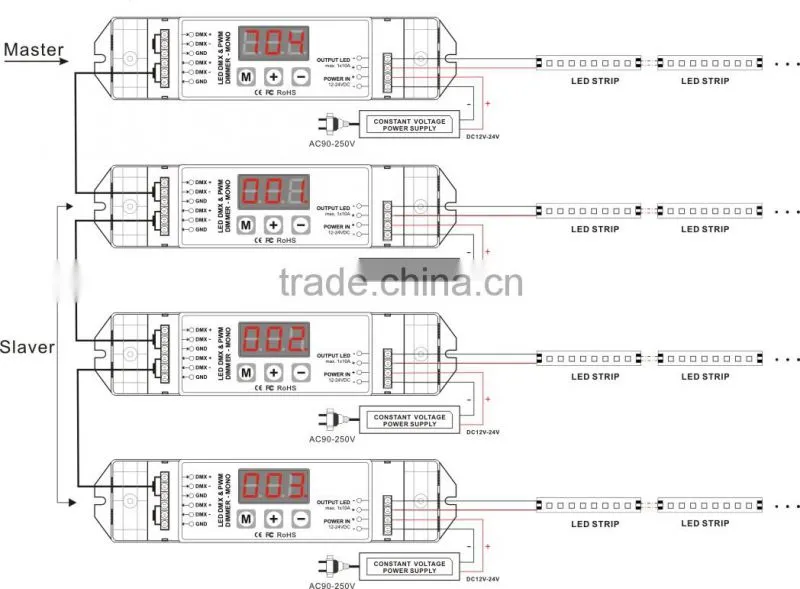

1. Work as master mode:

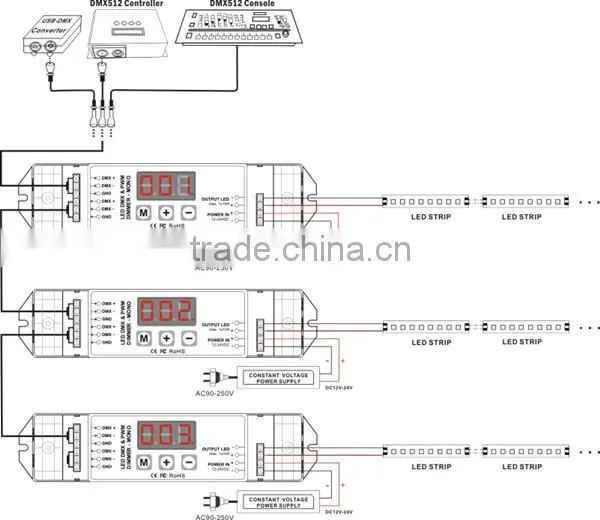

2. Work as slave mode:
