IR Remote 86 Style Wall Led Dimmers for 1w /3w High Power Led

Name: IR Remote 86 Style Wall Led Dimmers for 1w /3w High Power Led
Brand: Bincolor
SKU: 131601193
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Bincolor

Model Number:

BC-320-cc

Zhuhai Bincolor Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

zhuhai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Bincolor

Model Number BC-320-cc

Type Remote Control

Voltage Other, DC12V-48V

IR remote 86 style wall Led Dimmers for 1w /3w high power led

Introduction:

BC-320-CC An intelligent dimmer dedicated to adjust the brightness of LED light, adopted the most advanced

PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can either turn

around the knob manually or use the IR wireless remote control panel to control the brightness infinitely;

Suitable for installation of commercial and household 86-style socket; can install the socket visibly outside the

wall or inside the wall invisibly; it is suitable for dimming hi-power 1W/3W LED lamps and it’s energy-saving.

Feature :

1.Standard 86-style socket, easy to install.

2.Infinite knob style dimming and wireless IR remote dimming, easy to operate.

3.Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual

characteristic. Lamplight soft and stable, without flickers, welcome to compare.

4.Delay OFF button, fluorescent indicator, users friendly.

5.25%,50%,75%,100% , 4 brightness shortcuts.

6.Automatically adapt to DC12V-48V working voltage.

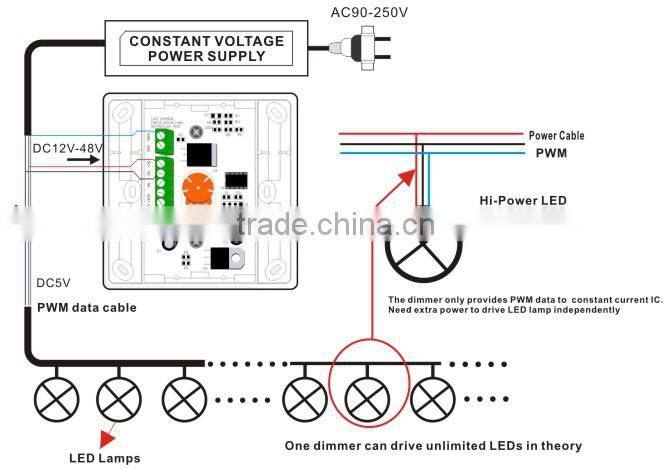

7.Can be equipped with power repeater to expand power.

Specification :

Input voltage	DC12V-DC48V
Output current	350ma/700ma
Output power	12V: 1-3pcs 1W (3w) LED 24V: 1-6pcs 1W (3w)LED 36V: 1-9pcs 1W (3w)LED 48V: 1-12pcs 1W (3w)LED
Scale level	4096 levels
Dimension	L 87 x L 87 (mm)
