3 Channels DMX-512 Decoder Controller for RGB LED Lamp Light Multi-functional Full-color Controller
Introduction:
BC-803 constant voltage rgb dmx512 decoder convert the universal standard DMX512/1990 signal into most
advanced PWM (pulse-width-modulation) digital driving signal, it allows user to choose 1~3 output channel,
256-level brightness control, max 512 output channels. This compact decoder connects to light
console, analog device and various Led terminal products such as RGB Led lamps, RGB Led tubes,
Feature:
1.Input standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.3 output channels, 256 scale each, RGB driving control.
4.10 self-changing modes, 8 speed levels.
5.Max output 5A*3CH.
6.Power loss memory function.
Specification:
|
Input voltage
|
DC12V-24V |
|
Max load current
|
5A/CH×3 |
|
Output Power
|
180W/360W(12V/24V) |
|
lInput signal
|
DMX512/1990 |
|
Output signal
|
constant voltage pwm signal |
|
Scale levels
|
256 levels |
|
DMX512 socket
|
standard XLR-3R |

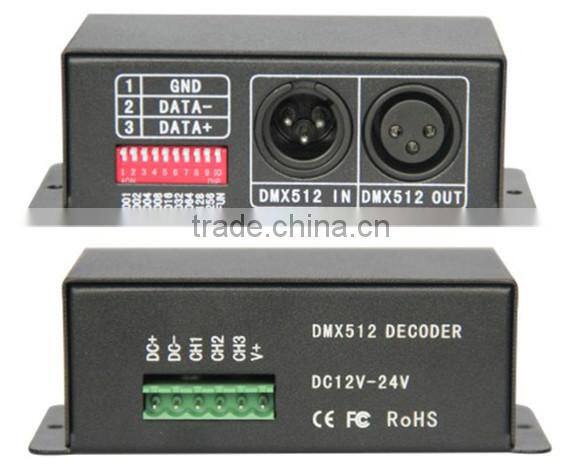

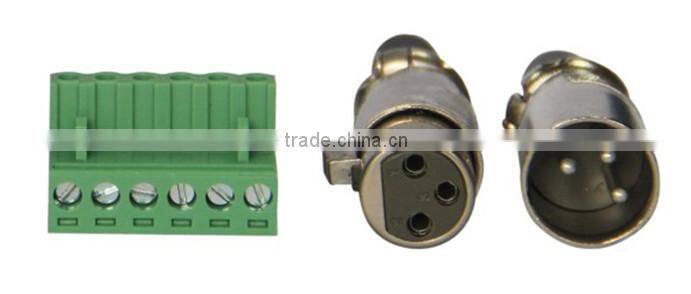

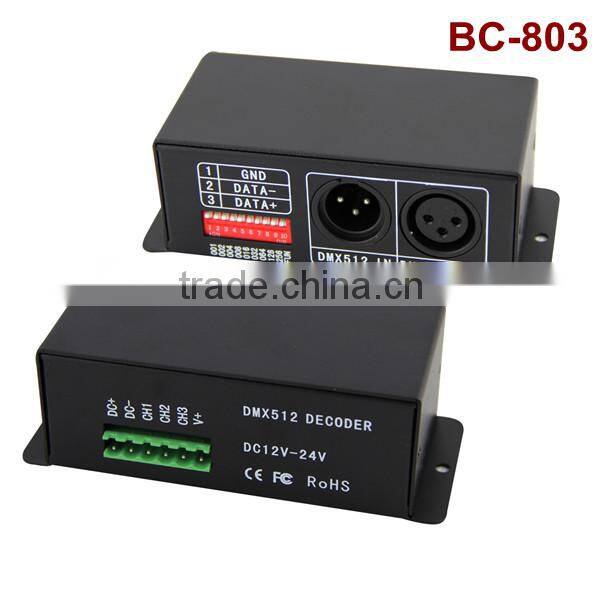

Product show:
Wiring diagram :

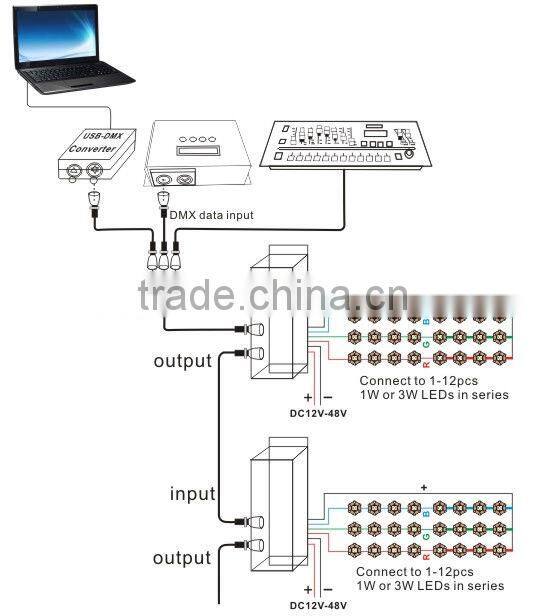

Connect to DMX system:
