12V-24V led volt mini dimmer rf remote panel
Introduction:
LED intelligent dimmer is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present. It’s suitable for adjusting the brightness of low-power and hi-power LED illumination lights LED bar, LED lamp tape, SMD soft light bar, wall lamp, LED spotlights, LED lamp, LED droplight etc.
It’s real 0~100% brightness adjusting, 4096 scale levels. It works more advantageous especially in low brightness. Welcome to compare.
Product parameter:
Model |

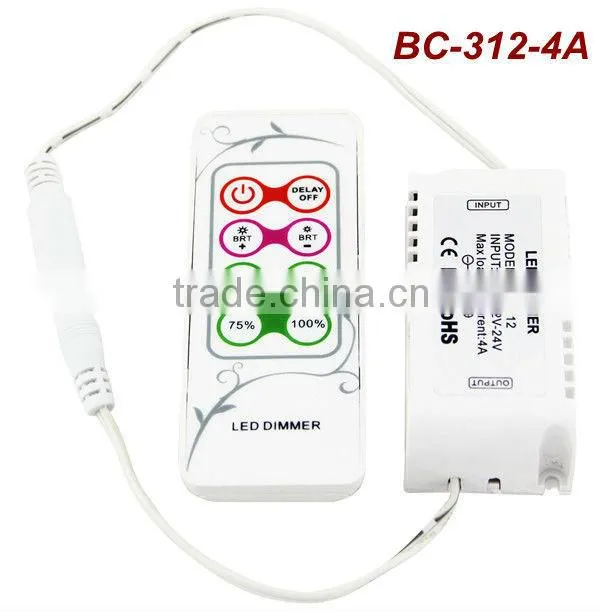

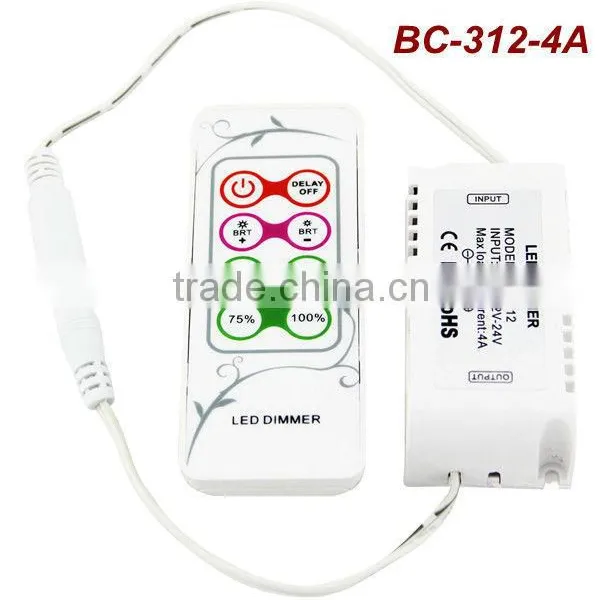

Constant Voltage BC-312-4A |
Input power |
DC12V~DC24V |
Output signal |
Constant voltage PWM |
Max load current |
4A |
Output power |
48W(12V) 96W(24V) |
Dimming range |
0-100% |
Grey step |
4096 levels |
Remote control distance |
RF, 30m with obstacles;60m without obstacles |
Switch size |
L72xW36x H25(mm) |
Gross weight |
90g |
Feature function:
1.Automatically adapt to LED light which works from DC12V-24V.
2.Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic.
Lamplight soft and stable, without flickers, welcome to compare.
3.Delay off button, LED Indicator, users friendly.
4.25%,50%,75%,100% 4 brightness shortcuts.
5.Flexible, easy to install.
6.Working with power repeater to expand power output unlimitedly.
7. Power loss memory function.
Typical Wiring Schematics:

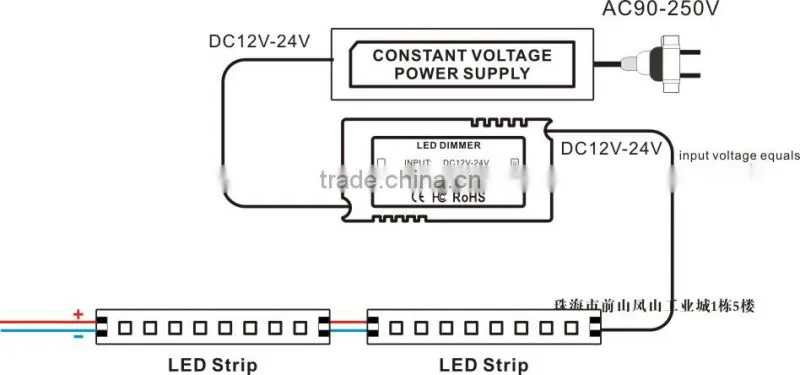

1. LED dimmer BC-312-4A LED strips.

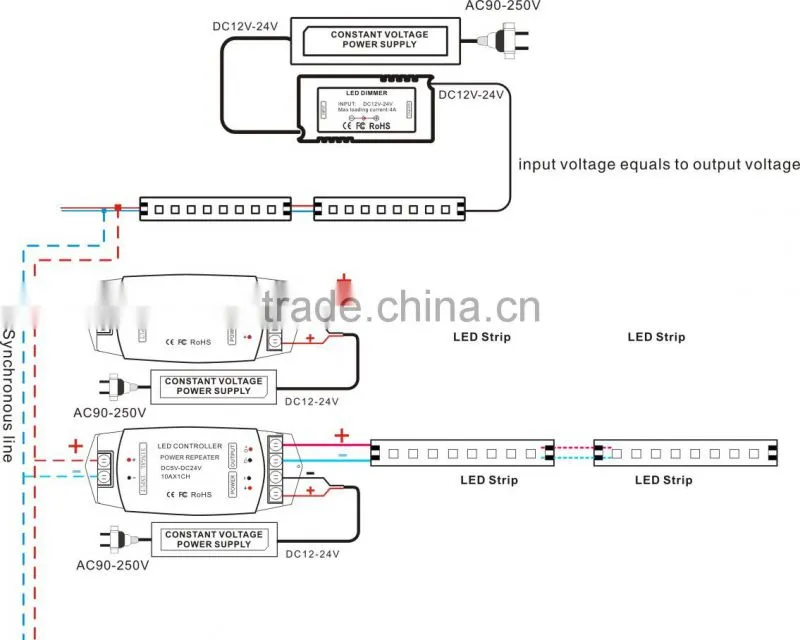

2.Led dimmer BC- 312-4A , LED power repeater BC-960 and RGB LED strips.
