Specifications

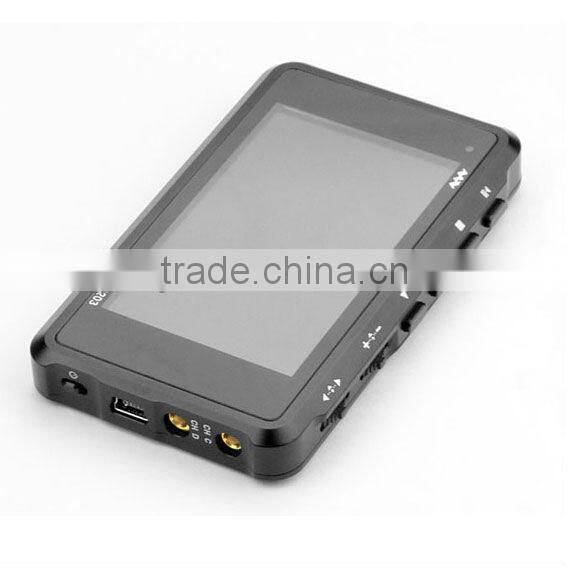

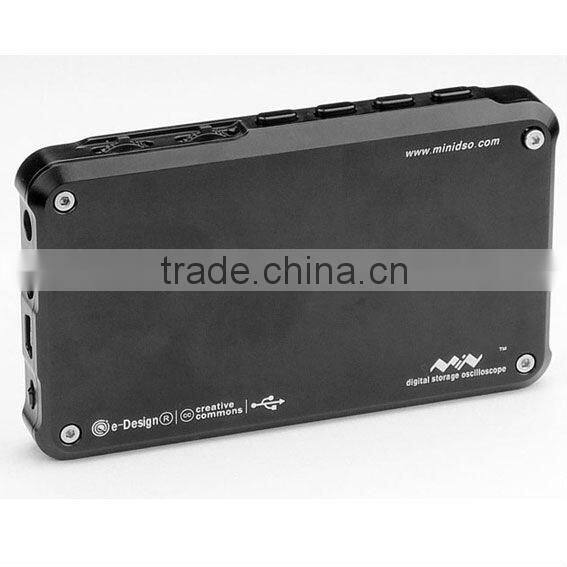

DSO203 Nano Mini DSO Pocket Size Digital Oscilloscope DS203DSO203 Nano Mini DSO Pocket Size Digital Oscilloscope DS203
Feature

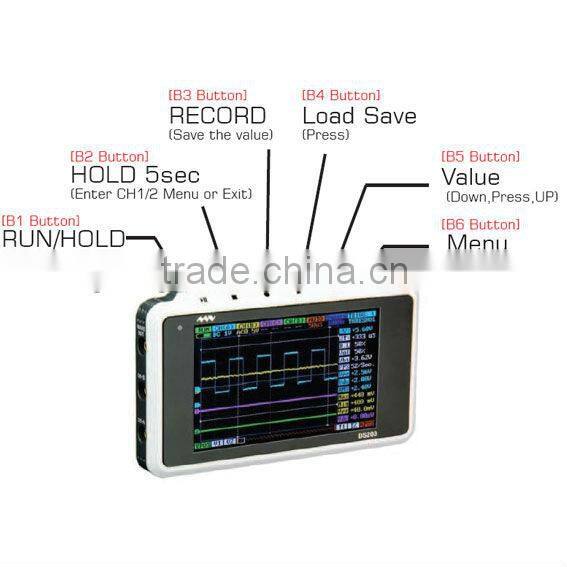

1)3" 240 × 400 widescreen color TFT LCD screen

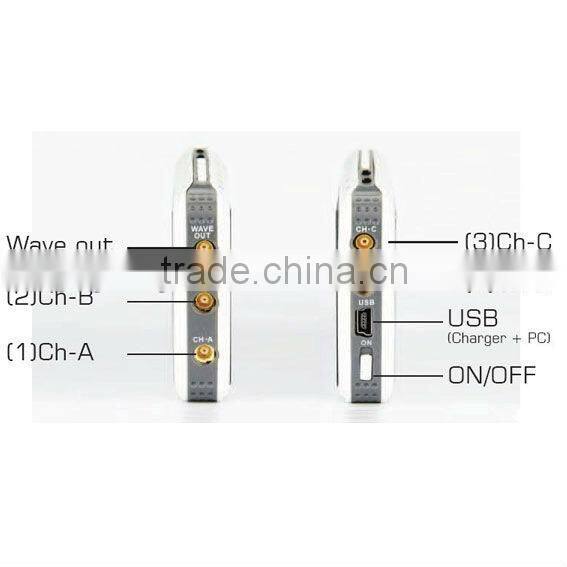

2) 2 probe connectors
3) 4 inputs & 4 tracks (Two 72Mhz analog channels and two digital channels)
4) A custom waveform output (including the built-in sine, square, triangle)
5) Built-in 2M USB disk
6) Very low power consumption
7)Signal Generator; Auto Measurement;Various Triggering Option
8)Open source
Specification
Analog channel * 2 |
[CH_A] [CH_B] |
Digital channel * 2 |
[CH_C] [CH_D] |
Vertical Scale |
20mV-10V/div (1-2-5 step) on x1 probe / 200mV -100V/div (1-2-5 step) on probe |
Vertical resolution |
8 bit |
Input coupling |
AC/DC |
Max input voltage |
80Vpp (x1 probe) / 400Vpp (x10 probe) |
Storage |
4K per channel / 8K on single channel |
Software trigger type |
edge, pulse, level (to be added) |
Hardware trigger type |
edge |
Trigger source |
CH1/CH2/EXT |
Trigger mode |
Auto, Normal, Single, SCAN, None |
Test Signal generater |
10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave |
Storage |
internal 2MB USB disk, BMP, DAT file |
Auto measure |
Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty |
Cursor measurement |
Level, Voltage |
Display mode |
CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2 |
Sampling mode |
real time |
Sampling rate |
30S/s - 72MS/s |
Power |
Lipo battery |
Dimension |
98 * 60 * 14.5 (mm) |
Package list:
1 x DSO203(Built-in battery)
2 x Probe
1 x Mini USB
1 x Free Bag
