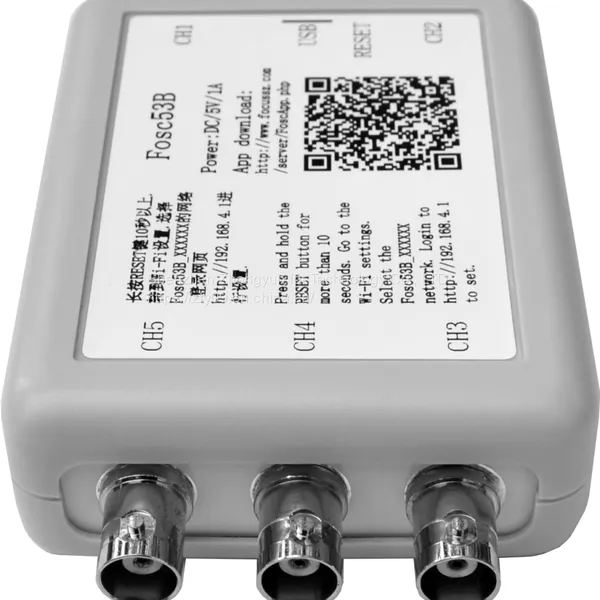

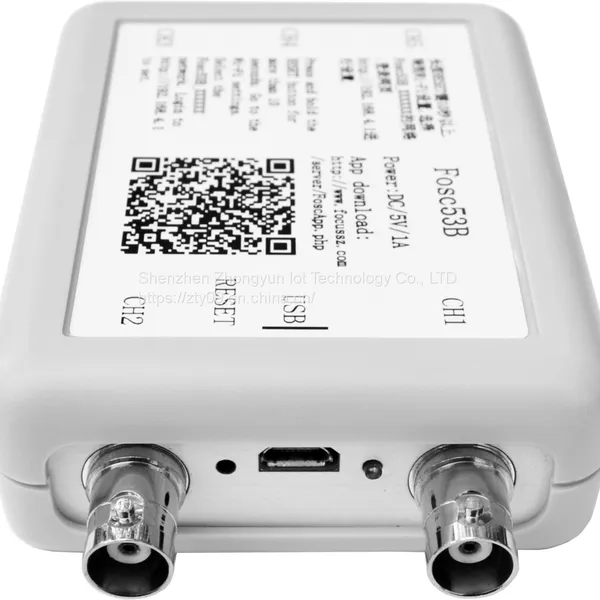

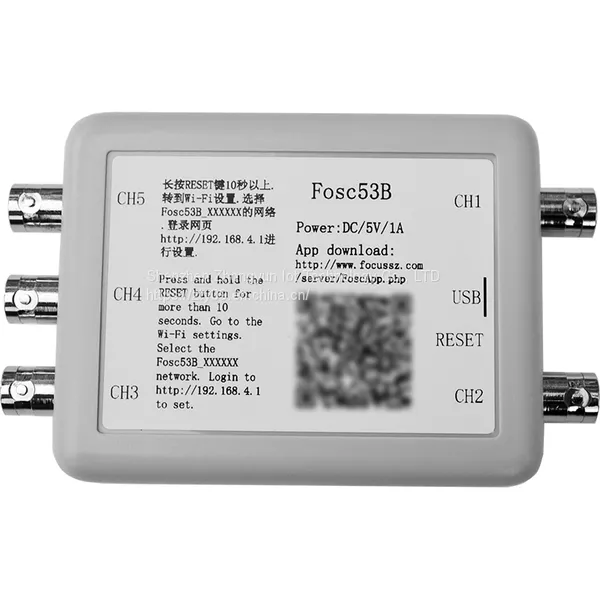

Help CenterFosc53B Wireless WiFi 5-channel USB Oscilloscope 150K Sampling Rate DIY Electronic Research and Development Maintenance Testing
Related Products
-
Oscilloscope Accessories DIY Attenuator General BNC Interface Fatt-xxx Attenuating Voltage Signal Specifications OptionalNegotiableMOQ: 1 Piece -
Fosc53B Wireless WiFi 5-channel USB Oscilloscope 150K Sampling Rate DIY Electronic Research and Development Maintenance TestingNegotiableMOQ: 1 Piece
-
Multipurpose Car Repairing Workshop Tool CabinetNegotiableMOQ: 1 Set
-
Repair Car Body Dent Repair Spotter Dent Pulling Machine Auto Body Repair Dent Puller Body Sheet Metal 0.6-1.2mm 200-4200A 0-99SNegotiableMOQ: 1
-
Heavy-Duty Automotive Workbench - 1000 Lbs Capacity Steel Workbench for Car Repair ShopsUS$ 200 - 600MOQ: 5 Sets
>> Functions
· The Fosc53B is a computer oscilloscope that includes "software running on (Windows) computers" and "oscilloscope." The software and oscilloscope can be connected wirelessly, enabling physical isolation of the test site from the operators operating site, such as high-voltage devices that cannot be accessed by the debugger, devices in hazardous environments, devices in motion, and devices that are susceptible to interference. It can not only be Wi-Fi wireless connection, but also retains the USB connection, when the Wi-Fi signal is not smooth, you can use USB to connect the computer to work.
· 5 channel input, synchronous display
· Automatic measurement of amplitude, 4 measurement modes optional
· Input capture (trigger) function
· Any channel can be set as a capture (trigger) source
· Can set rising or falling edge capture (trigger) signal
· Capture (trigger) signal level adjustable
· Data can be saved to the computer, automatically transferred to the saved data when the software is started
· Data can be backed up, and later at any time to view the backup data waveform
· Can display any two channels of differential signal
· Lock signal to expand and compress waveforms up to 93 hours
· Suitable for monitoring the operation of electrical equipment for a long time and archiving
· Suitable for collecting and archiving data such as temperature, humidity and light for a long time
>> Technique parameters
· Wireless Communication: Wi-Fi 2.4G
· Interface type: Micro USB 2.0
· Signal input interface type: BNC interface, connected with the oscilloscope probe line
· Maximum sampling rate: 150 kHz
· Operating voltage: 5 V Micro USB interface power supply
· Consumption current:
· Measurable frequency range: 0Hz-----50 kHz
· Amplitude adjustment range: 10 mV/DIV-----1 V/DIV
· Input impedance: 1 MΩ (=0.5V/DIV)
· Maximum measurement voltage: ±8 V, ±80 V for probe X10
· Amplitude error: ±2.5%
· Time domain range: 100 uS/DIV-----10800 S/DIV
· Data recording and storage depth: 8388608 * 5
· Maximum record and save data time: 93 hours
· Host size: 115mm * 70mm * 29mm
