3.5 "TFT Handheld Digital Storage Oscilloscope(20MHz)
- 3000 Set / Sets per Month
- HK/XiaMen
- Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | KANGPUT | Model Number: | HDS1021M |
Product Description

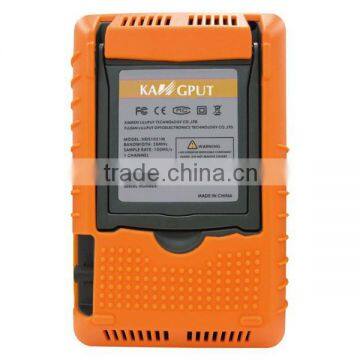

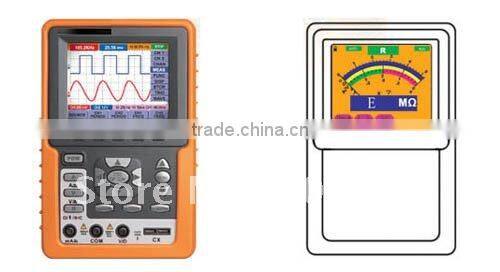

Kangput HDS Series Handheld Digital Storage Oscilloscope
Applications:
electronic circuit debugging circuit testing design and manufacture
education and training automobile maintenance and testing
Performance Specifications
Model | HDS1021M |
Bandwidth | 20MHz |
Sample Rate (real time) | 100MS/s |
Horizontal Scale (s/div) | 5ns/div~100s/div, step by 1~2.5~5 |
Rise Time (at input, typical) | ≤17.5ns |
Display | 3.5'' color TFT display (320 × 240 pixels) |
Channel | single |
Input Impedance | 1MΩ ± 2%, in parallel with 18pF ± 5pF |
Record Length | max 6K points on each channel |
Interpolation | sin (x) / x |
Probe Attenuation Factor | 1X,10X,100X,1000X |
Input Coupling | DC, AC, and GND |
DC Accuracy (average) | average > 16 : ± (3% reading + 0.05div) for V |
Vertical Sensitivity | 5mV/div~5V/div (at input) |
Vertical Resolution (A/D) | 8 bits |
Max Input Voltage | 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II |
Trigger Type | Edge, Video |
Trigger Mode | Auto, Normal, Single |
Trigger Level | ± 6 divisions from screen center |
Acquisition Mode | Sample, Peak Detect, and Average |
DC Gain Accuracy | ± 3% |
Automatic Measurement | Vpp, Vavg, Vrms,, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B |
Waveform Storage | 4 waveforms |
Communication Interface | USB |
Power Supply | 100V-240V AC, 50 / 60Hz |
Li-ion Battery | 7.4V, 6 hours’ operation |
Dimension (W × H × D) | 180 × 115 × 40 (mm) |
Weight (without package) | 645 g |
Multimeter Specifications
Full Scale Reading | 3 .3/4digits(max4000 count) | Diode | 0V-1.5V |
Input Impedance | 10MΩ | On/Off Test | <50(+-30)beeping |
Voltage | VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 400V (virtual value) | ||
Current | DC : 40mA, 400mA : ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits) | ||
Impedance | 400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits) | ||
Capacitance | 51.2nF~100uF : ±(3% ± 3 digit) |
Features:
2 in 1 (DSO+Multimeter)
Auto-scale function
20 automatic measurements
Bandwidth : 20MHz
USB data transmission supported
Rechargeable Li-ion battery (6 hours’ backup)

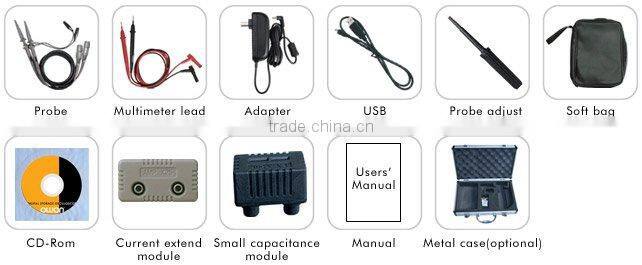

Accessories
