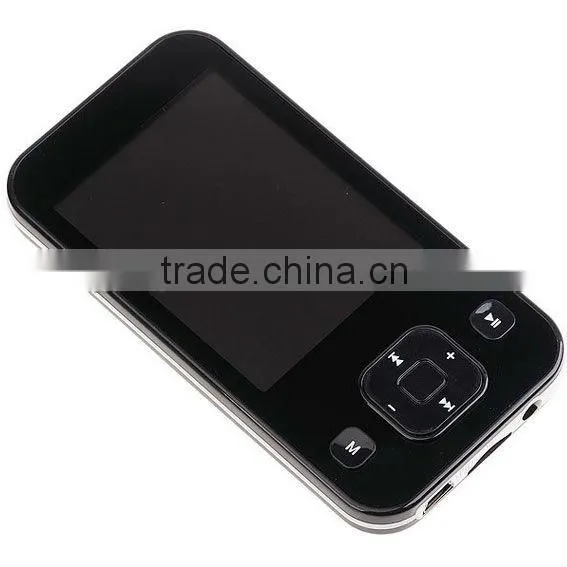

2.8'' Pocket Oscilloscope ARM DSO201 DSO Nano SKD STM32 Pocket-Sized 2Msps

Name: 2.8'' Pocket Oscilloscope ARM DSO201 DSO Nano SKD STM32 Pocket-Sized 2Msps
Brand: DSO nano
SKU: 130777653

US$ 60 - 80 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DSO nano

Model Number:

DSO201

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DSO nano

Model Number DSO201

Specifications

DSO203 Nano Mini DSO Pocket Size Digital Oscilloscope DS203

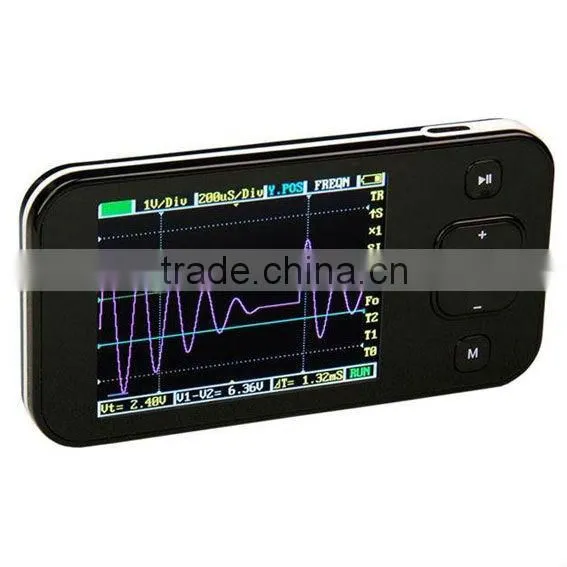

2.8'' Pocket Oscilloscope ARM DSO201 DSO Nano SKD STM32 Pocket-Sized 2Msps

Display	2.8″ Color TFT LCD
Display Resolution	320×240
Display Color	65K
Analog bandwidth	0 - 1MHz
Max sample rate	1Msps 12Bits
Sample memory depth	4096 Point
Horizontal sensitivity	1uS/Div~10S/Div (1-2-5 Step)
Horizontal position	adjustable with indicator
Vertical sensitivity	10mV/Div~10V/Div (with ×1 probe)
	0.5V/Div~10V/Div (with ×10 probe)
Vertical position	adjustable with indicator
Input impedance	>500KΩ
Max input voltage	80Vpp (by ×1 probe)
Coupling	DC
Trig modes	Auto,Norma,Single,None and Scan
Functionalities:	Automatic measurement: frequency,cycle,duty,Vpp,Vram,Vavg and DC voltage
	Precise vertical measurement with markers
	Precise horizontal measurement with markers
	Rising/falling edge trigger
	Trig level adjustable with indicator
	Trig sensitivity adjustable with indicator
	Hold/run feature
Test signal	Built-in 10Hz~1MHz (1-2-5 Step)
Waveform storage	Micro SD card
PC connection via USB	as Micro SD card reader
Upgrade	by bootloader via USB

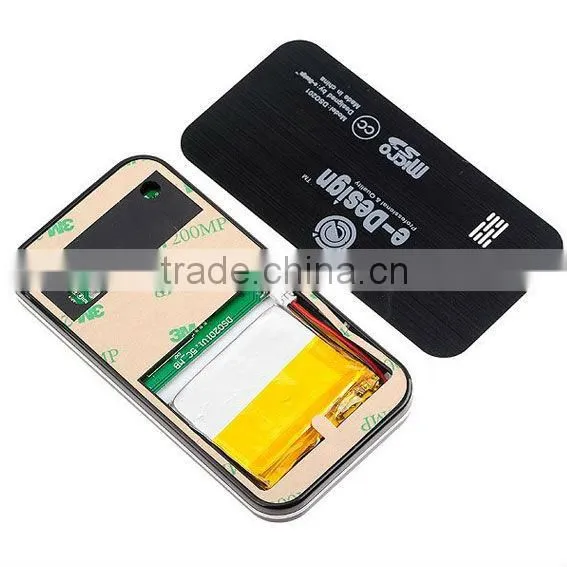

Power supply	3.7V Chargeable Lithium battery / USB
Dimension (w/o probe)	106mm X 55mm X 9.9mm
