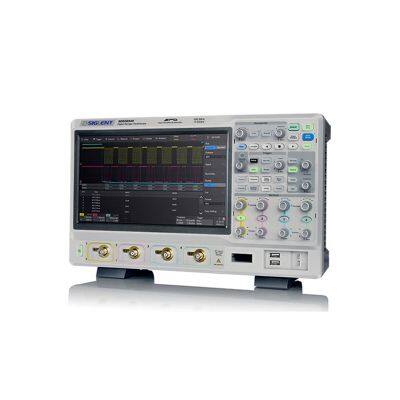

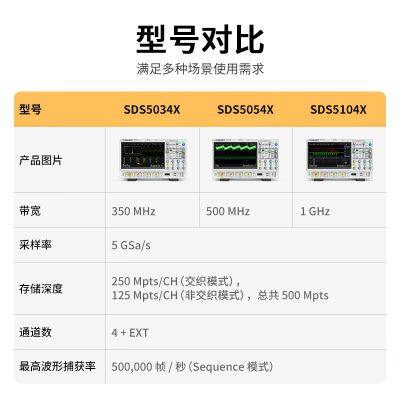

Help CenterSIGLENT SDS5034/SDS5054/SDS5104X Digital Oscilloscope, 4 Channels, 5G Sample Rate
Related Products
-
SIGLENT SDS804/814/824XHD Digital Storage 12-bit High-resolution OscilloscopeNegotiableMOQ: 1 Combo -
SIGLENT SDS2072/4/2102/4/2202/4/2352/4/2504XPlus Digital Oscilloscope, Four-channelNegotiableMOQ: 1 Combo
-
SIGLENT SDS2104/2204/2354/2504X HD Digital Oscilloscope, 12-bit High Resolution, 4 ChannelsNegotiableMOQ: 1 Combo
-
SIGLENT Probe PB470/PP510/SP3050A/CP4050/CP6030 Oscilloscope Probe/passive Probe/current Probe/differential ProbeNegotiableMOQ: 10 Pieces
-
SIGLENT SPD3303X, a Three-channel Programmable, Linearly Adjustable, Stable DC Power Supply With Three Output ChannelsNegotiableMOQ: 1 Combo

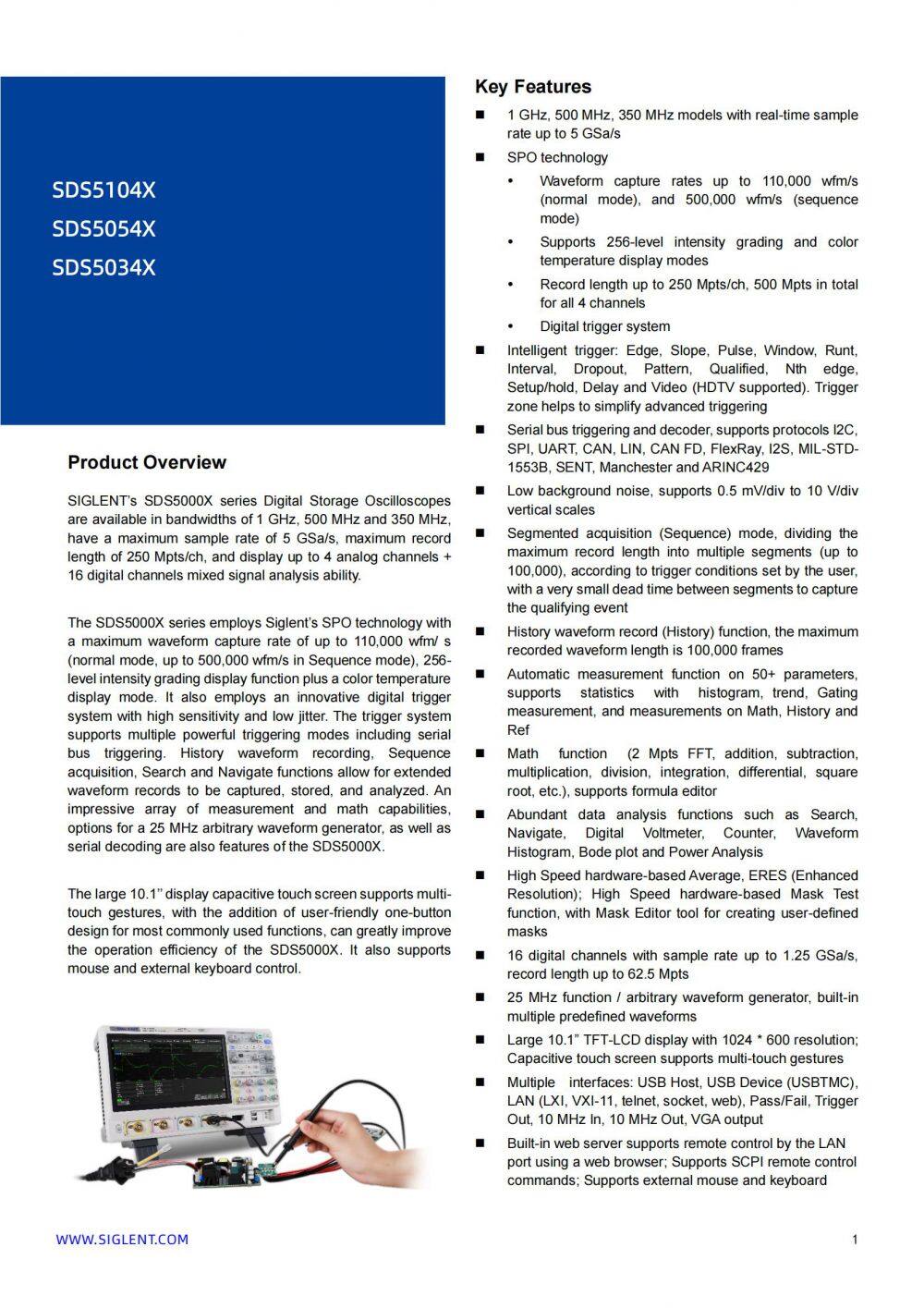

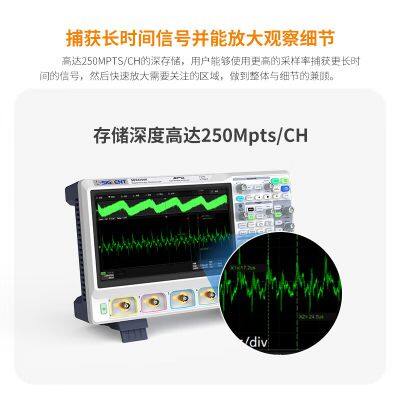

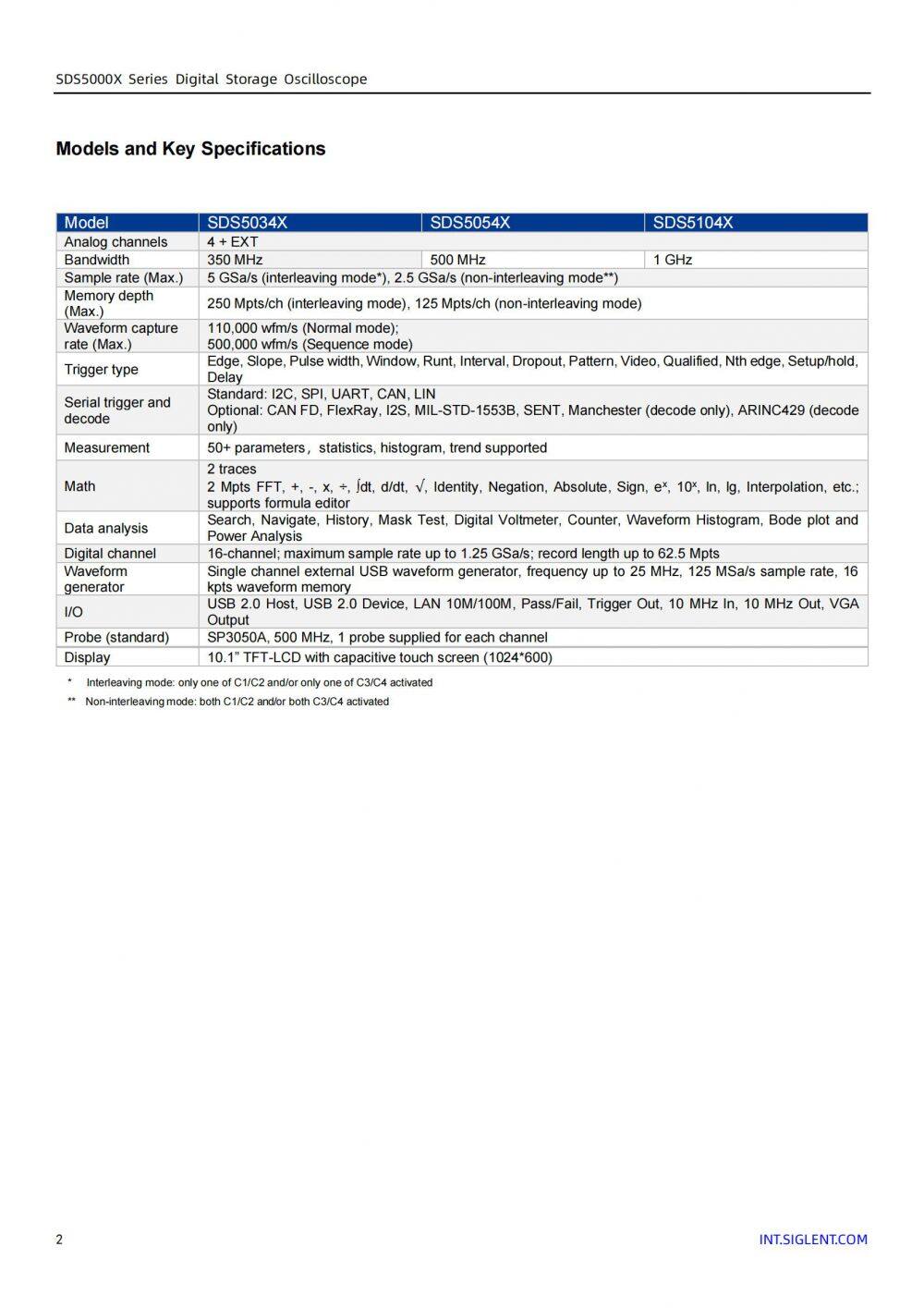

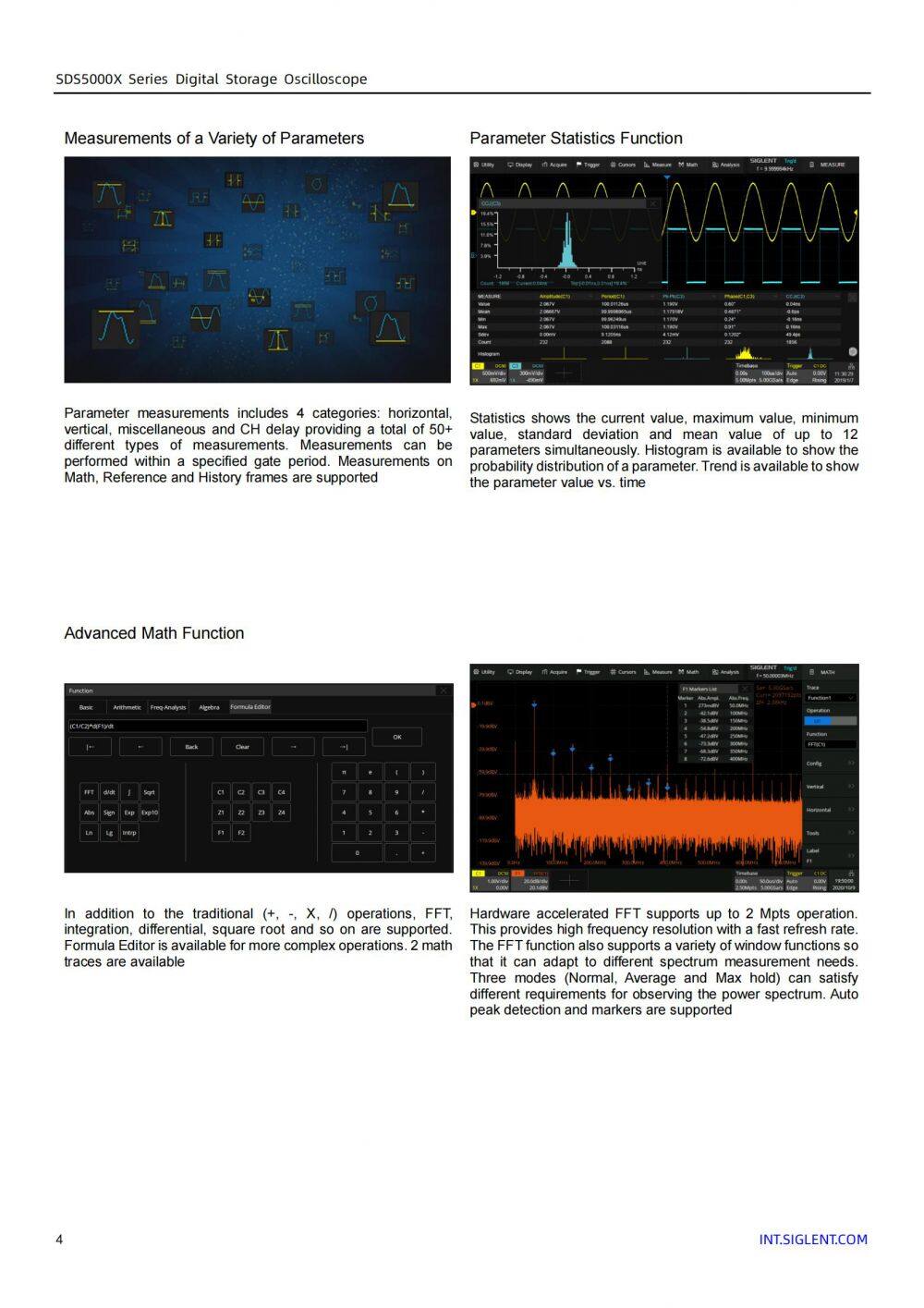

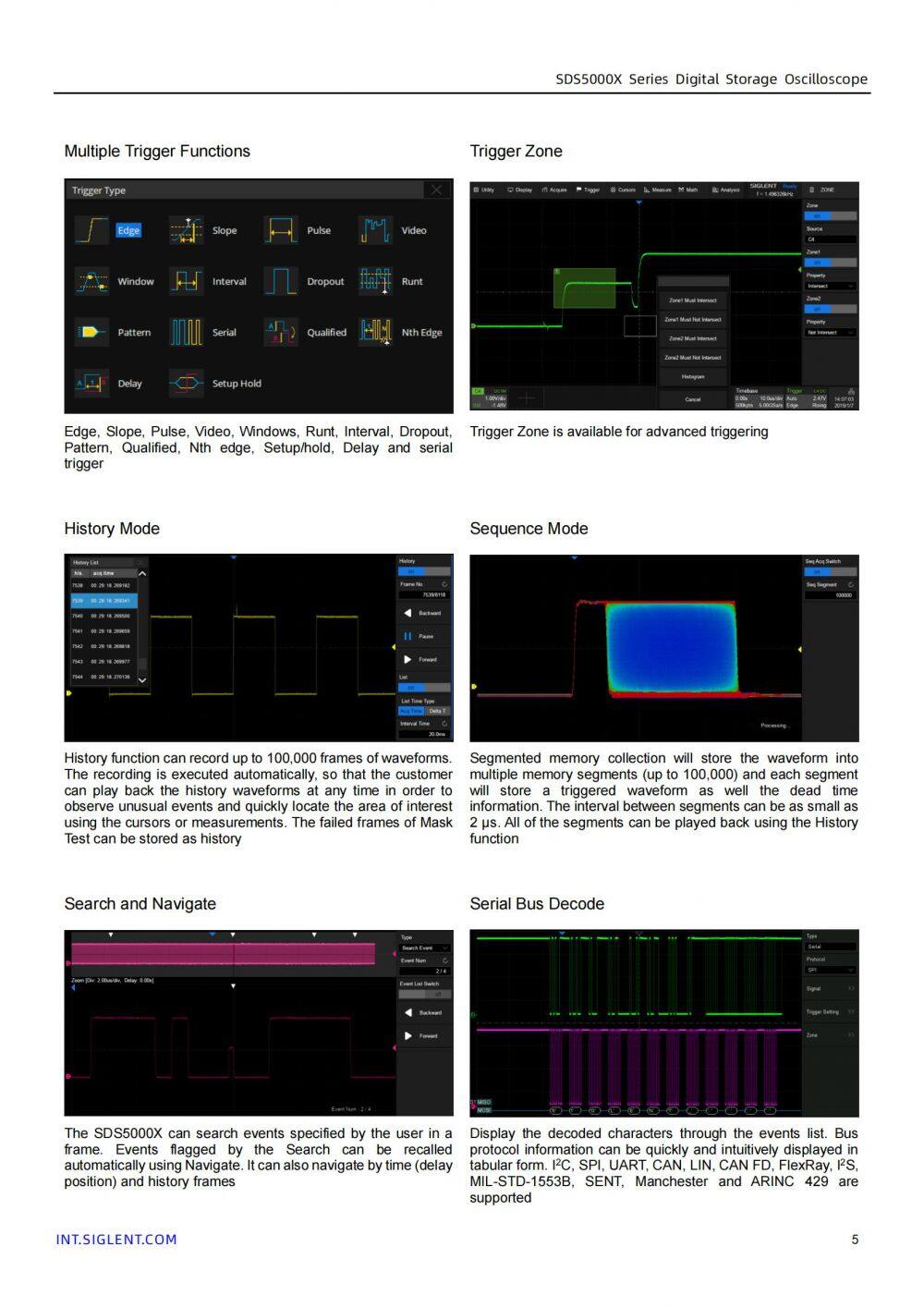

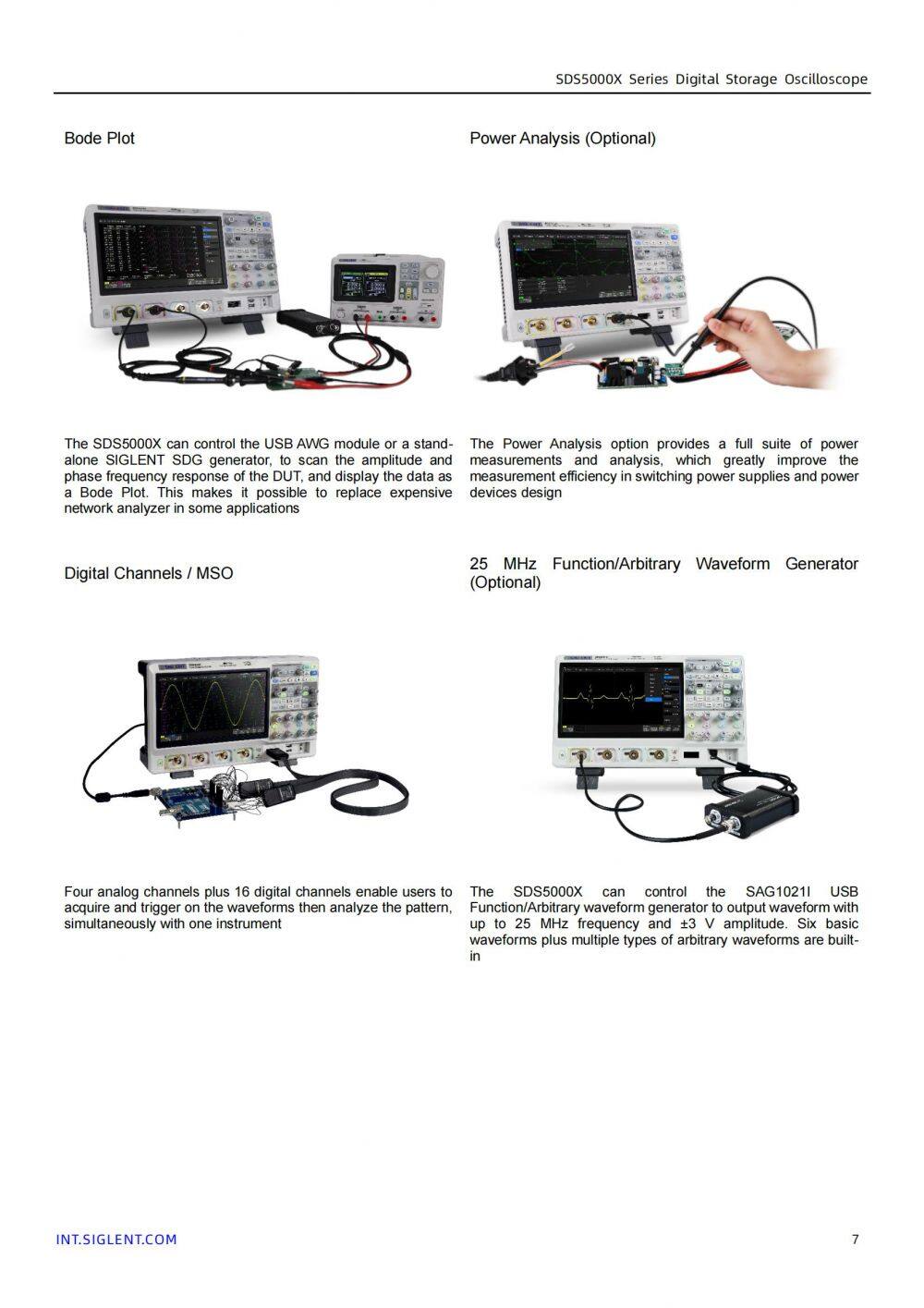

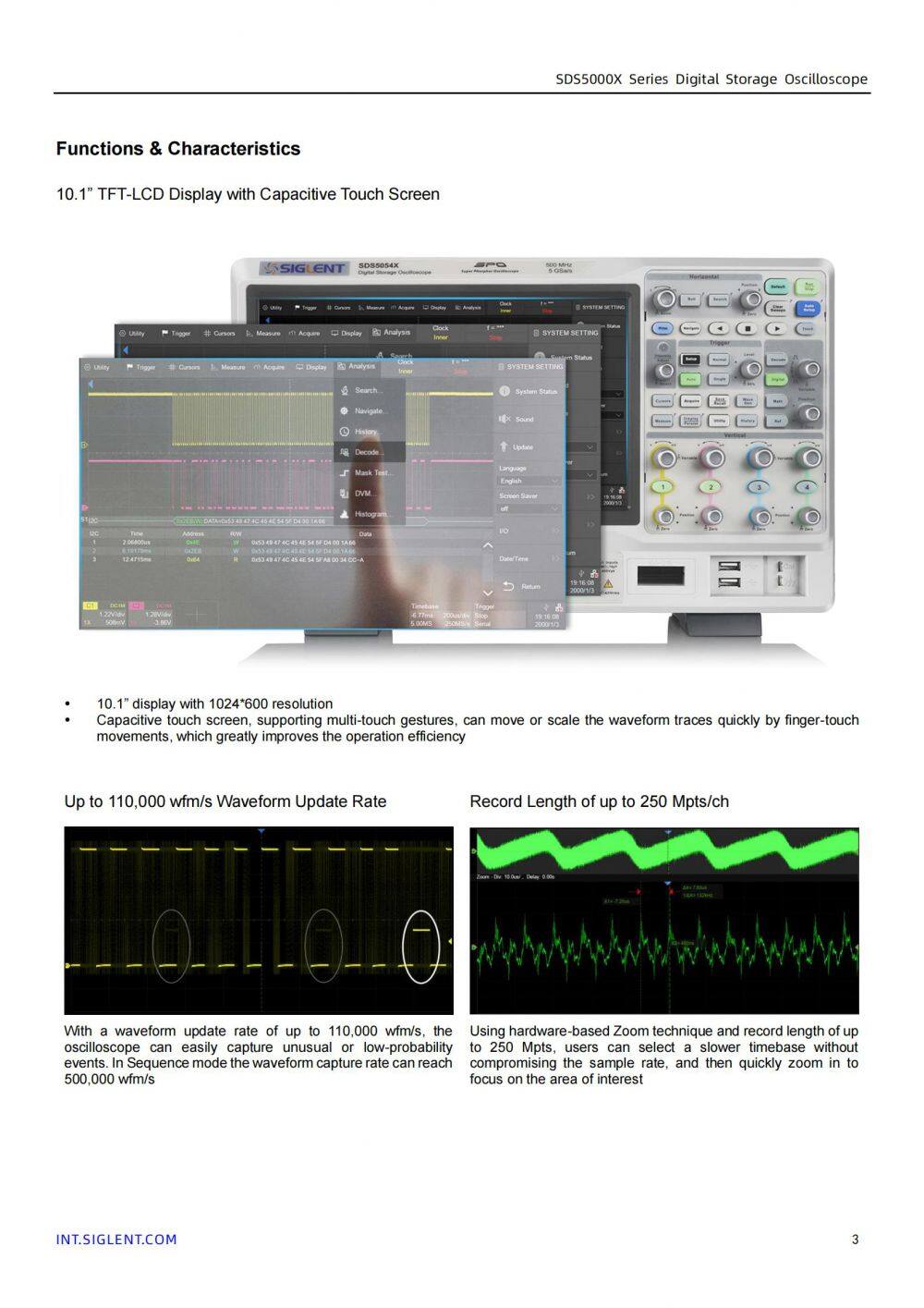

SIGLENT’s SDS5000X series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz and 350 MHz, have a maximum sample rate of 5 GSa/s, maximum record length of 250 Mpts/ch, and display up to 4 analog channels + 16 digital channels mixed signal analysis ability. The SDS5000X series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 110,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256- level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X. The large 10.1’’ display capacitive touch screen supports multitouch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X. It also supports mouse and external keyboard control.
Send Inquiry to This Supplier
