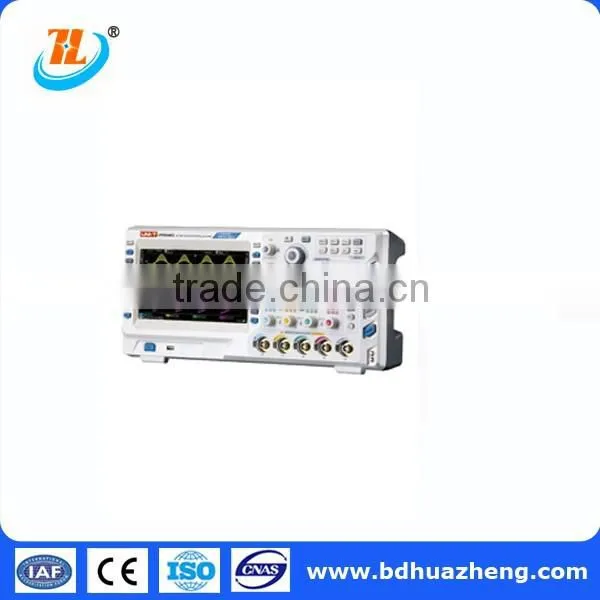

UPO5504CS 4 Channel Ultra Phosphor Analog Oscilloscope
|
Supplier of State Grid! IEC156 ISO 9001:2008 ASTM |
|
UPO5504CS 4 Channel Ultra Phosphor Analog Oscilloscope details:
1,Sample Rate up to 4GS/s;
2,Channels 2/4;
3,Bandwidth 200MHz,350MHz,500MHz;
4,Memory Depth 256Mpts(Standard);
5,Waveform Capture Rate up to 200,000wfms/s;
6,With 256 level intensity grading display;
7,Up to 300,000 frames for Waveform Record ,Replay;
8,Support serial bus trigger and decoding;
9,9 inches, TFT LCD,WVGA(800*480);
10,Interface:USB Host,LAN,VGA,Pass/Fail,10MHz input/output.
UPO5504CS 4 Channel Ultra Phosphor Analog Oscilloscope parameter:
| Models | UPO5504CS |
| Bandwidth | 500 MHz |
| Channels | 4 |
| Sample Rate | 4GS/s(Single-channel),2GS/s(Dual-channel) |
| Max. Memory Depth | 256Mpts(Single-channel),128Mpts(Dual-channel) |
| Waveform Capture Rate | 200,000wfms/s |
| Time Base Scale | UPO550X/UPO535X:1ns~1000s;UPO520X:2 ns~1000s |
| Input Coupling | (1MΩ±1%)//(14pF±3pF);(50Ω±2%)//(14pF±3pF) |
| Vertical Scale | 1 mV/div ~ 5 V/div(1 MΩ);1 mV/div ~ 1 V/div(50 Ω) |
| DC Gain Accuracy | ±3% |
| Waveform Record | Max. 300,000 Frames |
| Trigger | Edge,Pulse Width,Runt,Nth Edge,Slope,Video,Pattern,RS232/UART,I2C,SPI,CAN,USB,FlexRay |
| Bus Decode | Standard:Parallel;Optional:RS232/UART,I2C,SPI,CAN,USB,FlexRay |
| Waveform Operation | A+B,A-B,A×B,A/B,FFT,Editable Advanced |
| Auto Measurement |
Peak-Peak Value, Amplitude, Maximum, Minimum, Top Value, Bottom Value, Mean, Average, Root Mean Square Value, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay 1->2, and Delay 2->1. |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter (Channels are selectable) |
| Standard Interface | USB-Host(×2), LAN, VGA Output, 10MHz Input/Output, AUX Output (TrigOut, GND, Pass/Fail) |
| General Characteristic | |
| Power | 100V~240VACrms, 45Hz~440Hz |
| Display | 9 inches, TFT LCD, WVGA(800×480) |
| Product Color | White and Gray |
| Product Net Weight | 4.4 Kg ± 0.2 Kg |
| Product Size (W×H×D) | 456mm × 218mm × 128mm |
| Standard Accessories | Probe×2/4(1×,10× switchable),Power Cord ,USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 1 PC |
| Standard Carton Measurement (L×W×H) | 445mm×395mm×275mm |
| Standard Carton Cross Weight | 7.2 Kg |
